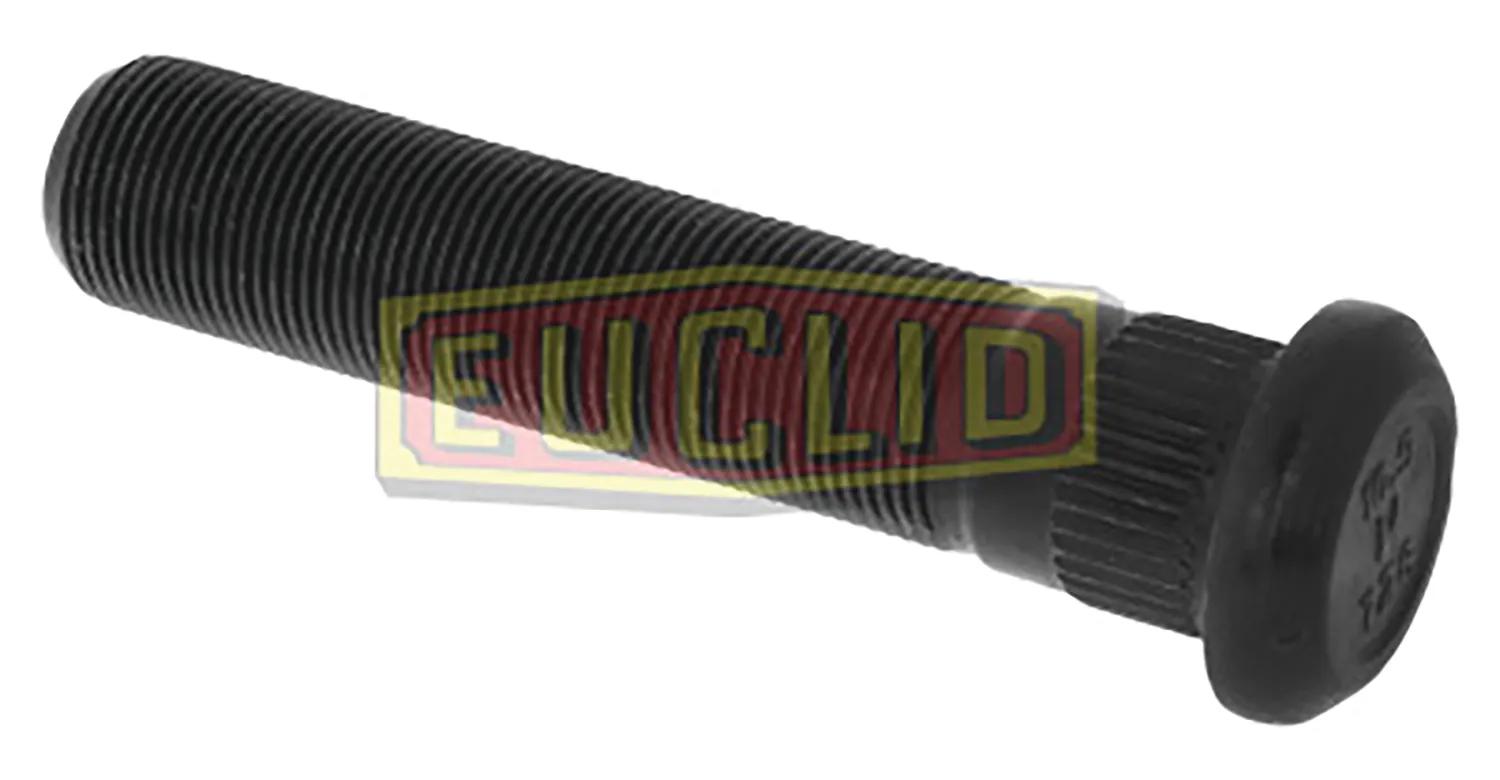

Serrated Stud, UHL: 4-5/16 in, Thread: 3-3/16 in x M22 x 1.5
#EUCE-11702
Specifications
| Body Diameter | 57/64 in (2.27 cm) |
| Body Length | 7/8 in (2.23 cm) |
| Head Diameter | 1-5/16 in (3.34 cm) |
| Head Thickness | 5/16 in (0.8 cm) |
| Length | 4-5/16 in (10.96 cm) |
| Length from Under Head-OAL | 4-5/16 in (10.96 cm) |
| Note | Grade 10.9 is the metric equivalent of Grade 8 |
| OEM # | Meritor 09-001728 |
| Quantity | 5 |
| Right or Left Hand Threads | RH |
| Serration | Serrated |
| Thread | M22 x 1.5 |
| Thread Diameter | 55/64 in (2.19 cm) |
| Thread Length | 3-3/16 in (8.1 cm) |
| Type | Round |
| Weight | 0.79 lbs (0.36 kg) |
