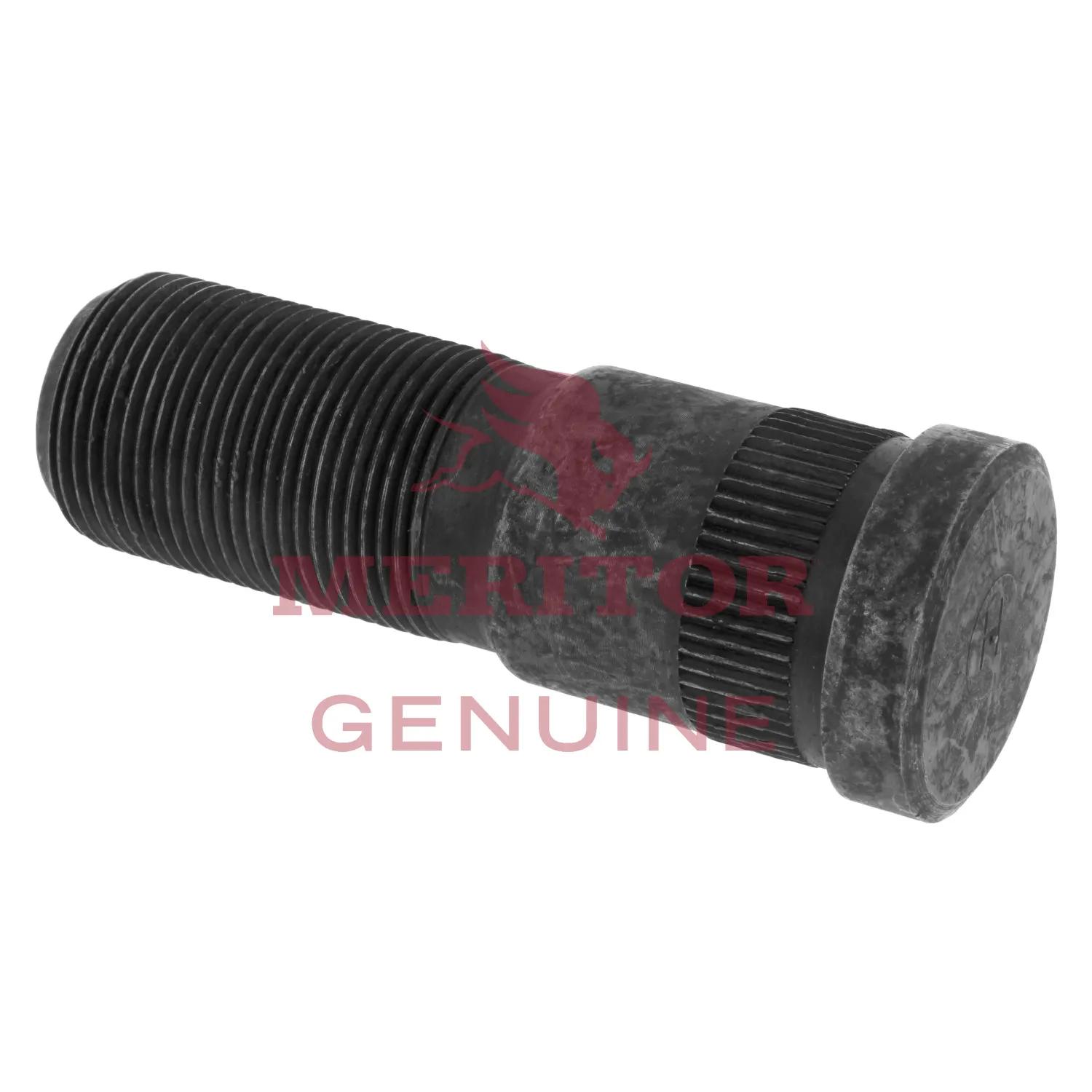

Serrated Stud, UHL: 4 in, Thread: 1-15/16 in x 1-5/16-12
#ROC20X1422
Specifications
| Body Diameter | 1-7/16 in (3.66 cm) |
| Body Length | 1-9/16 in (3.96 cm) |
| Height | 1/2 in (1.27 cm) |
| Hex | 1-3/4 po (4,45 cm) |
| Length | 10 in (25.4 cm) |
| Length from Under Head-OAL | 4 in (10.16 cm) |
| Package Quantity | 1 |
| Right or Left Hand Threads | RH |
| Serration | Serrated |
| Thread | 1-5/16-12 UN-2A |
| Thread Length | 1-15/16 in (4.93 cm) |
| Type | Round |
Interchanges & Equivalent parts:
| MER20X1422 |
| 20X1422-RI |
| 491651C1 |
| 90406-5009 |
| ATI20X1422 |
| TDA 20X1422 |
| TDA20X1422 |
| 13-1680R |
| 131680R |
| 8235-20X1422 |
| TP4327R |
| TWD20X1422 |
