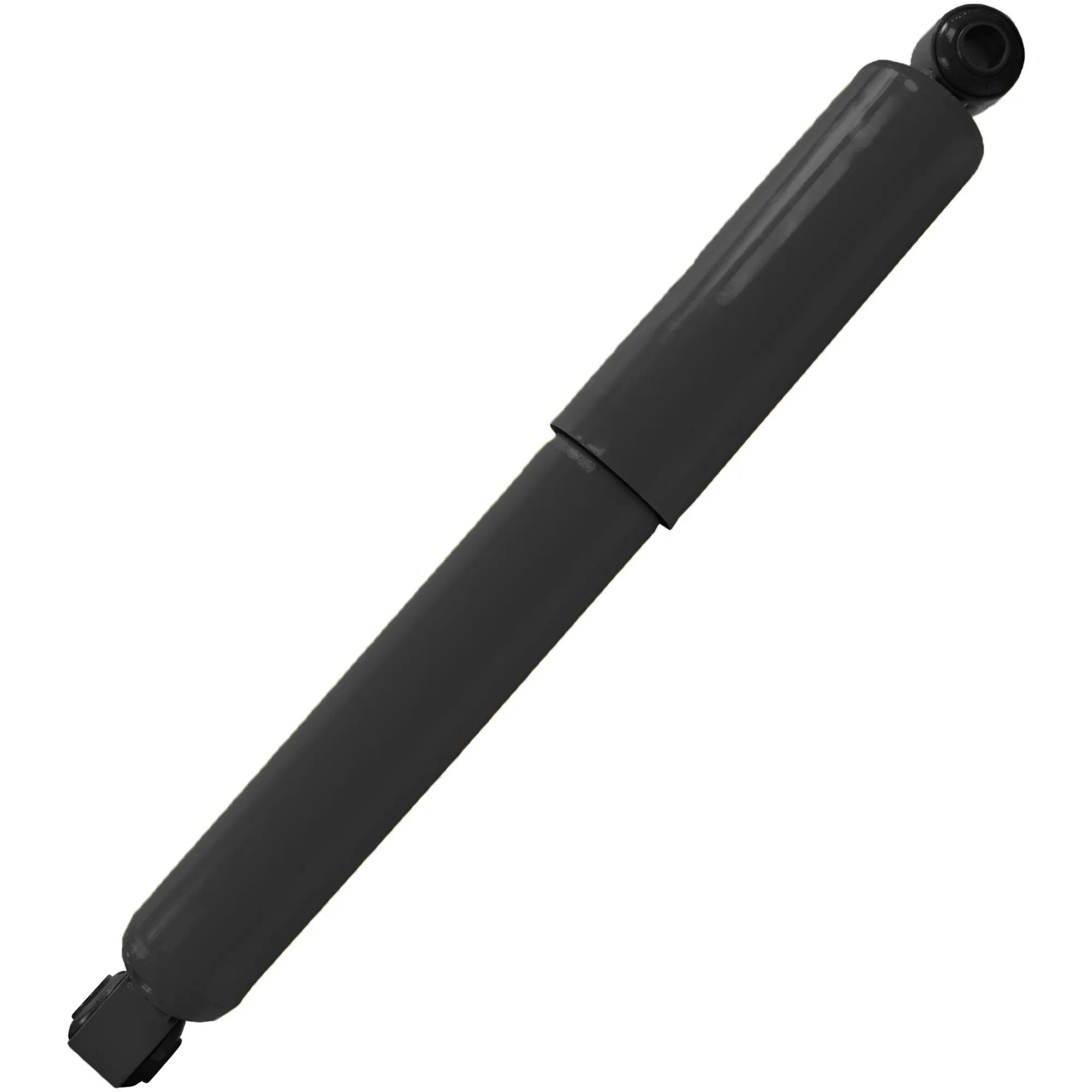

Shock, Comp: 12-1/8 in, Ext: 19-7/16 in, Stroke: 7-3/8 in
#MON66445
- 2" Or 2-3/8" (50.8 mm Or 60.3 mm) Reserve Tube (Where Required).
- -3/8" Bore: Lower Operating Pressure Than Standard 1" Bore Units.
- 5/8" (15.9 mm) Diameter Piston Rod (On Most Applications).
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required).
- 10-Stage Full Displaced Valving (On Most Applications).
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
| Compressed Length |
12-1/8 in (30.81 cm) |
| Extended Length |
19-7/16 in (49.38 cm) |
| Lower Mount |
LS54 |
| Stroke Inch |
7-3/8 in (18.75 cm) |
| Upper Mount |
LS54 |
| 3902993C2 |
| 3902993C3 |
| 3989717C1 |
| 3991991C1 |
