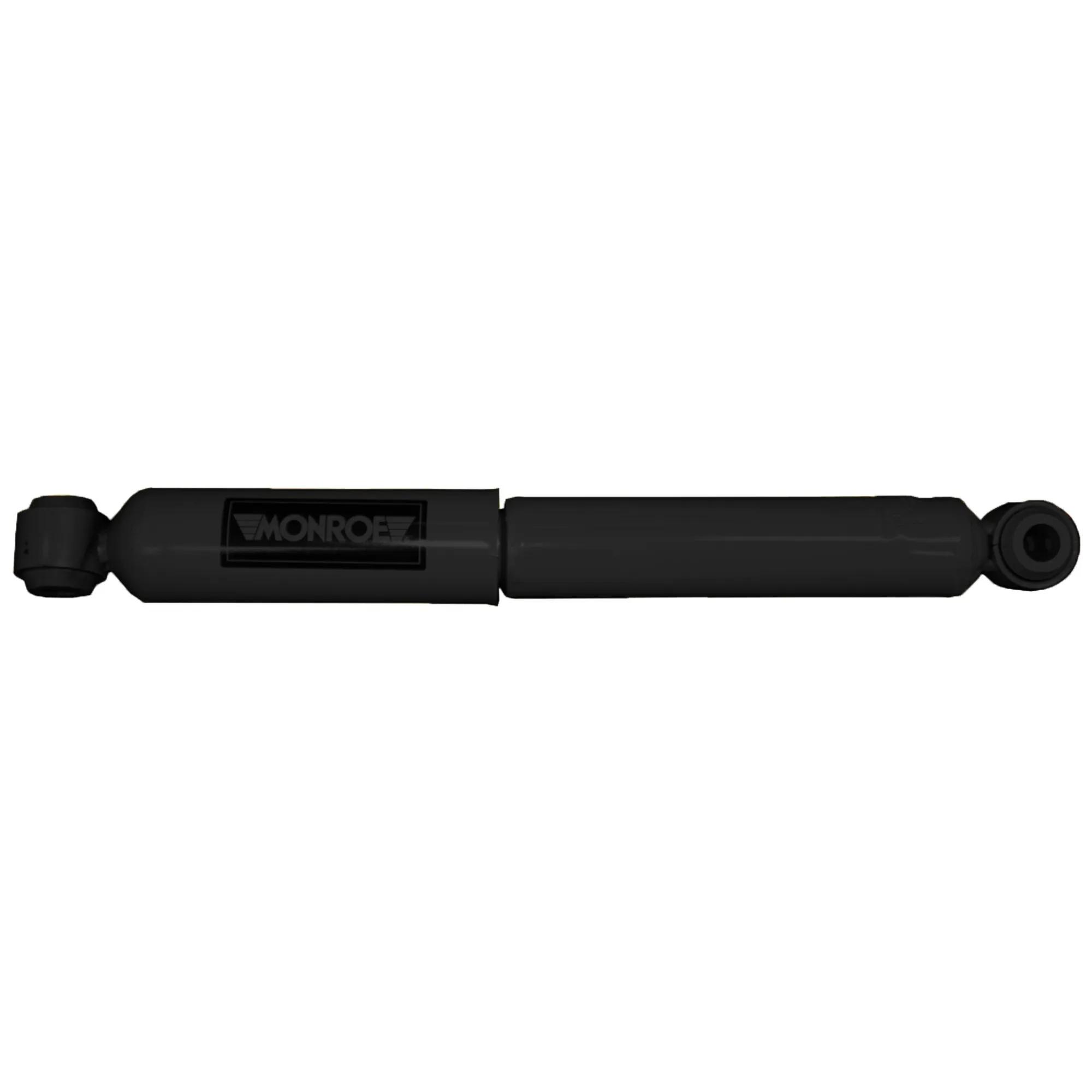

Shock, Comp: 12-11/64 in, Ext: 19-1/8 in, Stroke: 6-61/64 in
#MON66413
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 1-3/8 Inch (34.9 mm) Bore (On Most Applications)
- 5/8" (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2" Or 2-3/8" (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
| Compressed Length |
12-11/64 in (30.91 cm) |
| Extended Length |
19-1/8 in (48.59 cm) |
| Lower Mount |
L3 |
| Stroke Inch |
6-61/64 in (17.65 cm) |
| Upper Mount |
L3 |
| 66413 |
| M66413 |
| 562000T827 |
| 5620036D01 |
| 562100T810 |
