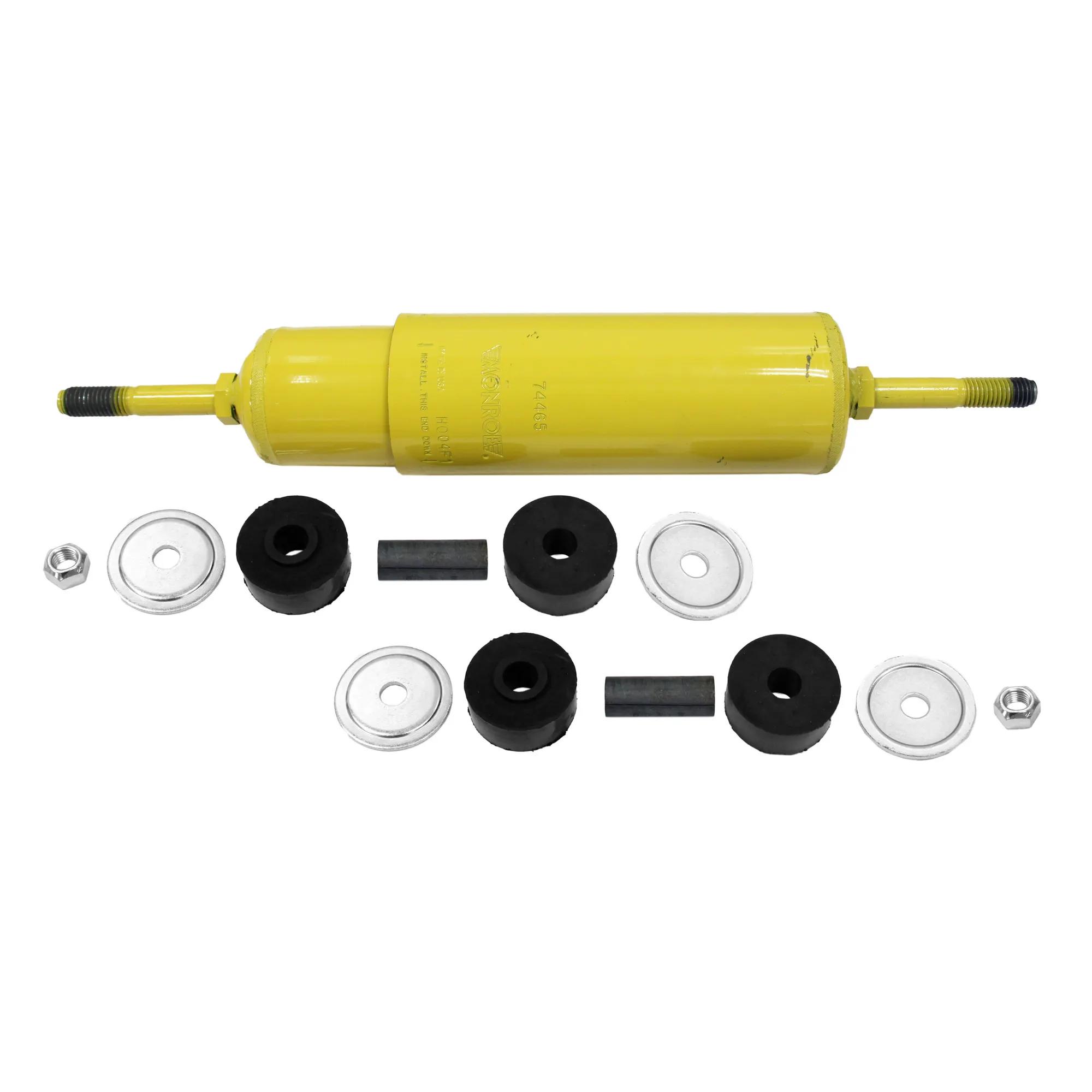

Shock, Comp: 12-49/64 in, Ext: 20-15/64 in, Stroke: 7-55/64 in
#MON74465
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Hardened 7/8" (22.23 mm) Diameter Piston Rod
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/4" (69.85 mm) Reserve Tube
- Large 1-3/4" (44.5 mm) Piston Bore
| Compressed Length |
12-49/64 in (32.44 cm) |
| Extended Length |
20-15/64 in (51.38 cm) |
| Lower Mount |
S6 |
| Stroke Inch |
7-55/64 in (19.96 cm) |
| Upper Mount |
S6 |
| 12L571 |
| M74465 |
| 152959 |
| 680671 |
| 74421 |
