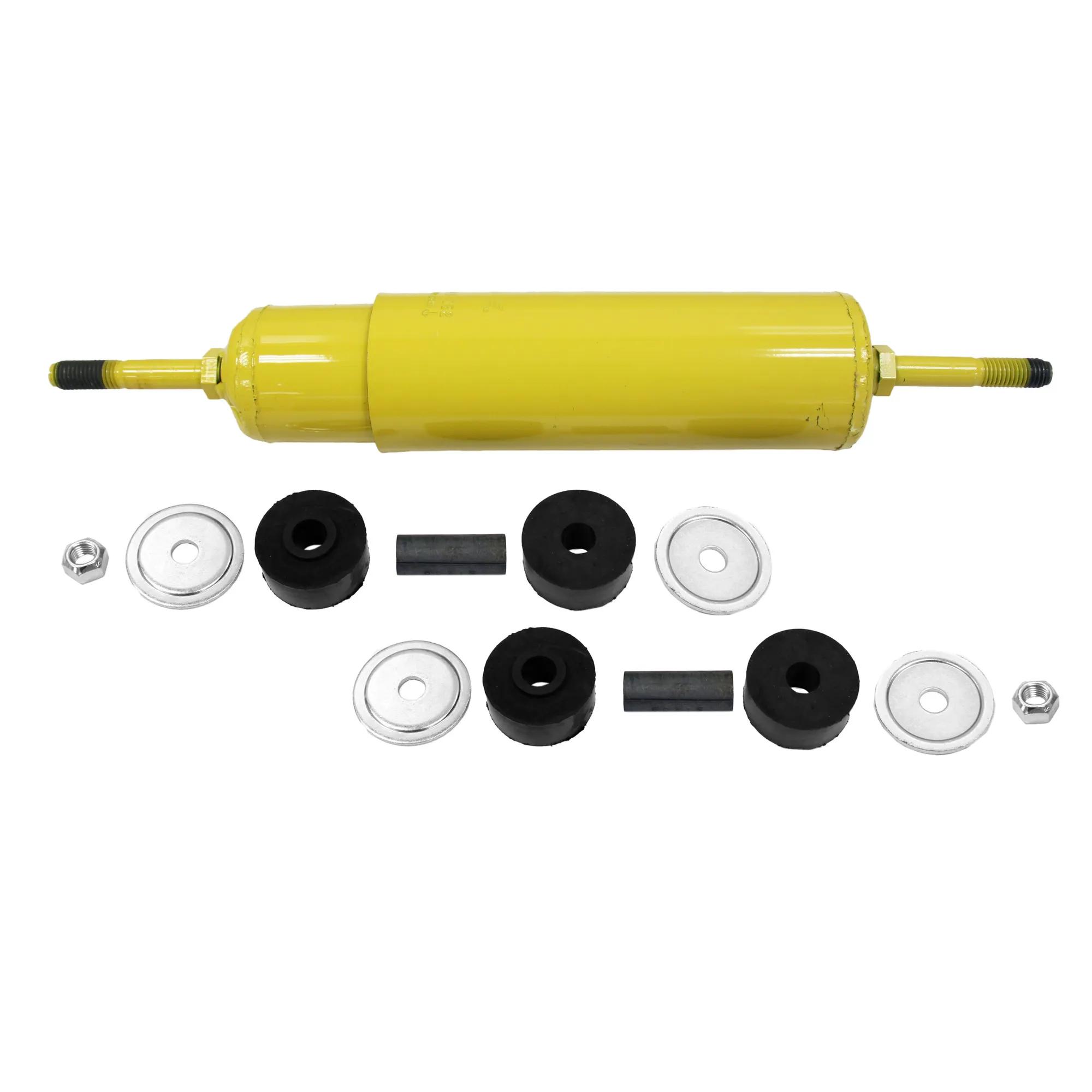

Shock, Comp: 13-21/32 in, Ext: 22-5/64 in, Stroke: 8-13/16 in
#MON74462
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Hardened 7/8" (22.23 mm) Diameter Piston Rod
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/4" (69.85 mm) Reserve Tube
- Large 1-3/4" (44.5 mm) Piston Bore
| Compressed Length |
13-21/32 in (34.7 cm) |
| Extended Length |
22-5/64 in (56.08 cm) |
| Lower Mount |
S6 |
| Parts Pack |
MONP1418 |
| Stroke Inch |
8-13/16 in (22.38 cm) |
| Upper Mount |
S6 |
| 203398 |
| 902140SP2 |
| 902141SP1 |
| 902517 |
