2 POINTS

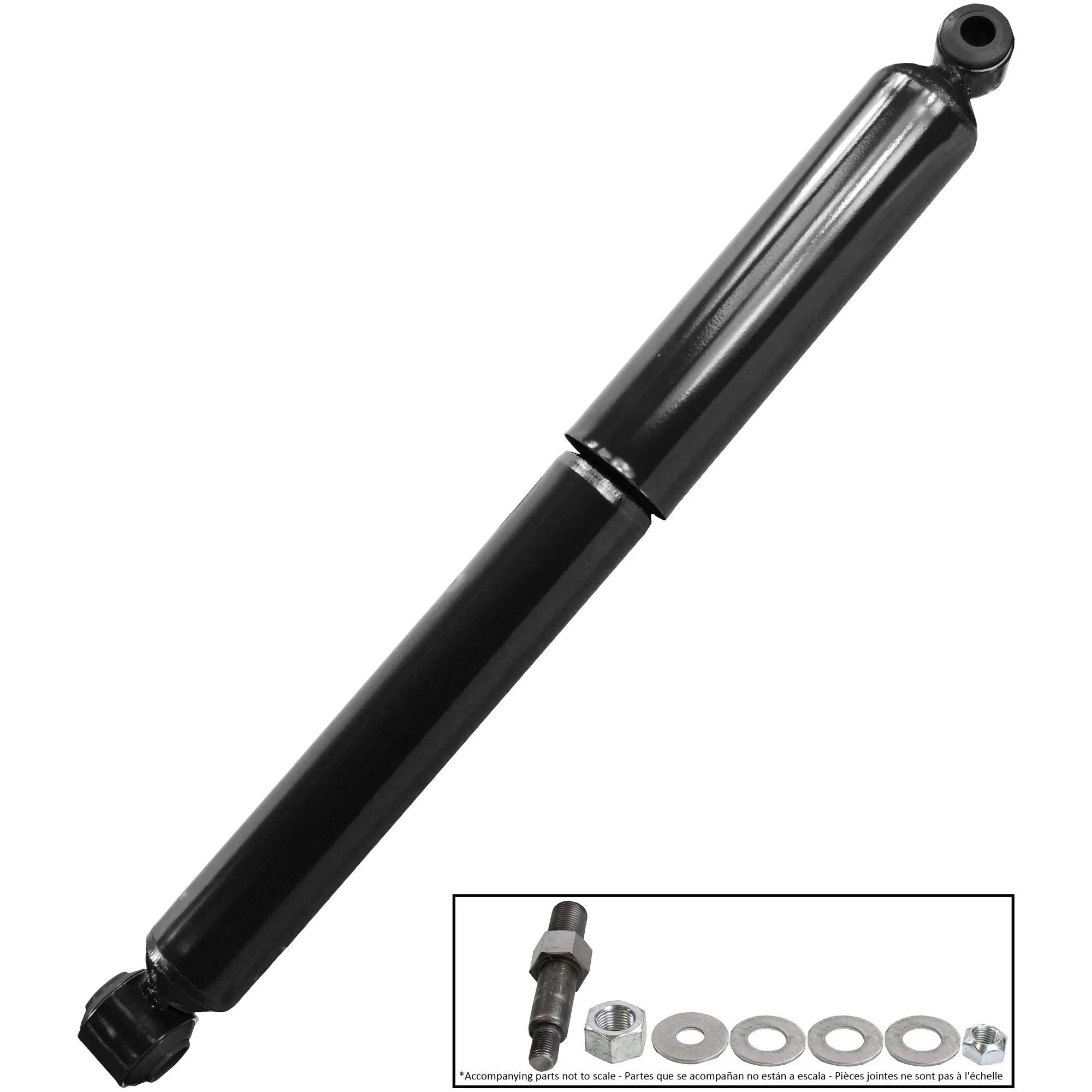

Shock, Comp: 13-51/64 in, Ext: 21-1/4 in, Stroke: 7-29/64 in
#MON65527
Features & Benefits
- Single-Lip, Low-Friction Oil Seal
- Large 1-3/4" (44.5 mm) Piston Bore
- Hardened 23/32" (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Patented Unique Hydraulic Rebound Lockout (When Required)
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2-3/8" (60.3 mm) Reserve Tube
Specifications
| Compressed Length | 13-51/64 in |
| Extended Length | 21-1/4 in |
| Lower Mount | LS57 |
| Stroke Inch | 7-29/64 in |
| Upper Mount | LS53 |
Interchanges & Equivalent parts:
| 65527 |
| M65527 |
| 3609178C1 |
| 3613984C1 |
| 3660548C1 |
| 3660549C1 |
| 65992001 |
| 65992002 |
| 659921 |
| 659922 |
| 85955 |
