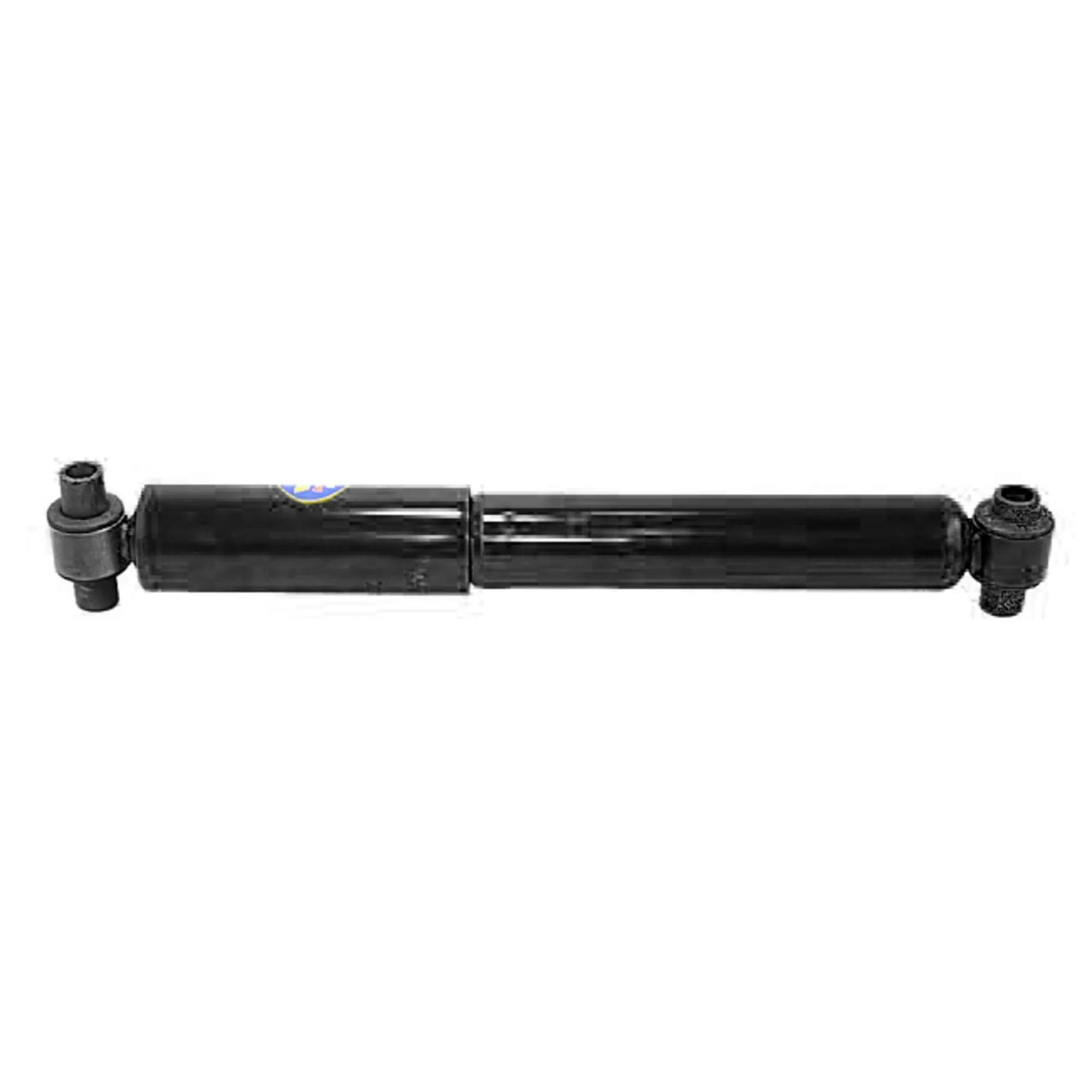

Shock, Comp: 14-45/64 in, Ext: 22-51/64 in, Stroke: 8-3/32 in
#MON557046
Features & Benefits
- 2" Or 2-3/8" (50.8 mm Or 60.3 mm) Reserve Tube (Where Required).
- 1-3/8" Bore: Lower Operating Pressure Than Standard 1" Bore Units
- 5/8" Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life. On Non-Dust Shield Units Only
- Resistance & Arc-Welded Mounts, Provide A 9,000lbs (4,082 Kg) Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- 10-Stage Full Displaced Valving (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
Specifications
| Compressed Length | 14-45/64 in (37.34 cm) |
| Contents | Shock |
| Extended Length | 22-51/64 in (57.91 cm) |
| Lower Mount | LS60 |
| Stroke Inch | 8-3/32 in (20.55 cm) |
| Upper Mount | LS59 |
