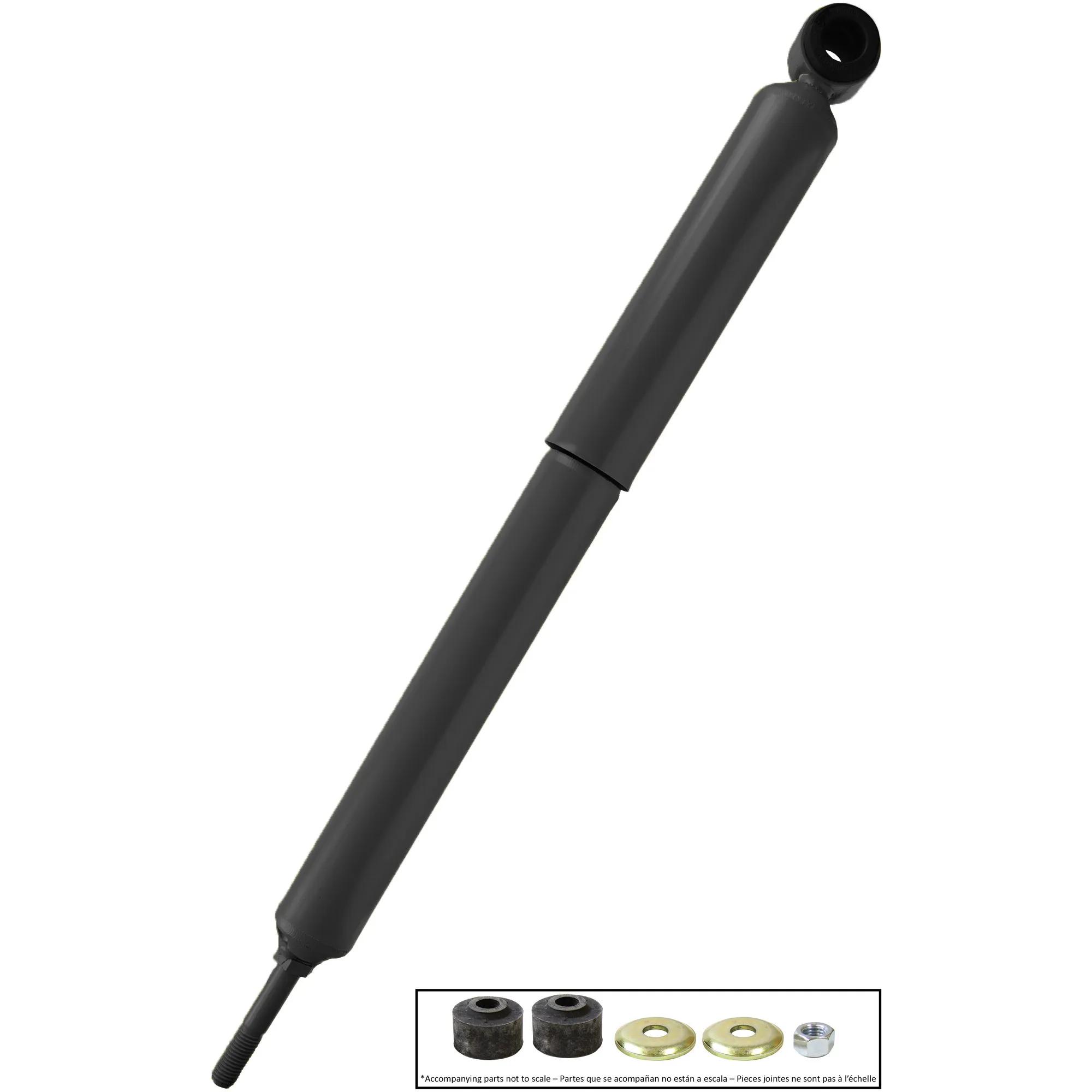

Shock, Comp: 15-1/2 in, Ext: 25-1/4 in, Stroke: 9-3/4 in
#MON66966
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 1-3/8 Inch (34.9 mm) Bore (On Most Applications)
- 5/8" (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2" Or 2-3/8" (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
| Compressed Length |
15-1/2 in (39.37 cm) |
| Extended Length |
25-1/4 in (64.14 cm) |
| Lower Mount |
S6 |
| Parts Pack |
MONP1071 & MONP1231 |
| Stroke Inch |
9-3/4 in (24.77 cm) |
| Upper Mount |
L4 |
| M66966 |
| 66966 |
| 83353 |
| EUC83353 |
| 680283 |
| 3919930 |
| 600136MT |
| 665331 |
| 68028340Y |
| 727692 |
| AMS600136 |
| E83353 |
| K374131 |
| K37415 |
See more
