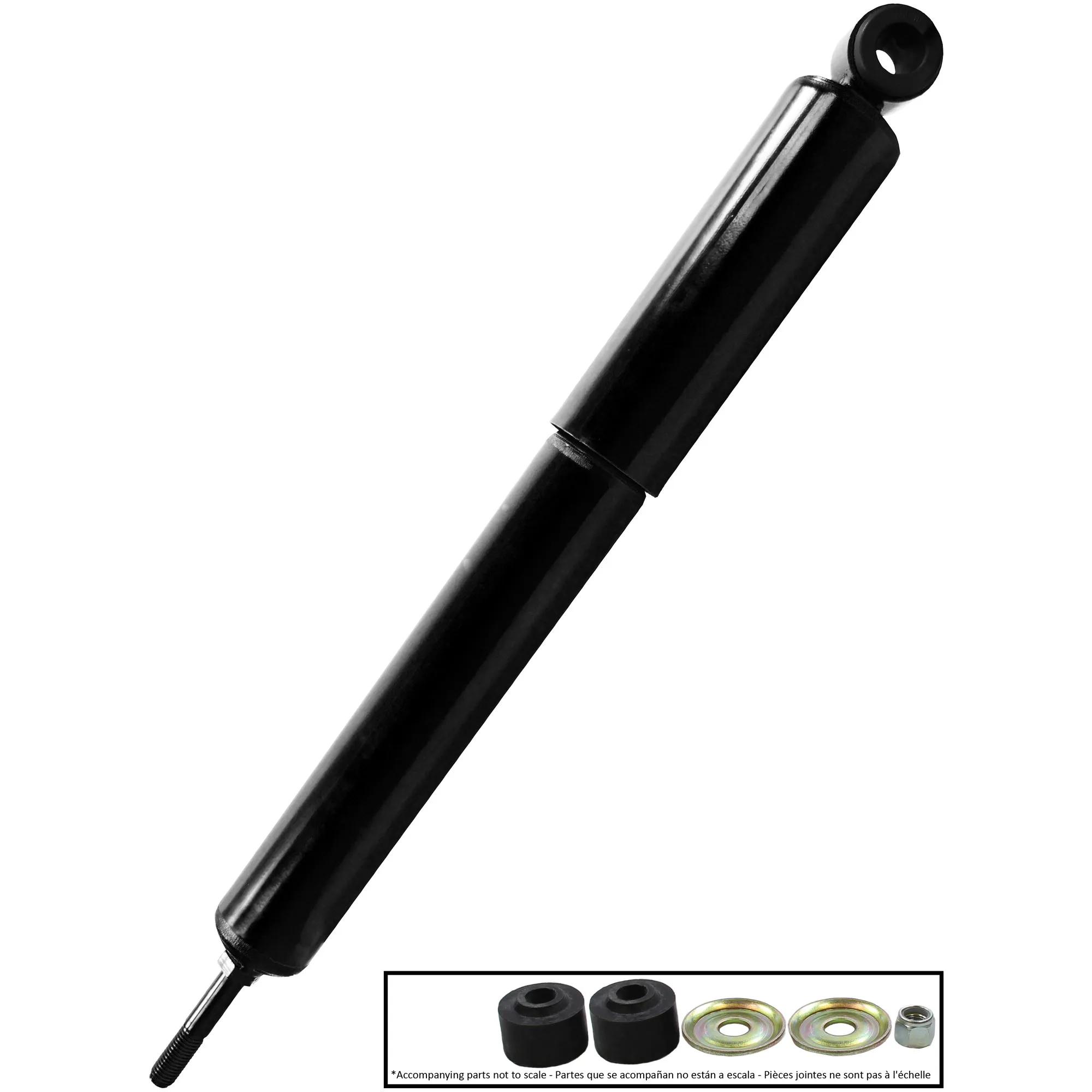

Shock, Comp: 15-1/8 in, Ext: 23-45/64 in, Stroke: 8-9/16 in
#MON65472
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- 2-3/8" (60.3 mm) Reserve Tube.
- Large 1-3/4" (44.5 mm) Piston Bore.
- Hardened 23/32" (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- 10-Stage Full Displaced Valving (On Most Applications)
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Single-Lip, Low-Friction Oil Seal.
| Compressed Length |
15-1/8 in (38.43 cm) |
| Extended Length |
23-45/64 in (60.2 cm) |
| Lower Mount |
S6 |
| Parts Pack |
MONP1482 |
| Stroke Inch |
8-9/16 in (21.74 cm) |
| Upper Mount |
L4 |
| 65472 |
| M65472 |
| 48170000208 |
| 48170000475 |
| 630136 |
| 630240 |
| 630251 |
| 85330 |
