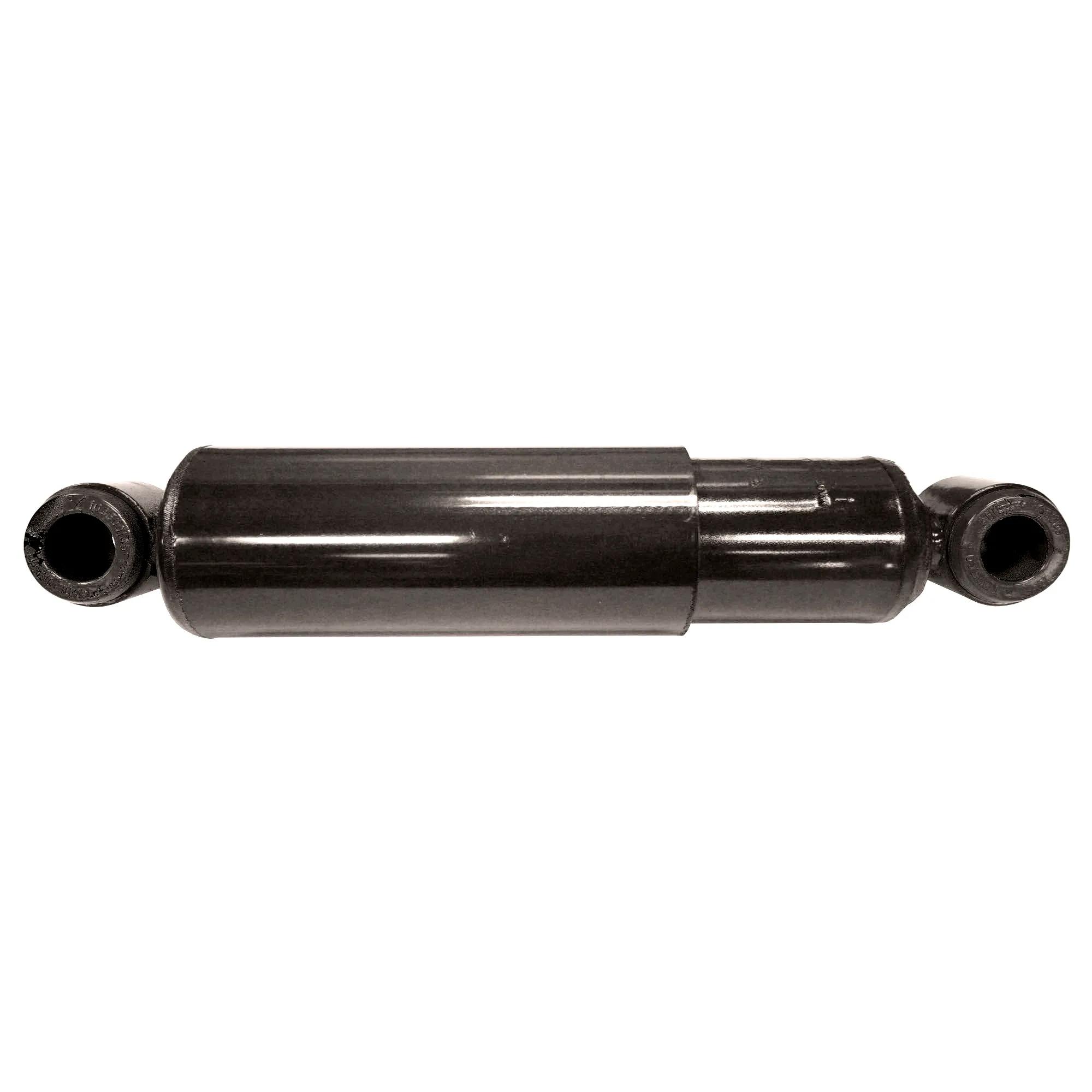

Shock, Comp: 15-29/64 in, Ext: 23-25/32 in, Stroke: 8-1/8 in
#MON74471
- Large 1-3/4" (44.5 mm) Piston Bore.
- Hardened 7/8" (22.23 mm) Diameter Piston Rod
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 10-Stage Full Displaced Valving (On Most Applications).
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction.
- 2-3/4" (69.85 mm) Reserve Tube.
| Compressed Length |
15-29/64 in (39.24 cm) |
| Extended Length |
23-25/32 in (60.4 cm) |
| Lower Mount |
L4 |
| Stroke Inch |
8-1/8 in (20.65 cm) |
| Upper Mount |
L4 |
| M74471 |
| 636710 |
| 2050516 |
| 481239 |
| 610513 |
| 614958 |
| 661733 |
| 690060 |
See more
