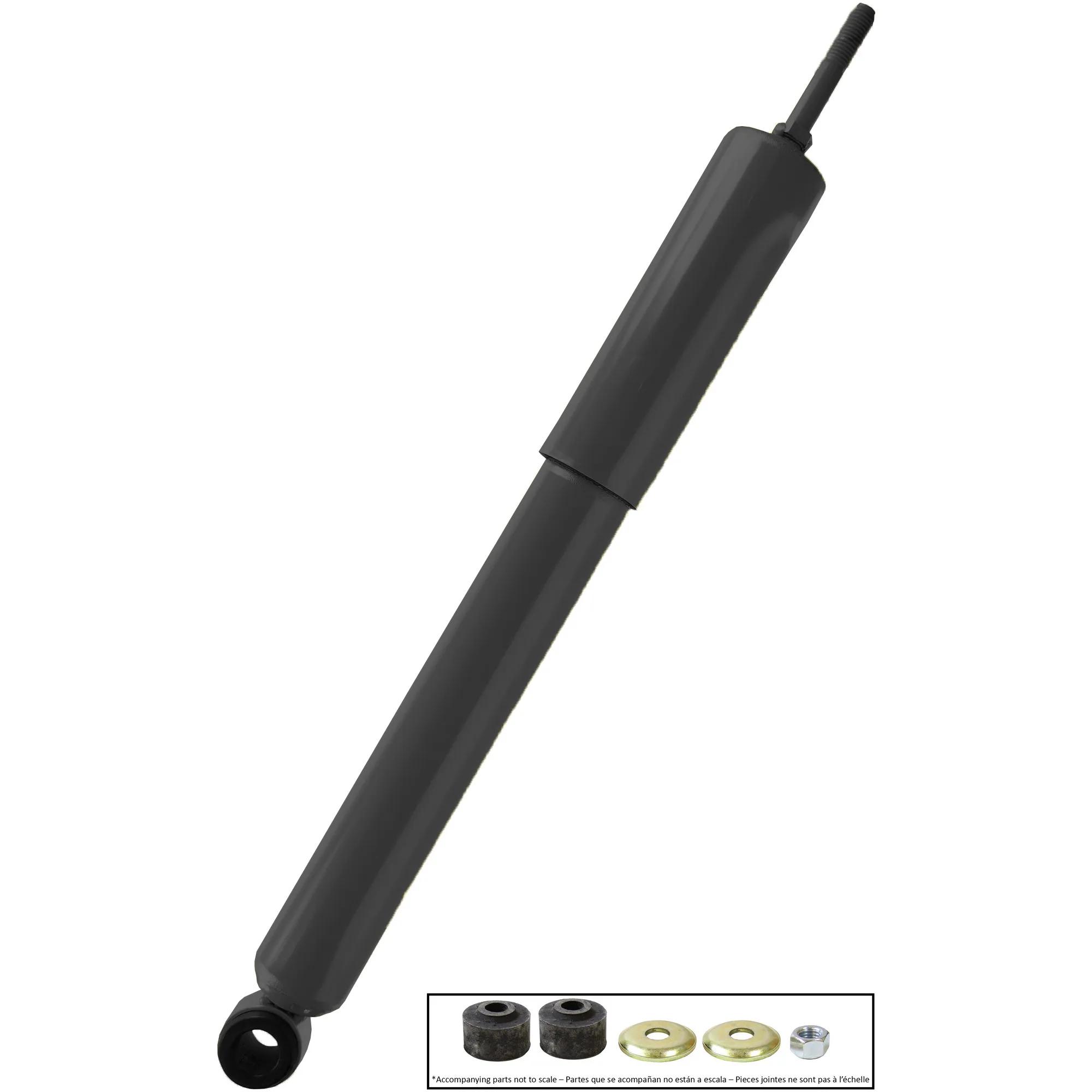

Shock, Comp: 16 in, Ext: 24-1/8 in, Stroke: 8-1/8 in
#MON65440
Features & Benefits
- Single-Lip, Low-Friction Oil Seal
- Large 1-3/4" (44.5 mm) Piston Bore
- Hardened 23/32" (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Patented Unique Hydraulic Rebound Lockout (When Required)
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2-3/8" (60.3 mm) Reserve Tube
Specifications
| Compressed Length | 16 in (40.64 cm) |
| Extended Length | 24-1/8 in (61.29 cm) |
| Lower Mount | Loop Type 1 in x 1-3/4 in |
| Parts Pack | MONP1482 |
| Stroke Inch | 8-1/8 in (20.65 cm) |
| Upper Mount | Stem 5/8 in x 11 in |
Interchanges & Equivalent parts:
| 65440 |
| M65440 |
| 22012131 |
| 3182842 |
| 97999902564 |
| 97999902585 |
| 97999902632 |
