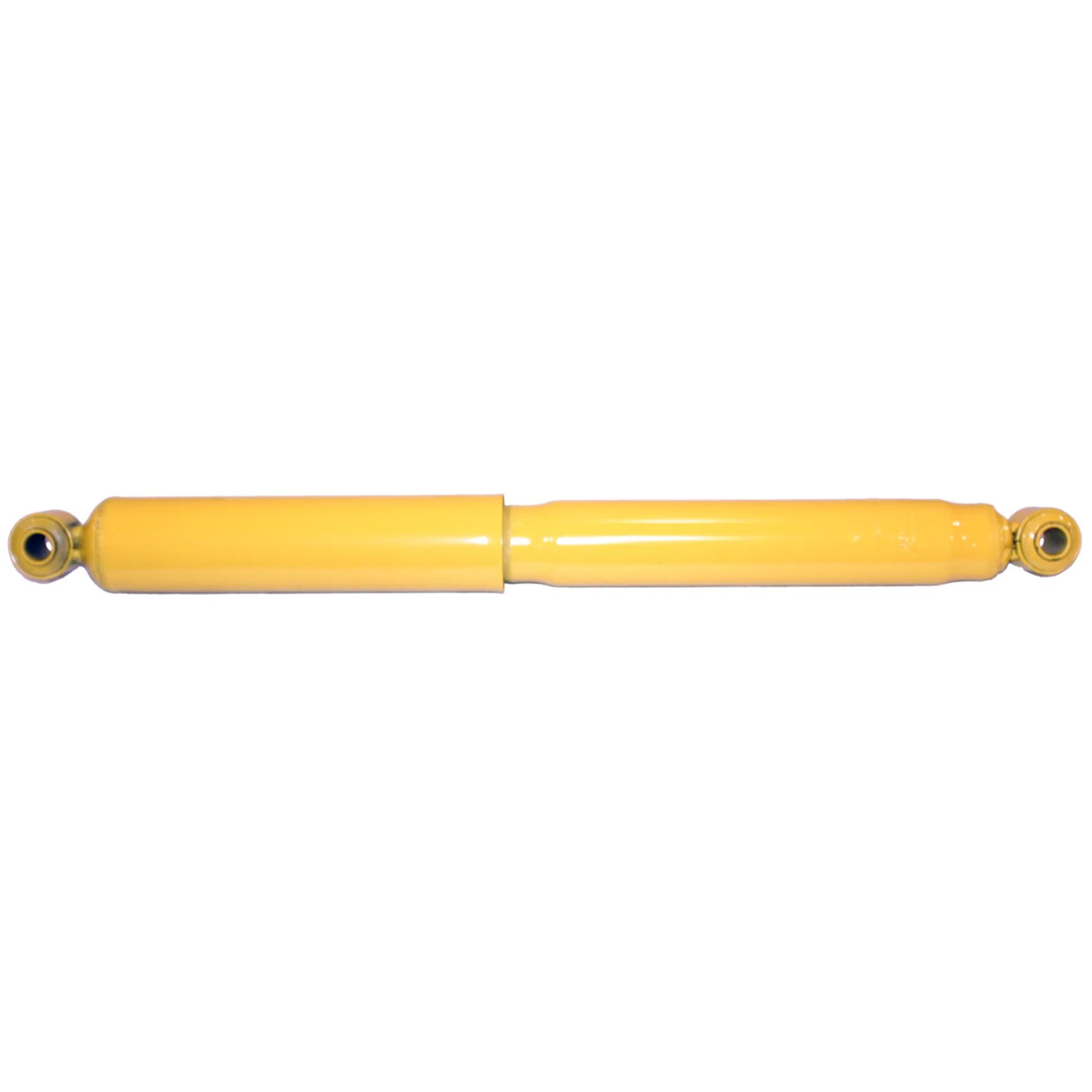

Shock, Comp: 16 in, Ext: 26-3/4 in, Stroke: 10-3/4 in
#MON66671
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 1-3/8 Inch (34.9 mm) Bore (On Most Applications)
- 5/8" (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2" Or 2-3/8" (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
| Compressed Length |
16 in (40.64 cm) |
| Dust Shield |
Yes |
| Extended Length |
26-3/4 in (67.95 cm) |
| Lower Mount |
LS54 |
| Stroke Inch |
10-3/4 in (27.31 cm) |
| Upper Mount |
LS54 |
| 66671 |
| M66671 |
| 14QK366 |
| 660226 |
| HSA5075 |
| 345-671 |
