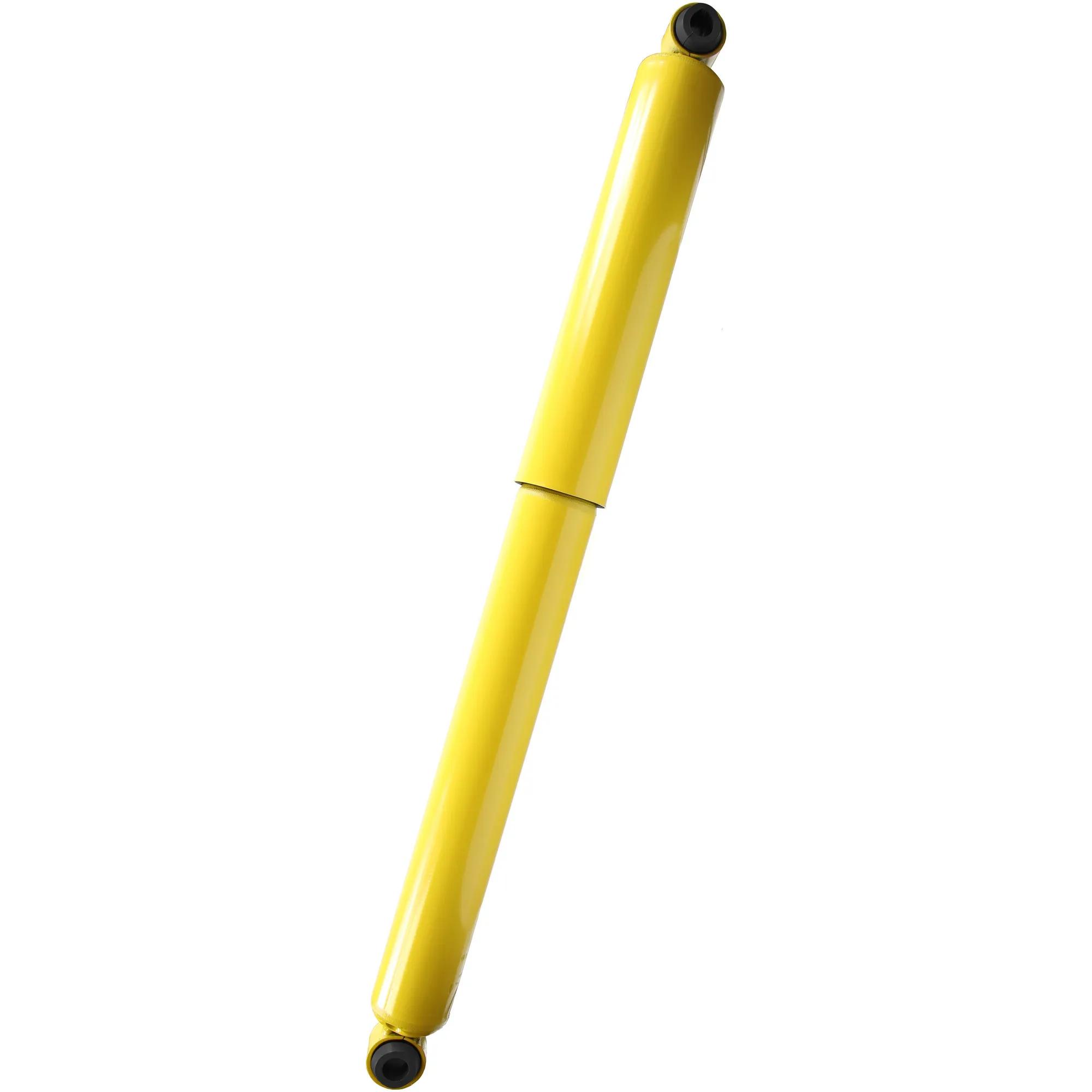

Shock, Comp: 18-3/4 in, Ext: 32 in, Stroke: 13-1/4 in
#MON65122
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- 2-3/8" (60.3 mm) Reserve Tube.
- Large 1-3/4" (44.5 mm) Piston Bore.
- Hardened 23/32" (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- 10-Stage Full Displaced Valving (On Most Applications)
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Single-Lip, Low-Friction Oil Seal.
| Compressed Length |
18-3/4 in (47.63 cm) |
| Extended Length |
32 in (81.28 cm) |
| Lower Mount |
L3 |
| Parts Pack |
MONP00119 |
| Stroke Inch |
13-1/4 in (33.66 cm) |
| Upper Mount |
L3 |
| 65122 |
| M65122 |
| 70315 |
| 85063 |
| F4HT18045DA |
| F5HZ18124C |
See more
