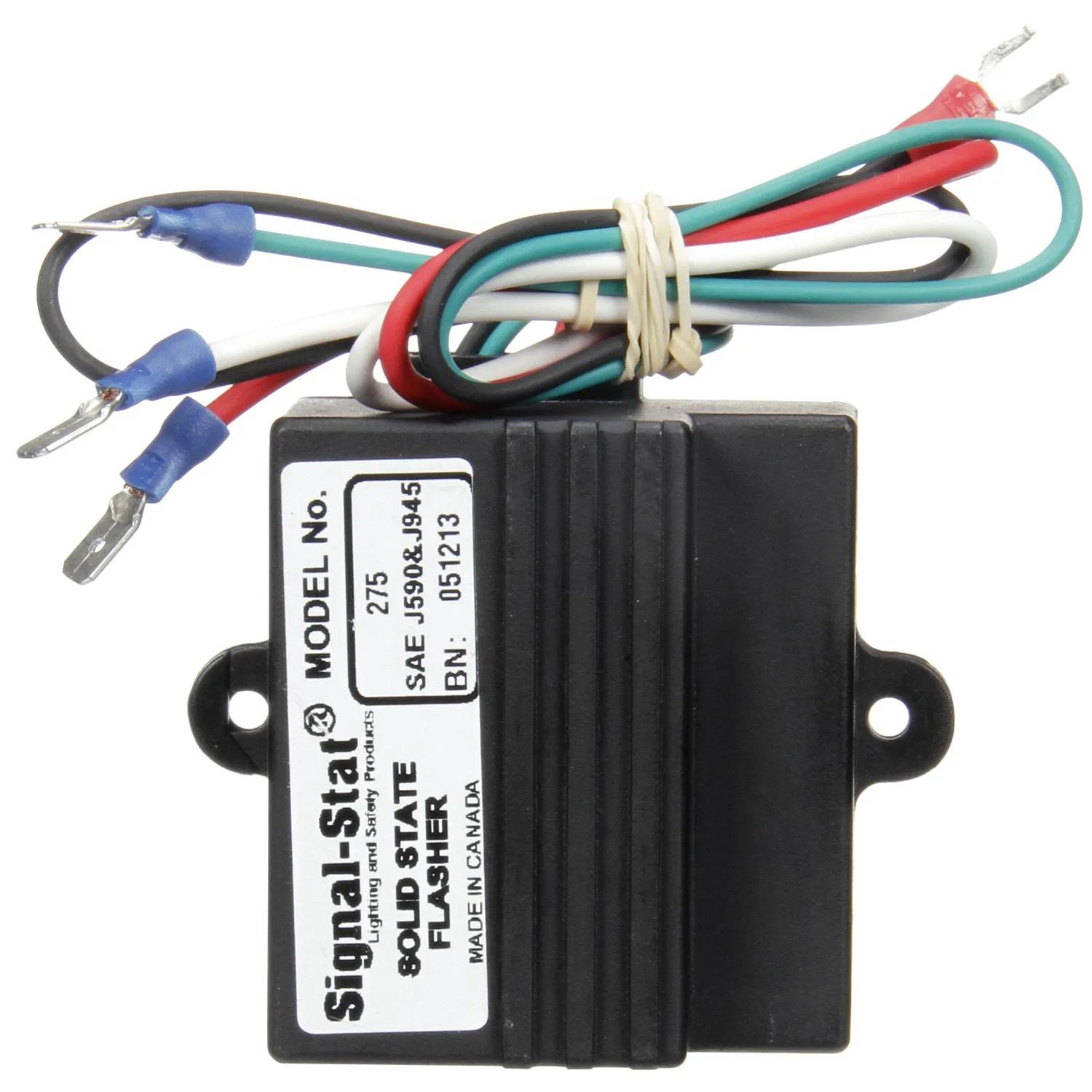

Signal-Stat, 20 Light Heavy-Duty Solid-State, Plastic Flasher Module, 80-100fpm, 12V, Hardwired, 3 Spade Terminal/Fork Terminal
#TRL275
Product Overview
Signal-Stat, 20 Light Heavy-Duty Solid-State, Plastic Flasher Module, 80-100fpm, 12V, Hardwired, 3 Spade Terminal/Fork Terminal
Specifications
| Amps | 20 amp to 40 amp |
| Audible (Y/N) | No |
| Contents | Flasher |
| Depth | 1-17/32 in (3.89 cm) |
| DOT Approved | Yes |
| Flasher Mechanism | Solid-State |
| Height | 2-49/64 in (7.04 cm) |
| Kit (Y/N) | No |
| Length | 2-49/64 in (7.04 cm) |
| Material | Plastic |
| Minimum Flash point | 80 FPM |
| Number of Lamps | 20 |
| Number Of Wires | 4 |
| Packaging | Boxed |
| Plug Side One | Hardwired |
| Plug Side Two | Spade Terminal |
| Product Type | Flasher Module |
| Series | Signal-Stat |
| Standard | FMVSS 108, DOT, SAE |
| VMRS Code | 034-006-029 |
| Volt | 12 V |
| Weight | 0.43 lb (0.2 kg) |
| Width | 2-37/64 in (6.55 cm) |
| Wire Gauge | 14 ga, 18 ga |
