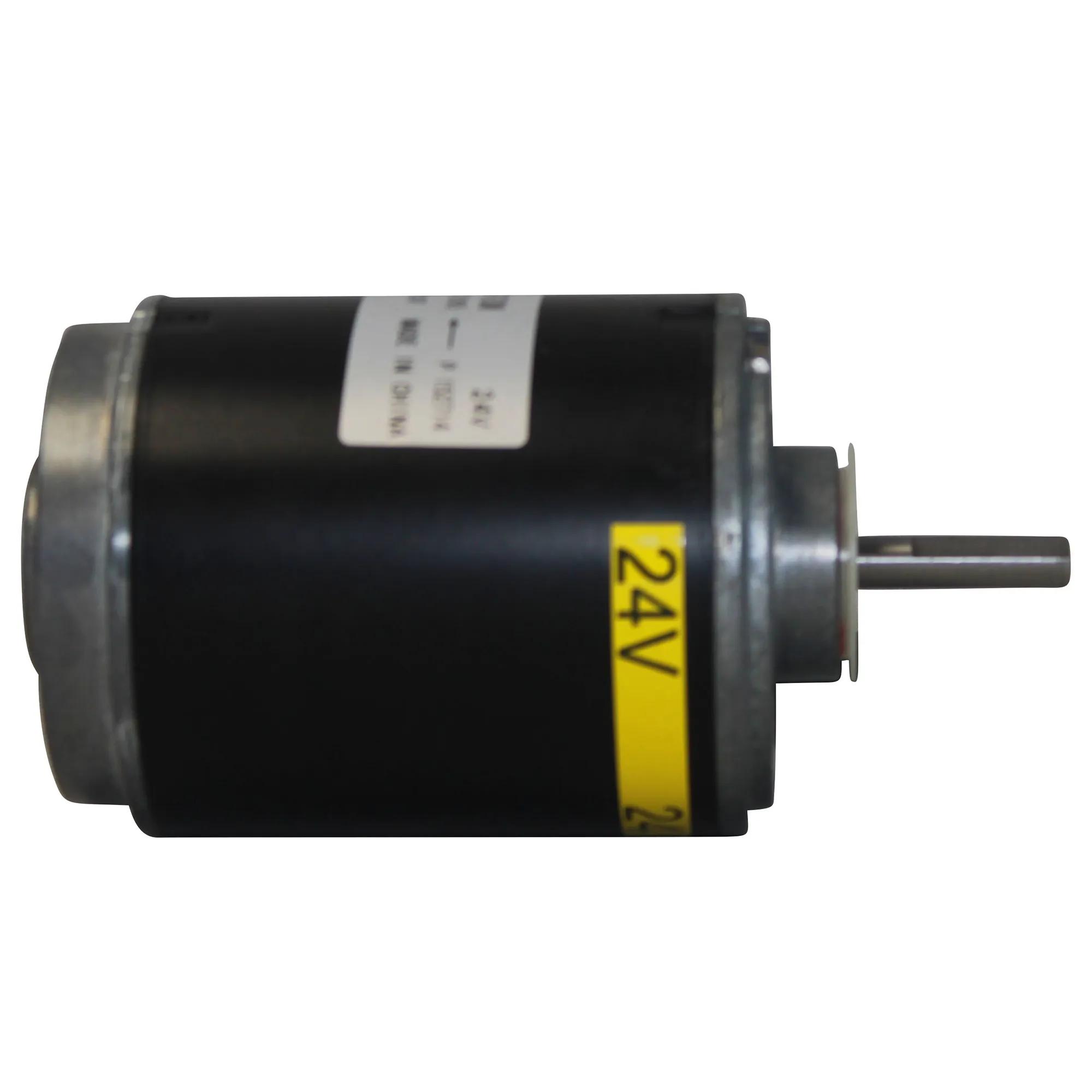

Single Shaft Motor, Shaft: 5/16 in, Motor: 4 in, CWSE
#BGS1075016
Specifications
| Amps | 7.5 A |
| Connector | Red/White A 60793-1 connector. black A 60799-2 connector |
| Diameter | 3-1/8 in |
| Diameter Range | 3 to 3.99 in |
| Length | 4-1/2 in |
| Motor Length | 4 in |
| Mounting | Strap |
| Rotation | CWSE |
| Shaft Length | 1-1/4 in |
| Shaft Size | 5/16 in |
| Speed | 1 |
| Stud Span (in.) | 2-5/16 in |
| Vent | Non-Vented (NV) |
| Volt | 24 V |
| Wire | 2 Wires |
Interchanges & Equivalent parts:
| 275265 |
| 3003 |
| KYS 275265 |
| PF24128R |
| B275265 |
