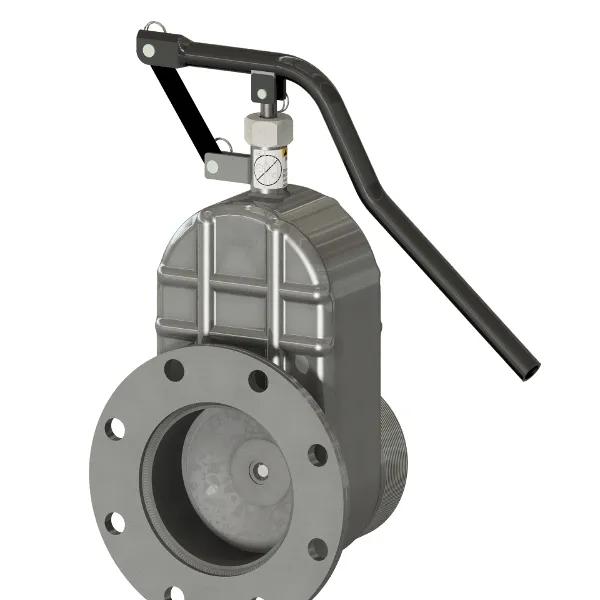

Sliding Valve, Manual, 316 Stainless Steel, 6 in Threaded Pipe x ANSI Flange
#BETSV866MSTS
Product Overview
The Betts replaceable O-ring sliding valve is a manually operated external stop valve that provides quick open or close functionality. Featuring replaceable PTFE encapsulated O-rings, it ensures a leak-tight seal and protects the disc from metal-to-metal contact scratches. Constructed with 316 stainless steel discs and stem, this valve offers premium corrosion resistance. The adjustable packing nut with woven PTFE-infused packing allows for easy stem adjustments.Sliding Valve, Threaded Pipe Inlet, ANSI Flange Outlet, Manual, 316 Stainless Steel, PTFE Seal, 316 Stainless Steel Stem, 6 in Inlet, 6 in Outlet, 9.07 in Width
Features & Benefits
- Manually operated external stop valve for quick open or close
- Replaceable PTFE encapsulated O-rings for leak-tight sealing
- 316 stainless steel discs and stem for corrosion resistance
- Adjustable packing nut with woven PTFE-infused packing for easy stem adjustments
- 6 inch inlet threaded pipe connection and 6 inch ANSI flange outlet
Specifications
| Body Material | 316 Stainless Steel |
| Inlet Size | 6 in |
| Inlet Type | Threaded Pipe |
| Outlet Size | 6 in |
| Outlet Type | ANSI Flange |
| Seal Material | PTFE |
| Stem Material | 316 Stainless Steel |
| Valve Type | Manual |
| Width | 9.07 in |
| Product Category | Sliding Valve |
| Weight | 40 lb |
