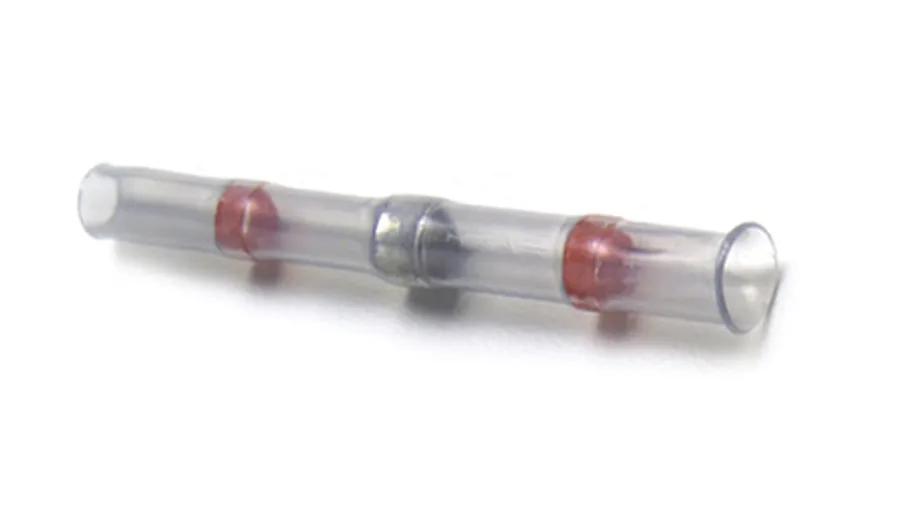

Solder Splice Terminal, 22-18 Ga, Pk 100
#GRO83-2618
Product Overview
The Grote Electrical Connector is a reliable solution for connecting 22-18 gauge primary wires. This durable connector ensures a secure and efficient electrical connection, making it ideal for various industrial applications. With a focus on precision and structural efficiency, the Grote Electrical Connector is designed to deliver consistent performance in demanding environments. Trust this connector to maintain optimal power delivery and ensure minimal emissions for the electrical systems.
Features & Benefits
- UL and CUL recognized
- Transparent insulation sleeve makes inspection easy
- Prevents wire corrosion and provides a waterproof seal
- Soldered electrical connection gives flow &tensile strength
- Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
- better for the environment
- Solder stays in place which provides greater tensile strength than other solder sleeves
- RoHS compliant
- Completely insulates and protects electrical connections
- New solder sleeves are Tin & Bismuth alloy
- Protects splices from water, corrosion, salt and moisture, provides strain relief
Specifications
| Color | Red |
| Gauge | 22-18 ga |
| Quantity | 100 |
| Style | Heat Shrinkable Or Solderable |
| Temperature Range | -55 °C to 125 °C |
| Terminal Type | Butt Connector |
| Type | Heat Shrink & Solder Splice Connectors |
| UPC | 621935024536 |
Interchanges & Equivalent parts:
| 23845 |
| 422543 |
| 7376-832618 |
| 83-2618GR0 |
| GRO 83 2618 |
| GRO 83-2618 |
| GRO832618 |
| ZBJ832618 |
| 832618 |
| ZBJD832618 |
| 12061100 |
| 6700-C |
| 725225 |
| 725226 |
| 725344 |
| 83-2618 |
| 30137-25 |
| 4064A |
| PTM9712 |
| ST252RD25 |
| BUS-CBF-30 |
| 30137-20 |
| 782-5550 |
| 6700C |
| 61479002 |
