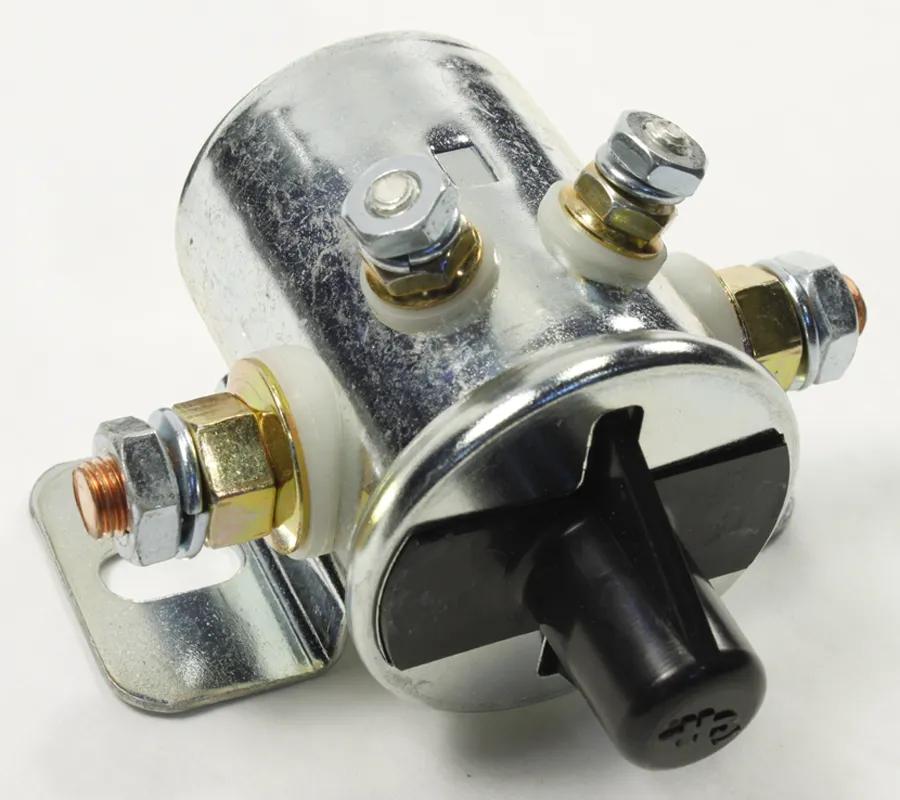

SOLENOID 12V LATCH
#COL24200
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Requires Only a Momentary Application of Coil Power to Operate. Very Little Heat is Generated, the Coil is De-Energized When the Solenoid is "On".
Specifications
| Additional Notes | Latching Solenoid. |
| Amps | 110 Amp (Carry Only) |
| Mounting | (2) 5/16 in. Slots On 2-13/64 in. Centers |
| Pole Pattern | DPST |
| Solenoid Switch Ground Type | Externally |
| Terminal Size | (2) 5/16-24 in. And (2) 10/32 in. |
| VMRS Code | 043-003-001 |
| Voltage | 12 Volts |
