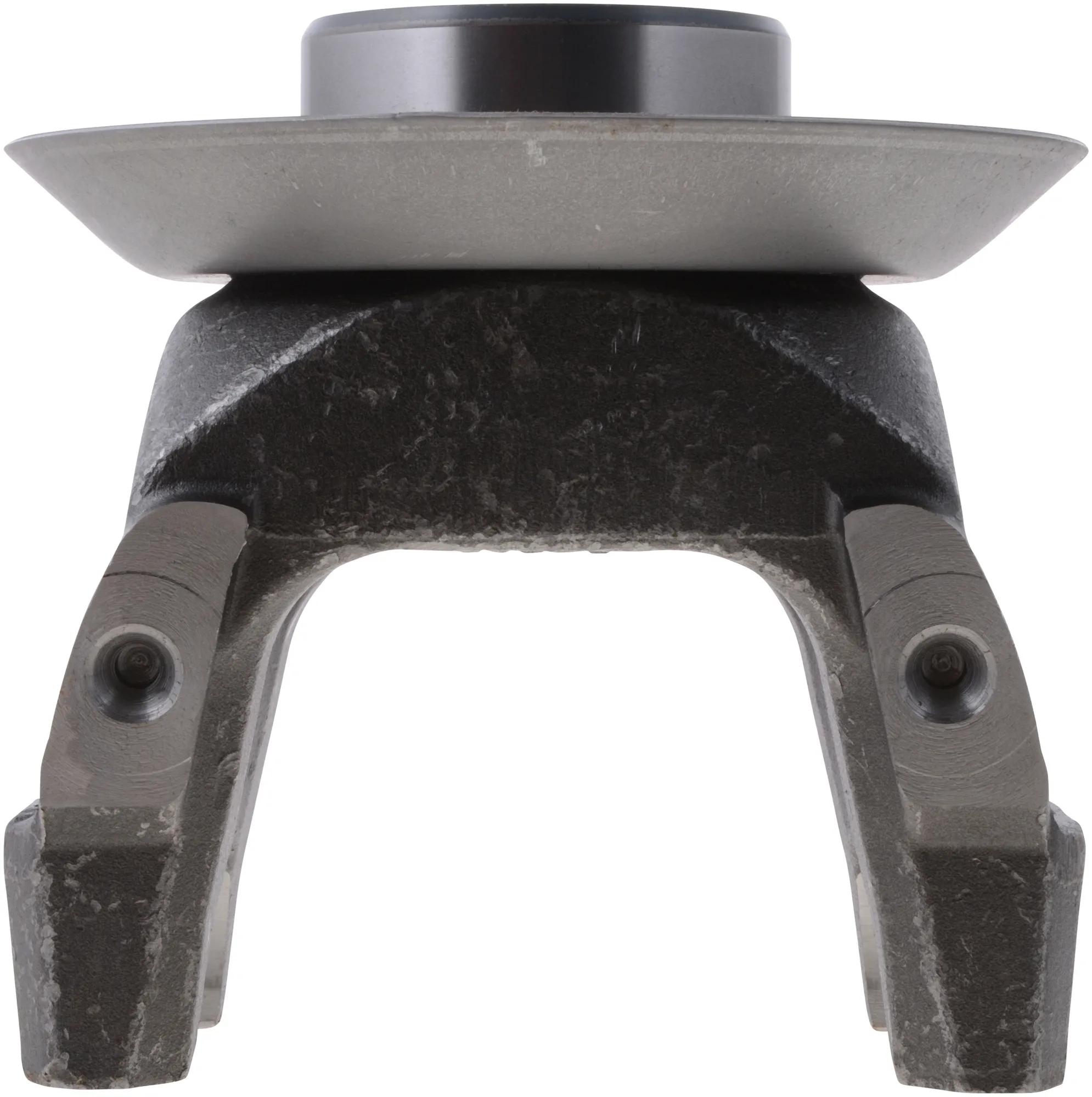

Spicer 1710 Series Splined Hole Differential End Yoke, Steel, HR Style, 3.25 in Hub Diameter, 6.19 in Outside Dimension
#SPI6-4-7771-1X
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing, and manufacturing processes all work in conjunction to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.14 in C-Bore Depth, 6.5 in Center Line to End Hub, 3.250 in Hub Dia, 2.344 in Length Thru Hole, 6.19 in Outside Yoke, 1710, 46 Spline Count, 1.938 in Yoke Bearing Dimension, HR Yoke, 2.39 in Length
Specifications
| Profondeur d'alésage C | 0.14 |
| Ligne centrale à la fin du moyeu | 6-1/2 po |
| Diamètre du moyeu | 3,250 po |
| Slinger/Plug inclus (O/N) | Yes |
| Spline à développante | No |
| Longueur | 2,39 po |
| Matériel | Acier |
| Package Type | Individuel |
| Quantité | 1 |
| Series | 1710 |
| Spline Count | 46 |
| Spline Diameter | 2-25/64 po |
| Type | Trou cannelé |
| VMRS Code | 22003072 |
| Weight | 16,62 lb |
| Weight (lbs) | 31 |

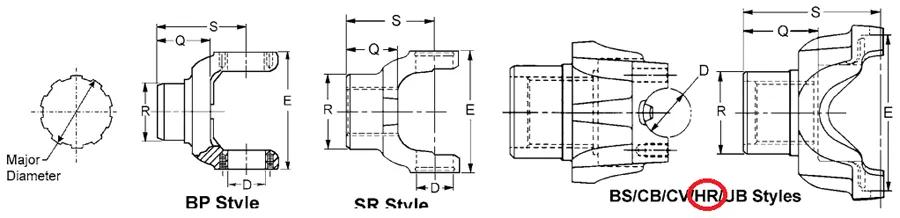

| Yoke Style | HR |
| Yoke Type | À ailettes |
| Center Line to End Hub | 6.5 in |
| Length Thru Hole | 2.344 in |
| Outside Yoke Dimension | 6.19 in |
| Yoke Bearing Dimension | 1.938 in |
| Product Category | Culasse d'extrémité de différentiel |
Interchanges & Equivalent parts:
| 171MU51P70 |
| 17N4-7771-1X |
| 17N477711X |
| 17TYS38-71A |
| 2013008C91 |
| 2104-6477711X |
| 6-4-7771-1XR |
| 6477711X-SP |
| 8068512 |
| D6477711X |
| E6477711X |
| SP 6 4 7771 1X |
| SP 6477711X |
| TWD6477711X |
| 6477711X |
| S-F340 |
| 6-4-7771-1X |
