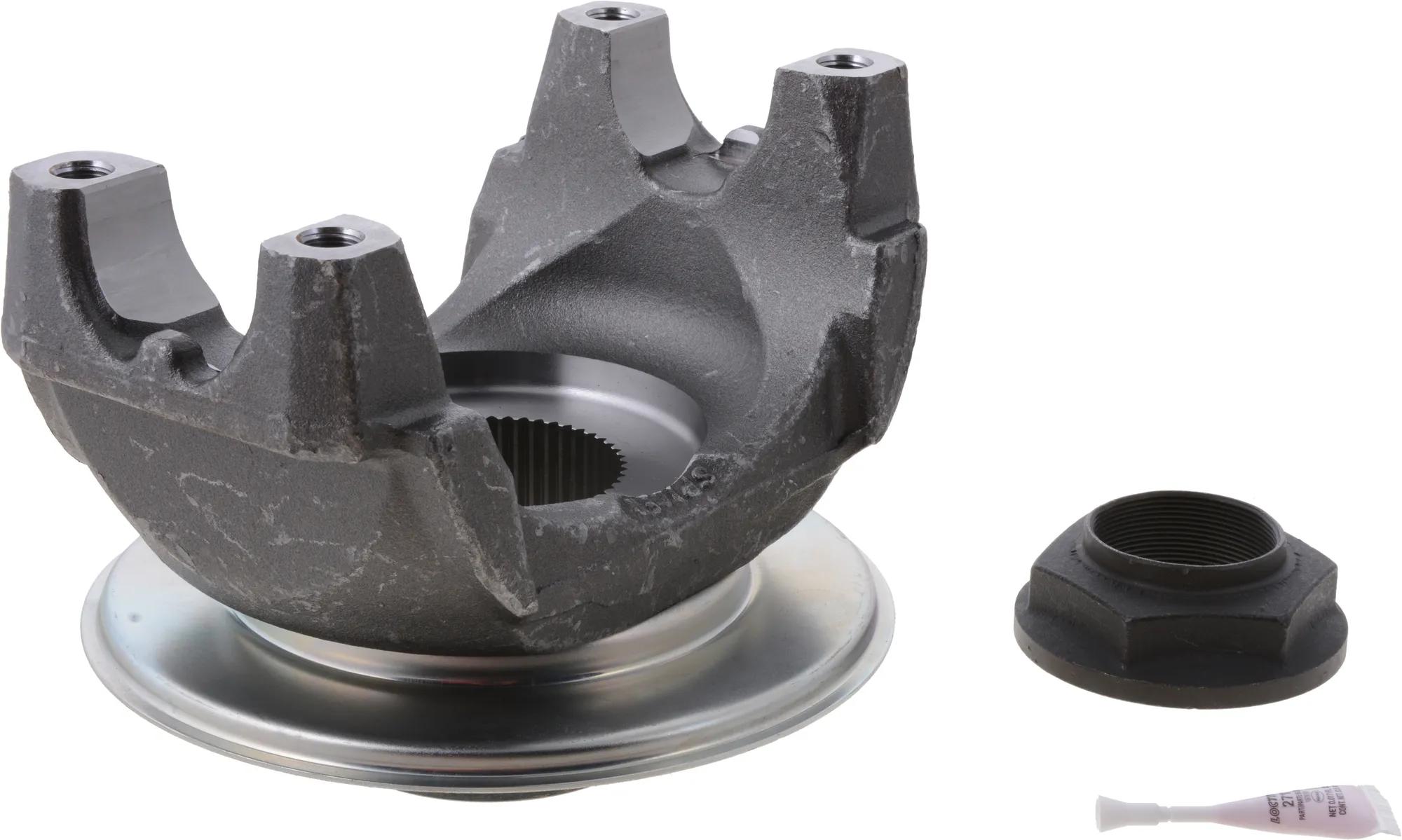

Spicer 1810 HR Splined Hole End Yoke, Steel, 3.82 in Hub Diameter, 7.643 in Outside Dimension
#SPI131447K
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.24 in C-Bore Depth, 5.74 in Center Line to End Hub, 3.820 in Hub Dia, 2.692 in Length Thru Hole, 7.643 in Outside Yoke, 1810, 49 Spline Count, 1.938 in Yoke Bearing Dimension, HR Yoke, 2.544 in Length
Specifications
| Diamètre de chapeau de roulement | 1-15/16 po |
| Profondeur d'alésage C | 0.24 |
| Ligne centrale à la fin du moyeu | 5-47/64 po |
| Diamètre du moyeu | 3,820 po |
| Slinger/Plug inclus (O/N) | Yes |
| Spline à développante | Yes |
| Longueur | 2,544 po |
| Longueur à travers le trou (Q) | 2.692 |
| Marketing Group | Kits de fourches coulissantes et d'accouplement |
| Material | Acier |
| Outside Yoke Dimension (in.) (E) | 7.643 |
| Pallet Quantity | 20 |
| Quantity | 1 |
| Series | 1810 |
| Spline Count | 49 |
| Spline Diameter | 2-35/64 po |
| Type | Chape à trou cannelé |
| Unit Pack | 1 |
| VMRS Code | 22003072 |
| Weight | 18,78 lb |
| Yoke Style | HR |
| Center Line to End Hub | 5.74 in |
| Length Thru Hole | 2.692 in |
| Outside Yoke Dimension | 7.643 in |
| Yoke Bearing Dimension | 1.938 in |
| Product Category | Chape d'extrémité de différentiel |
Interchanges & Equivalent parts:
| 2719-131447K |
| ETN131447K |
| H131447K |
| SP 131447K |
| SP 131447K |
| 120A0151 |
| 120A151 |
| 131447K |
| 131447KG07 |
| 2104131447K |
| 2719131447K |
| 3603843C91 |
| 5KP689 |
| D131447K |
| DS131447K |
| E131447K |
| SP131447K |
| SP131447KHP |
