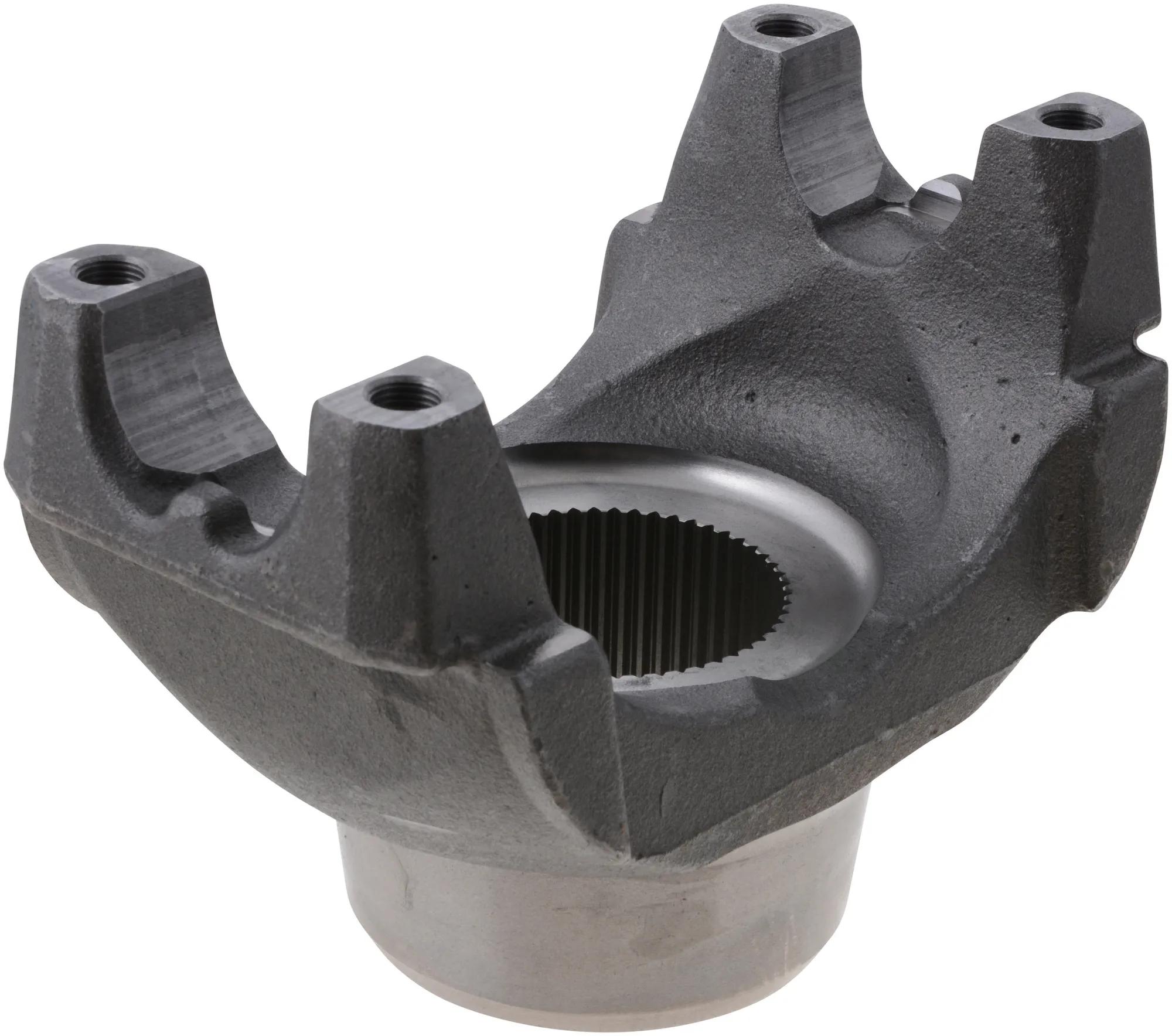

Spicer 1810 Series Splined Hole End Yoke, Steel, HR Style, 7.643 in Outside Dimension
#SPI6.5-4-4631-1
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft End Yoke, Splined Hole, Steel, 5.625 in Center Line to End Hub, 30 deg Joint Angle, 2.75 in Length Thru Hole, 7.643 in Outside Yoke, 1810, 54 Spline Count, 1.938 in Yoke Bearing Dimension, HR Yoke, 2.794 in Length
Specifications
| Bearing Cap Diameter | 1-15/16 in |
| Center Line to End of Hub | 15-1/32 in |
| Fits Tube Wall | 0.157 |
| For Use With | Secondary shaft fork or counter flange |
| Includes Slinger/Plug | No |
| Involute | Yes |
| Involute Spline | Yes |
| Joint Angle | 30 deg |
| Material | Steel |
| Quantity | 1 |
| Series | 1810 |
| Spline Count | 54 |
| Spline Diameter | 2-51/64 in |
| Type | Splined Hole Yoke |
| VMRS Code | 26001083 |
| Weight | 15.61 lb |

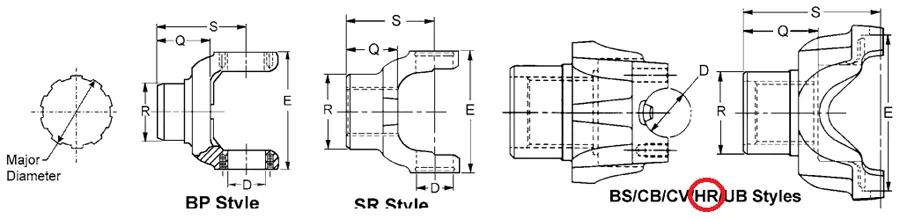

| Yoke Style | HR |
| Yoke Type | Winged |
| Center Line to End Hub | 5.625 in |
| Length Thru Hole | 2.75 in |
| Outside Yoke Dimension | 7.643 in |
| Yoke Bearing Dimension | 1.938 in |
| Product Category | Drive Shaft End Yoke |
Interchanges & Equivalent parts:
| 65446311 |
| N65-4-4631-1 |
| 181MU51P48 |
| 18TYS45 |
| 2104-65446311 |
| 3507640C1 |
| 3971288 |
| 6.5 4 4631 1 |
| 6.5-4-4631-1R |
| 65446311-SP |
| 65446311S |
| D65446311 |
| E65446311 |
| FUL5505547 |
| 64546311 |
| S-F030 |
| SP 6.5 4 4631 1 |
| SP 65446311 |
| TWD65446311 |
