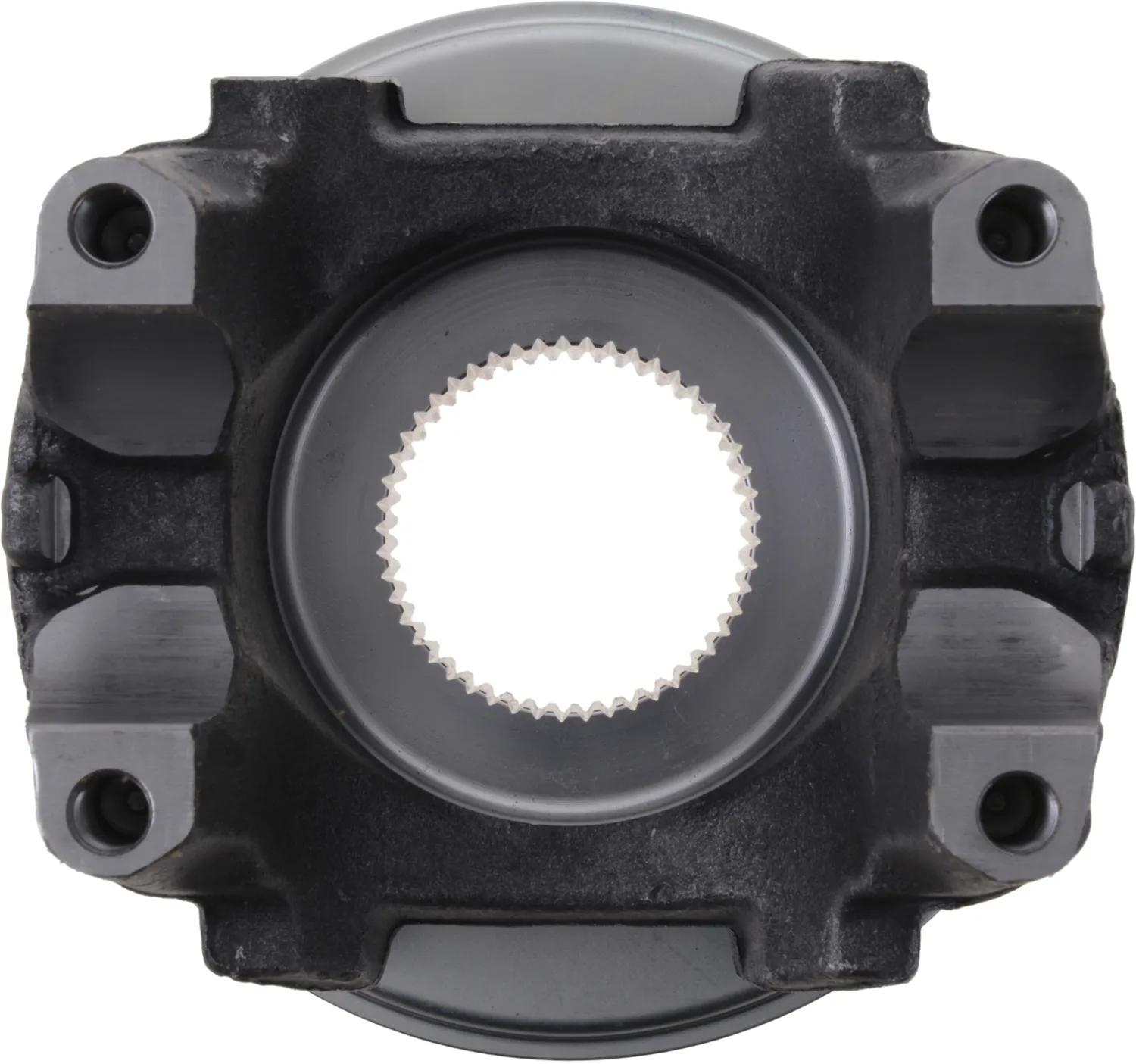

Spicer Differential End Yoke Kit, Splined Hole SPL250, Steel, HR Style, 3.819 in Hub Diameter, 6.417 in Outside Dimension

#SPI131446K

Product Overview

Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.24 in C-Bore Depth, 6.2 in Center Line to End Hub, 3.819 in Hub Dia, 2.672 in Length Thru Hole, 6.417 in Outside Yoke, SPL250, 49 Spline Count, 2.362 in Yoke Bearing Dimension, HR Yoke, 2.544 in Length

Specifications

Diamètre de chapeau de roulement	2-23/64 po
Profondeur d'alésage C	0.24
Ligne centrale à la fin du moyeu	6-13/64 po
Diamètre du moyeu	3,819 po
Includes Slinger/Plug	Yes
Involute Spline	Yes
Length	2,544 po
Length Thru Hole (Q)	2.672
Material	Acier
Outside Yoke Dimension (in.) (E)	6.417
Quantity	1
Series	SPL250
Spline Count	49
Spline Diameter	2-35/64 po
Type	Trou cannelé
VMRS Code	22003072
Weight	18,34 lb
Yoke Style	HR
Center Line to End Hub	6.2 in
Length Thru Hole	2.672 in
Outside Yoke Dimension	6.417 in
Yoke Bearing Dimension	2.362 in
Product Category	Joug d'extrémité de différentiel
