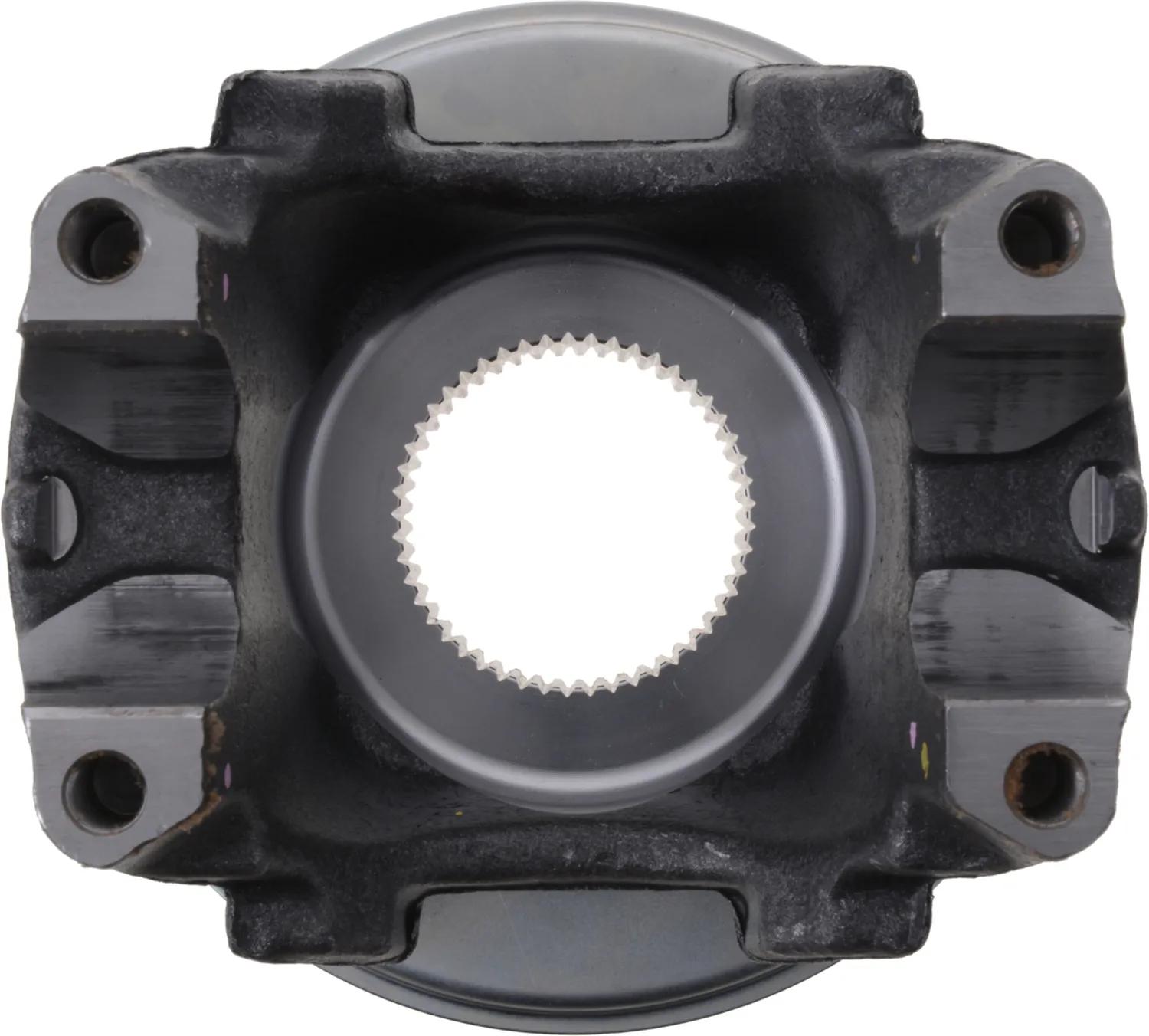

Spicer Differential End Yoke SPL170, Splined Hole, Steel, HR Style, 3.818 in Hub Diameter
#SPI131434K
Product Overview
Demand genuine Spicer parts with all components needed for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.12 in C-Bore Depth, 6.260 in Center Line to End Hub, 3.818 in Hub Dia, 2.125 in Length Thru Hole, 6.456 in Outside Yoke, SPL170, 49 Spline Count, 2.166 in Yoke Bearing Dimension, HR Yoke, 2.544 in Length
Specifications
| Bearing Cap Diameter | 2-11/64 in |
| C-Bore Depth | 0.12 |
| Center Line to End of Hub | 6-17/64 in |
| Hub Diameter | 3.818 in |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length | 2.544 in |
| Length Thru Hole (Q) | 2.125 |
| Material | Steel |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Outside Yoke Dimension (in.) (E) | 6.456 |
| Product Code | 140 |
| Product Common Use | PTO Applications, Dump Truck Applications |
| Quantity | 1 |
| Sell Pack Type | Craft Box |
| Series | SPL170 |
| Shipping Weight | 3.380 |
| Spline Count | 49 |
| Spline Diameter | 2-35/64 in |
| Type | Splined Hole |
| UPC | 724920040297 |
| VMRS Code | 22003072 |
| Yoke Style | HR |
| Center Line to End Hub | 6.260 in |
| Length Thru Hole | 2.125 in |
| Outside Yoke Dimension | 6.456 in |
| Yoke Bearing Dimension | 2.166 in |
| Product Category | Differential End Yoke |
Interchanges & Equivalent parts:
| 20700121 |
| 2104-131434K |
| 2719-131434K |
| ETN131434K |
| H131434K |
| SP 131434K |
| SP 131434K |
| ZBP131434K |
| 131434K |
| 131434KETN |
| 1320572 |
| 2104131434K |
| 2719131434K |
| 3603840C91 |
| D131434K |
| DS131434K |
| E131434K |
| SP131434K |
| SP131434KHP |
