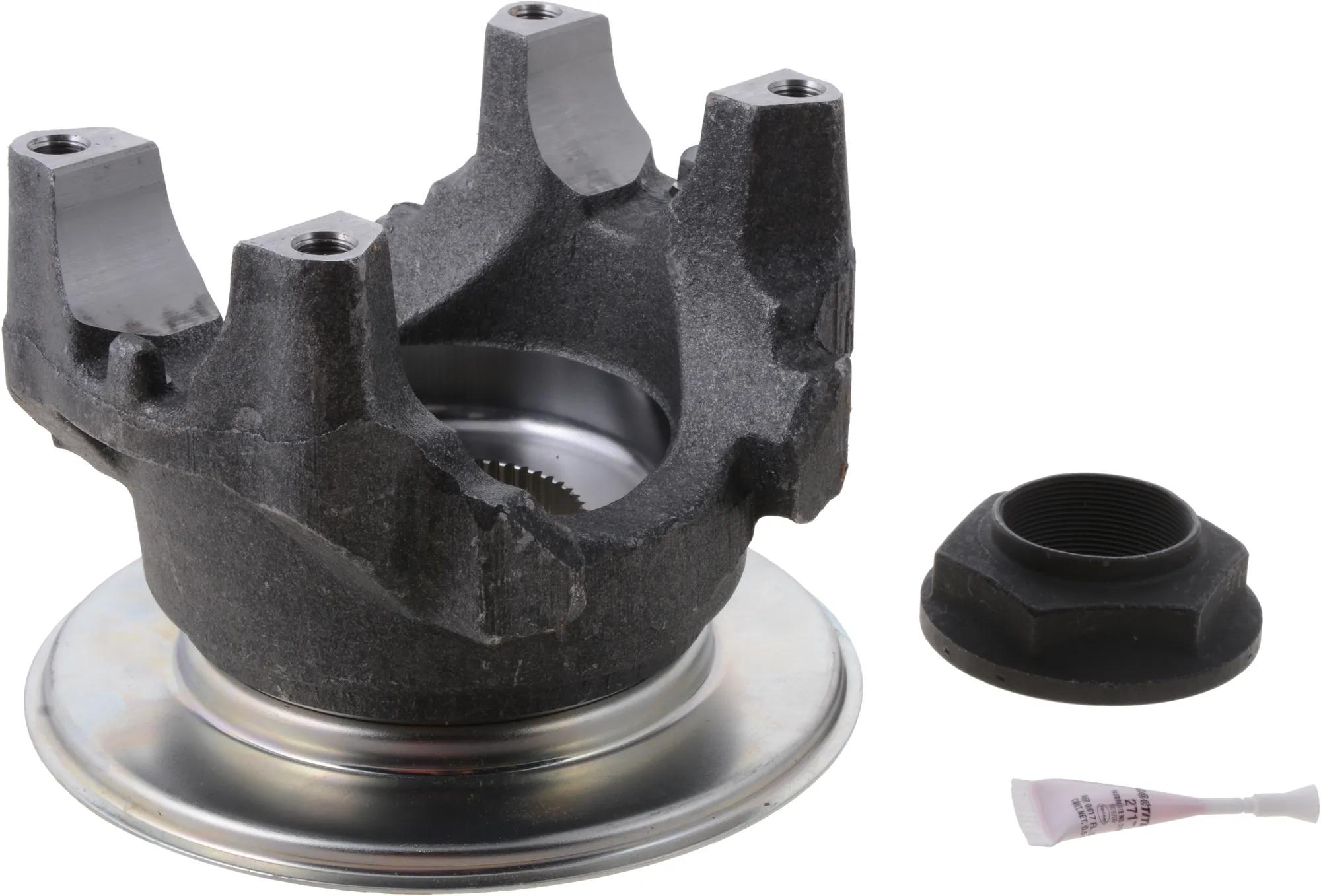

Spicer Differential End Yoke SPL170, Steel, Splined Hole, 3.818 in Hub Diameter, 6.456 in Outside Dimension
#SPI131433K
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.12 in C-Bore Depth, 5.531 in Center Line to End Hub, 3.818 in Hub Dia, 2.125 in Length Thru Hole, 6.456 in Outside Yoke, SPL170, 49 Spline Count, 2.166 in Yoke Bearing Dimension, HR Yoke, 2.544 in Length
Specifications
| C-Bore Depth | 0.12 |
| Hub Diameter | 3.818 in |
| Length | 2.544 in |
| Material | Steel |
| Quantity | 1 |
| Series | SPL170 |
| Spline Count | 49 |
| Type | Splined Hole |
| VMRS Code | 22003072 |
| Weight | 18.14 lb |
| Yoke Style | HR |
| Center Line to End Hub | 5.531 in |
| Length Thru Hole | 2.125 in |
| Outside Yoke Dimension | 6.456 in |
| Yoke Bearing Dimension | 2.166 in |
| Product Category | Differential End Yoke |
Interchanges & Equivalent parts:
| 20739789 |
| 2104-131433K |
| 2719-131433K |
| ETN131433K |
| H131433K |
| SP 131433K |
| ZBP131433K |
| 131433K |
| 131433KETN |
| 1398294 |
| 2719131433K |
| 3603839C91 |
| D131433K |
| DS131433K |
| E131433K |
| SP131433K |
| SP131433KHP |
