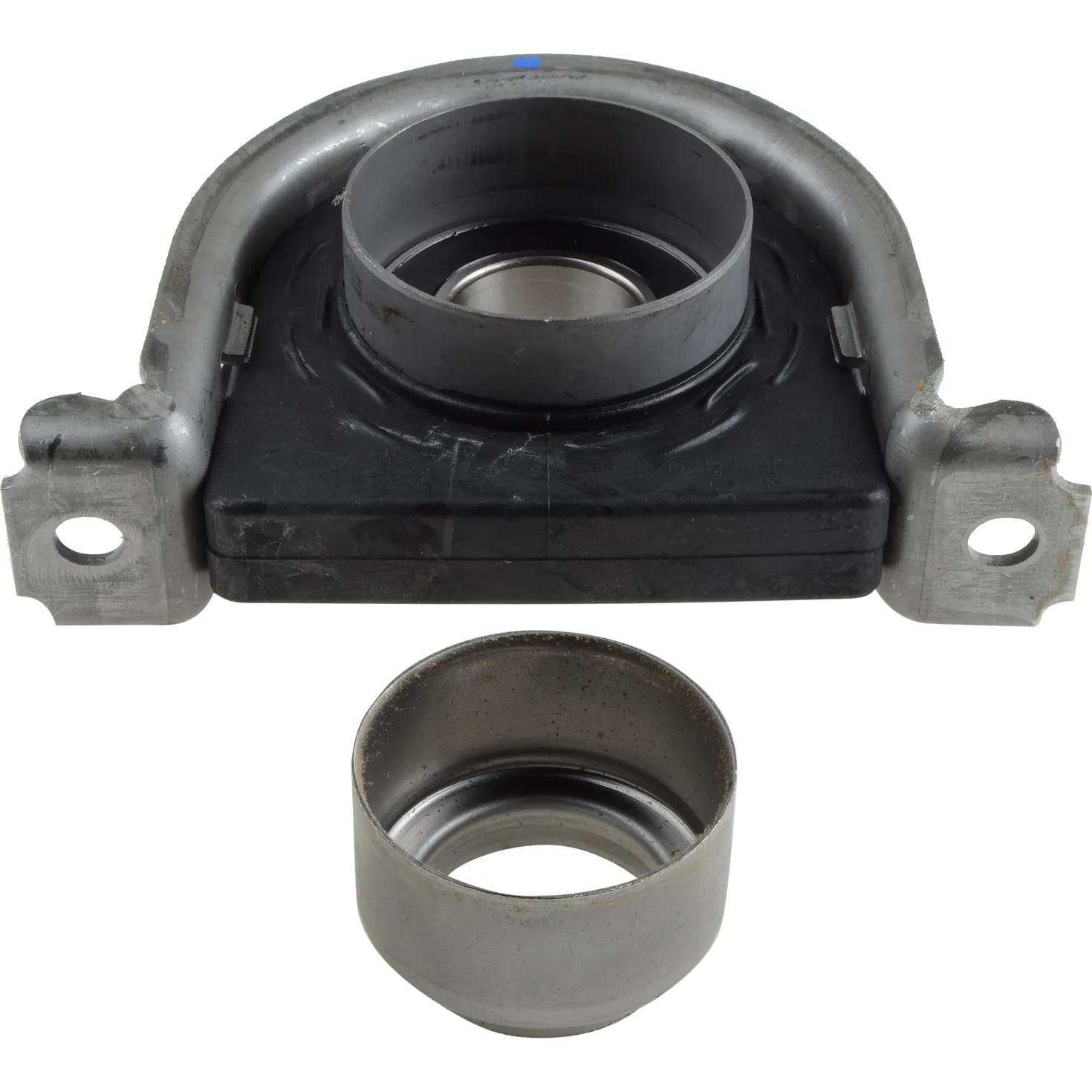

Spicer Drive Shaft Center Support Bearing, 1.771 in ID, SPL70 Series
#SPI212135-1X
Product Overview
The part you need. The name you trust. Spicer driveline components deliver top performance and value. These center bearing kits are manufactured to the same genuine standards you've come to expect from the most reliable name in driveshaft parts.Drive Shaft Center Support Bearing, 1.771 in Bearing ID, 0.560 in Bolt Hole, 2.250 in Bracket Width, 7.622 in Center Line to Center Line, 2.689 in CL to Mounting, SPL70, 19
Features & Benefits
- High-quality center support bearing for driveshaft applications
- Manufactured to genuine Spicer standards for reliability and durability
- Fits driveshafts with 1.771 inch inside diameter
- SPL70 series design for optimal performance
Specifications
| Bolt Hole Diameter | 0.56 |
| Bracket Width (in.) | 2-1/4 in |
| Cl To Mounting (in.) (B) | 2.689 |
| Inside Diameter | 1-49/64 in |
| Mounting Hole Center To Center (E) | 7-5/8 in |
| Series | SPL70 |
| Style | 19 |
| VMRS Code | 24002008 |
| Application | Driveshaft |
| Bearing Inner Diameter | 1.771 in |
| Bearing Type | Center Support Bearing |
| Bolt Hole Size | 0.560 in |
| Bracket Width | 2.250 in |
| Center Line to Center Line | 7.622 in |
| CL to Mounting | 2.689 in |
| Product Category | Drive Shaft Center Support Bearing |
| Quantity | 1 |
| Weight | 4.75 lb (2.15 kg) |
Interchanges & Equivalent parts:
| 212135 1X |
| D2121351X |
| E2121351X |
| SP 212135 1X |
| SP 2121351X |
| 00062784 |
| 0062784 |
| 19511955 |
| 2121351X |
| 2507989C91 |
| SP2121351X |
| SP2121351XHP |
| W8005682 |
| 212135-1X |
| DS2121351X |
