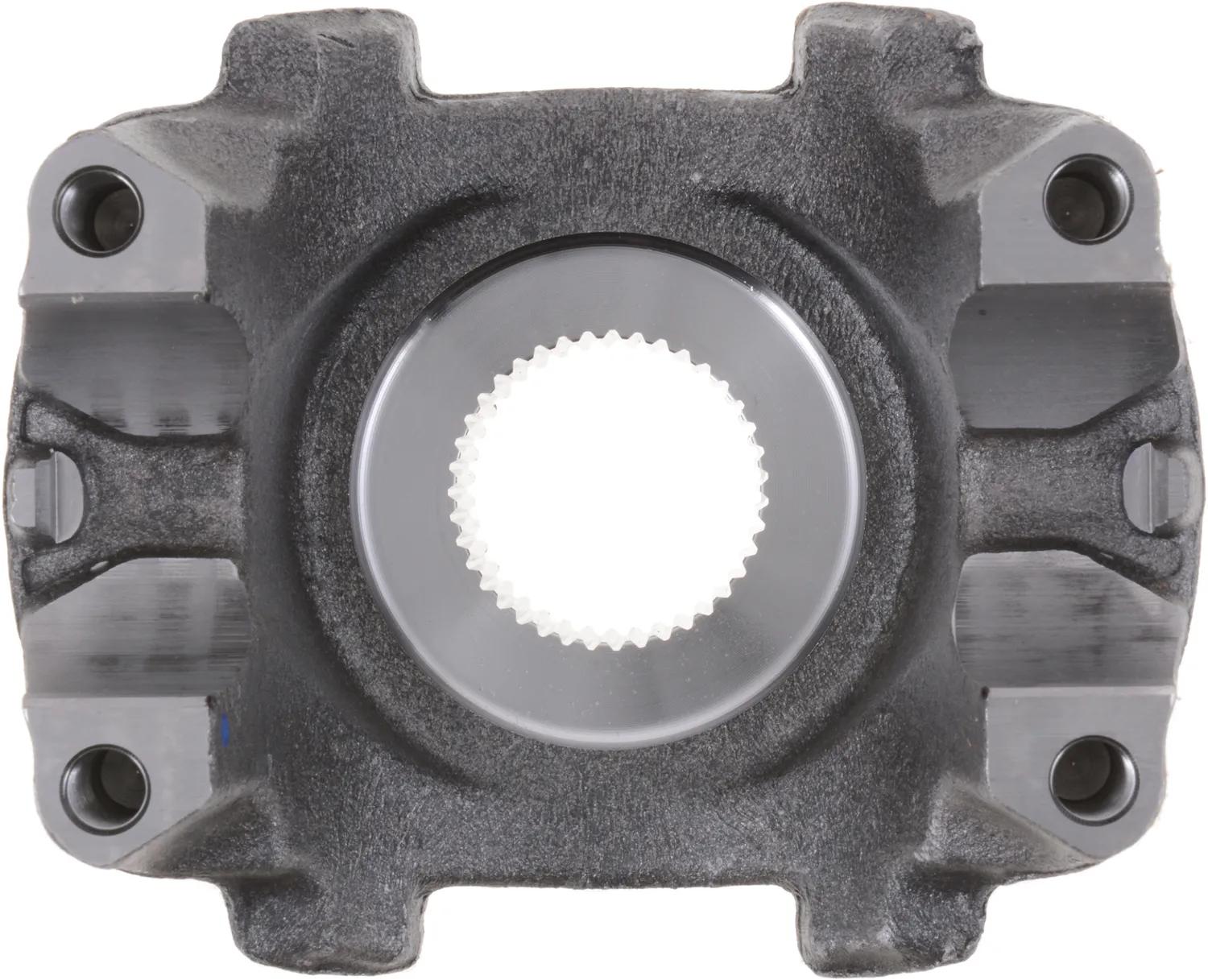

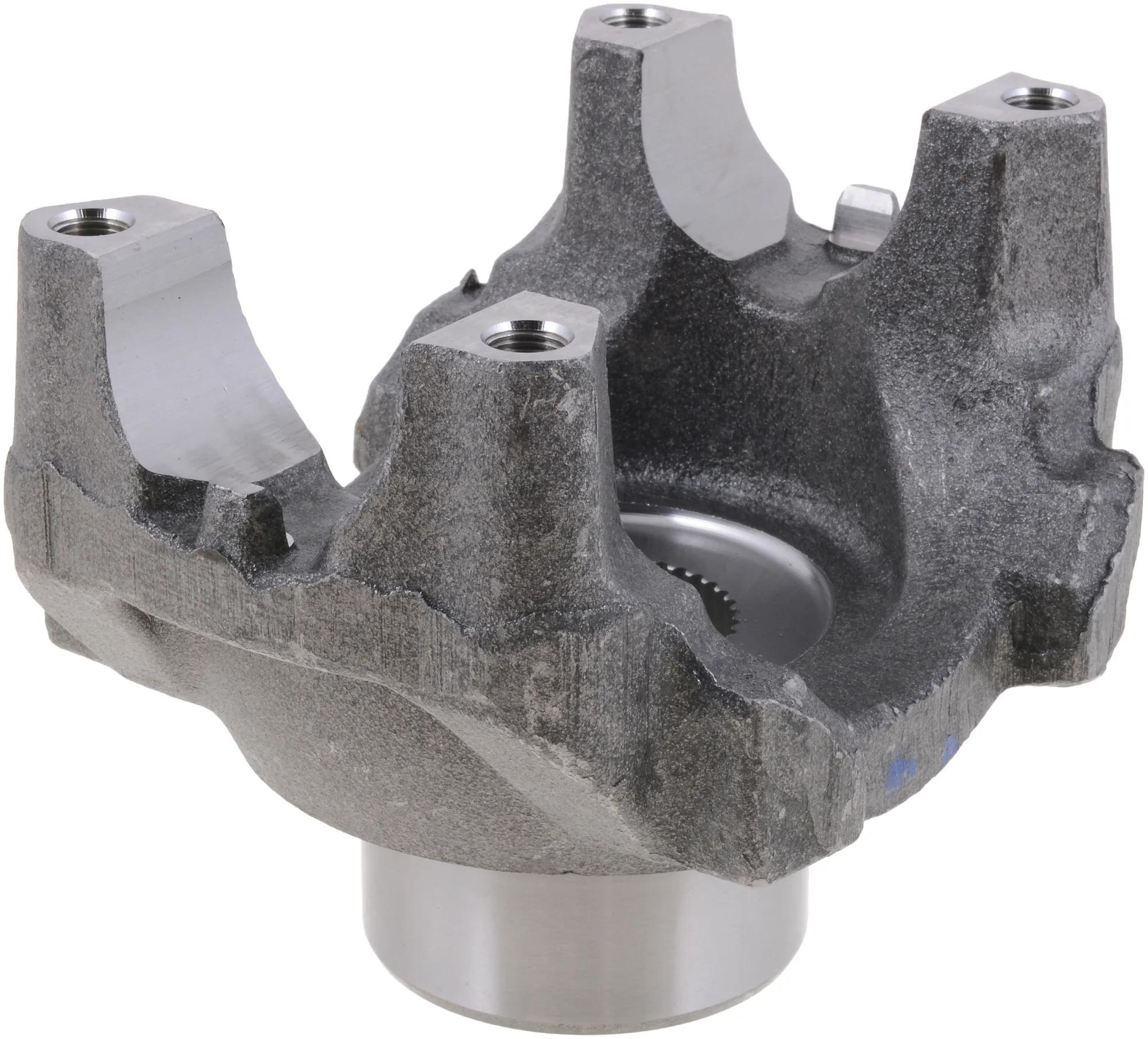

Spicer SPL170-C/B End Yoke, Steel, HR Style, 3 in Hub Diameter, 6.456 in Outside Yoke Dimension
#SPI170-4-641-1
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.105 in C-Bore Depth, 5.09 in Center Line to End Hub, 3 in Hub Dia, 25 deg Joint Angle, 2.312 in Length Thru Hole, 6.456 in Outside Yoke, SPL170, 39 Spline Count, 2.166 in Yoke Bearing Dimension, HR Yoke, 2.024 in Length
Specifications
| Bearing Cap Diameter | 2-11/64 po |
| Bore Diameter | 2-5/64 in (5.28 cm) |
| C-Bore Depth | 0.105 |
| Hub Diameter | 3 in |
| Involute Spline | No |
| Joint Angle | 25 deg |
| Length | 2.024 in |
| Material | Steel |
| Quantity | 1 |
| Series | SPL170 |
| Spline Count | 39 |
| Spline Diameter | 2-1/32 in |
| Type | Splined Hole |
| VMRS Code | 22003072 |
| Weight | 12.99 lb |
| Weight (lbs) | 49 |
| Yoke Style | HR |
| Center Line to End Hub | 5-3/32 in |
| Hole Diameter | 2-5/64 in |
| Length Thru Hole | 2.312 in |
| Outside Yoke Dimension | 6.456 in |
| Yoke Bearing Dimension | 2.166 in |
| Product Category | Differential End Yoke |
Interchanges & Equivalent parts:
| U9617046411 |
| 2104-17046411 |
| 2603017C1 |
| 2719-17046411 |
| 3513841C1 |
| E17046411 |
| ETN17046411 |
| S-14006 |
| SP 170 4 641 1 |
| SP 17046411 |
| 170 4 641 1 |
| 170-4-641-1 |
