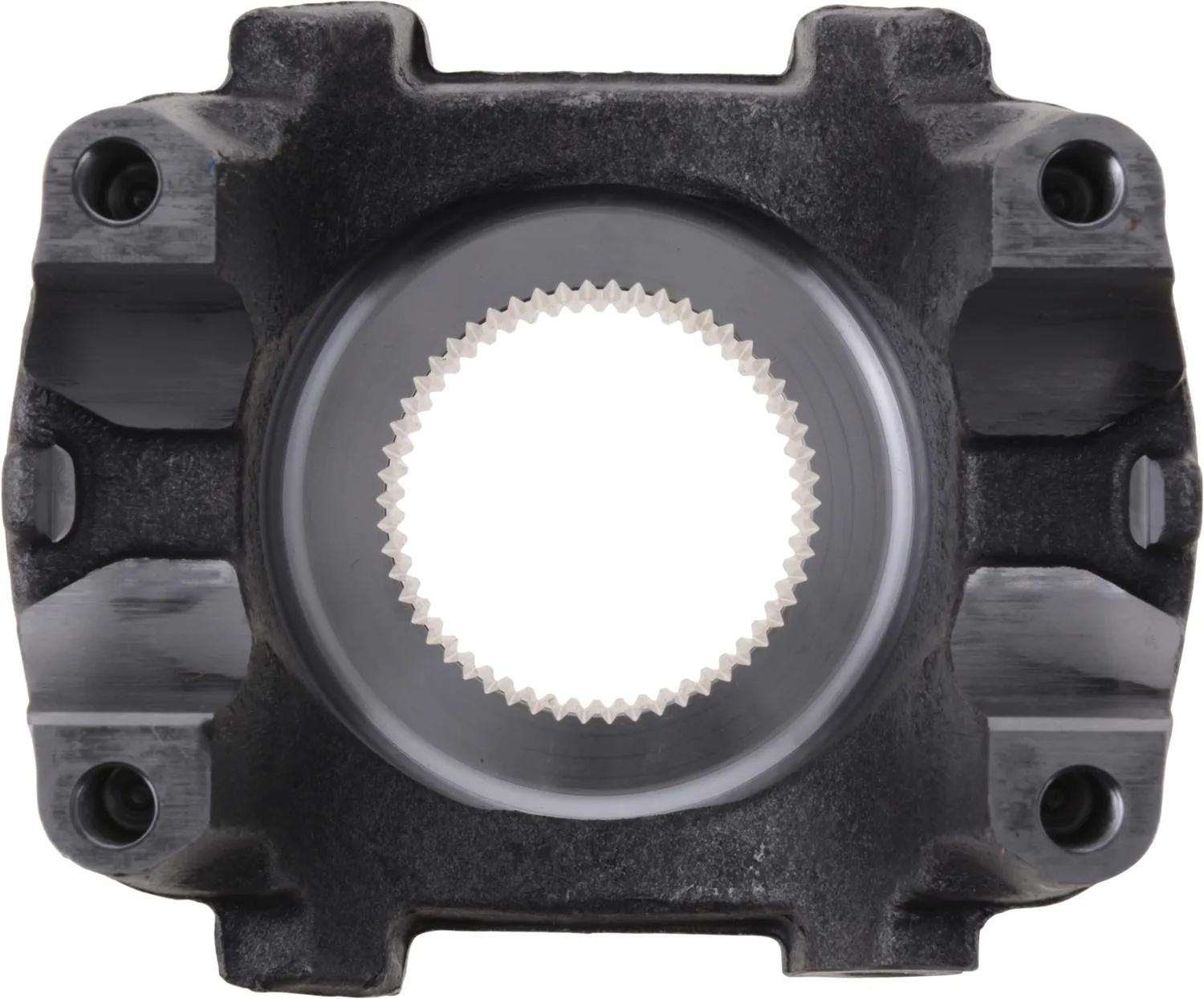

Spicer SPL250-C/B Steel Splined Hole End Yoke, HR Style, 6.417 in Outside Dimension
#SPI250-4-271-1
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Transmission Yoke, Splined Hole, Steel, 5.703 in Center Line to End Hub, 25 deg Joint Angle, 2.75 in Length Thru Hole, 6.417 in Outside Yoke, SPL250, 54 Spline Count, 2.362 in Yoke Bearing Dimension, HR Yoke, 2.794 in Length
Specifications
| Bearing Cap Diameter | 2-23/64 in |
| Hub Diameter | 2-51/64 in |
| Includes Slinger/Plug | No |
| Involute Spline | Yes |
| Joint Angle | 25 deg |
| Length | 2.75 in |
| Material | Steel |
| Quantity | 1 |
| Series | SPL250 |
| Spline Count | 54 |
| Type | Splined Hole Yoke |
| VMRS Code | 26001083 |
| Weight | 16.4 lb |
| Yoke Style | HR |
| Center Line to End Hub | 5-45/64 in |
| Length Thru Hole | 2.75 |
| Outside Yoke Dimension | 6.417 |
| Yoke Bearing Dimension | 2.362 in |
| Product Category | Transmission Yoke |
Interchanges & Equivalent parts:
| N250-4-271-1 |
| 125MU53P7 |
| 181MU41P6 |
| 2104-25042711 |
| 250 4 271 1 |
| 250-4-271-1R |
| 25042711 |
| 25042711-SP |
| 250N-4-271-1 |
| 25167070 |
| 8081948 |
| D25042711 |
| E25042711 |
| FUL 5505572 |
| S-17731 |
| SP 250 4 271 1 |
| SP 25042711 |
| 1370871 |
| 210425042711 |
| 25042711AUT |
| 25172945 |
| 2607592C1 |
| 300713416 |
| 3518151C1 |
| DS25042711 |
| SP25042711 |
| SP25042711HP |
| XC457089FAP250A |
| 250-4-271-1 |
