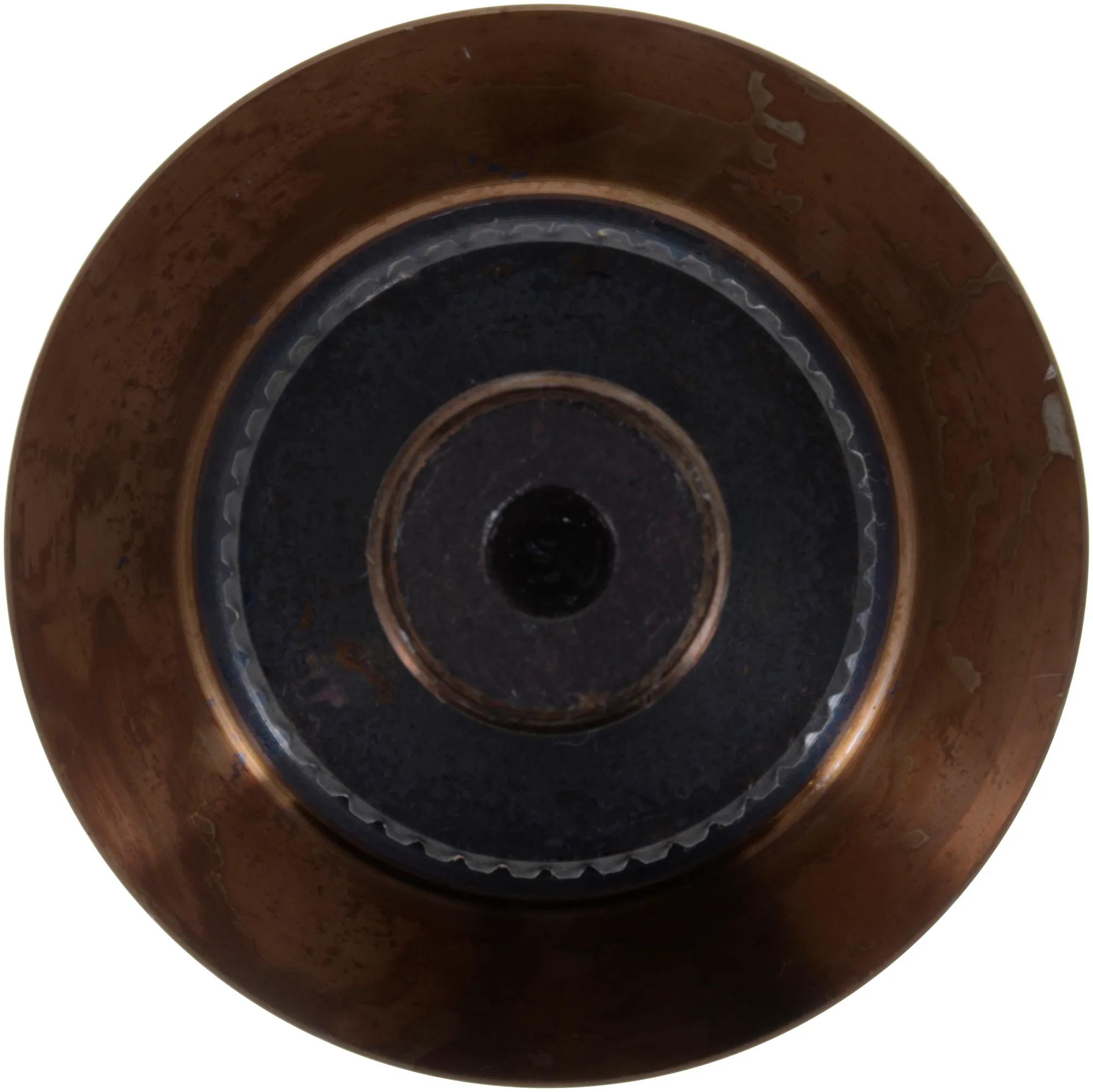

Spicer SPL250 Midship Drive Shaft Stub Shaft, Steel, 2.362 in Bearing Diameter, 4.746 in Butt Diameter
#SPI250-53-11
Product Overview
Demand genuine Spicer parts with all components needed for repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft Midship Stub Shaft, Steel, 2.362 in Bearing Dia, 4.746 in Butt Dia, SPL250, 2.886 in Shoulder Dia, 0.812 in Shoulder Length, 46 Spline Count, 3.980 in Spline End to Bearing Shoulder, 5.291 in Spline End to Weld, 2.618 in Spline Length, 2.350 in Spline O.D., 5.197 x 0.157 in Tube
Features & Benefits
- Genuine Spicer quality and reliability
- Engineered and tested by Dana for superior performance
- Durable steel construction
- Precision spline and bearing dimensions for exact fit
Specifications
| Bolt Hole Count | 4 |
| Circ Flange Face To End Of Hub | 2.125 |
| Flange Type | Rectangulaire |
| Flange Width Diameter (in.) (A) | 3.5 |
| Hub Diameter (in.) (E) | 1.875 |
| Key Width (in.) (K) | 0.25 |
| Material | Steel |
| Package Type | Each |
| Quantity | 1 |
| Series | SPL250 |
| Set Loc. ( Hub & Keyway At 12) | 6 |
| Shoulder Diameter | 2.886 in |
| Tube Size | 5.197 x 0.157 in |
| VMRS Code | 24002060 |
| Weight (lbs) | 12 |
| Bearing Diameter | 2.362 in |
| Shoulder Length | 0.812 in |
| Spline Count | 46 |
| Spline End to Bearing Shoulder | 3.980 in |
| Spline End to Weld | 5.291 in |
| Spline Length | 2.618 |
| Spline O.D. | 2.35 |
| Product Category | Drive Shaft Midship Stub Shaft |
| Weight | 12.3 lb |
Interchanges & Equivalent parts:
| 2505311 |
| 170-53-11 |
| 2104-2505311 |
| 2505311-SP |
| 89040630 |
| D2505311 |
| E2505311 |
| SP 250 53 11 |
| SP 250-53-11 |
| SP 2505311 |
| 21042505311 |
| 2500666C1 |
| 5KP865 |
| DS2505311 |
| SP2505311 |
| SP2505311HP |
| 250-53-11 |
