Spicer Universal Joint - 1310/SPL22 Series, OSR Style, Steel, Greaseable
#SPI5-1310-1X
Product Overview

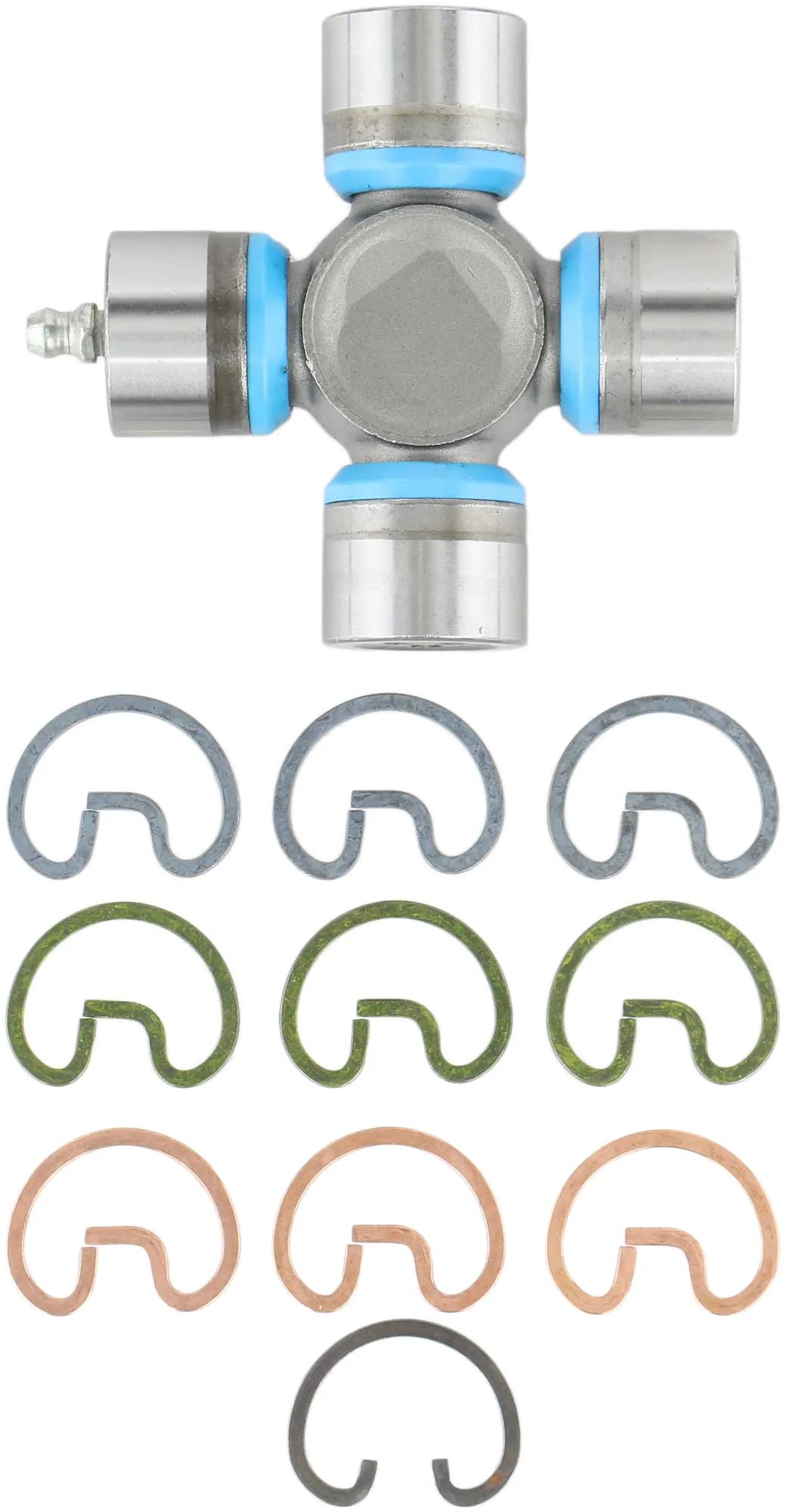

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicles to commercial and off-highway. Dana manufactures a full line of Spicer universal joints designed for durability and performance.Universal Joint, OSR Style, Round Bearing Cap, Blue, Steel, Rubber Seal, 1.062 in Bearing Cap Dia, Greaseable, 1310/SPL22, 3.219 in Length
Features & Benefits
Features & Benefits
SPI5-1310-1X - Features Documents - A
SPI5-1310-1X - Features Documents - B
SPI5-1310-1X - Features Documents - C
SPI5-1310-1X - Features Documents - D
SPI5-1310-1X - Features Documents - E
SPI5-1310-1X - Features Documents - F
SPI5-1310-1X - Features Documents - G
SPI5-1310-1X - Features Documents - H
SPI5-1310-1X - Features Documents - I
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Specifications
| Bearing Cap Diameter | 1.375 |
| Bearing Cap Finish | Round |
| Bearing Cap Type | Round |
| Bearing Cap Type (B) | OSR: Outside Snap Ring |
| Bearing Cap Type (A) | OSR: Outside Snap Ring |
| Cross Length (in.) | 3-7/32 in & 3-7/32 in |
| Grease Type | N.L.G.I. Grade 2 |
| Grease Zerk Included | Yes |
| U Joint Style | OSR |
| Length | 3.219 in |
| Material | Steel |
| Pre Greased | No |
| Seal Material | Rubber |
| Series | 1310/SPL22 |
| Snap Ring (2) | 3-7/32 in |
| Snap Ring (1) | 3-7/32 in |
| Snap Ring Included | Yes |
| Type | OSR Style |
| VMRS Code | 024002046 |
| Weight | 1.05 lb (0.48 kg) |
| Color | Blue |
| Greaseable | Yes |
| Product Category | Universal Joint |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 5810X |
| SPI5-810X |
| SPISPL227X |
| SPL22-7X |
| SPL227X |
| SPISPL22-7X |
| 5-255X |
| 5-433-1X |
| 5-810X |
| 5-1310-1X |
