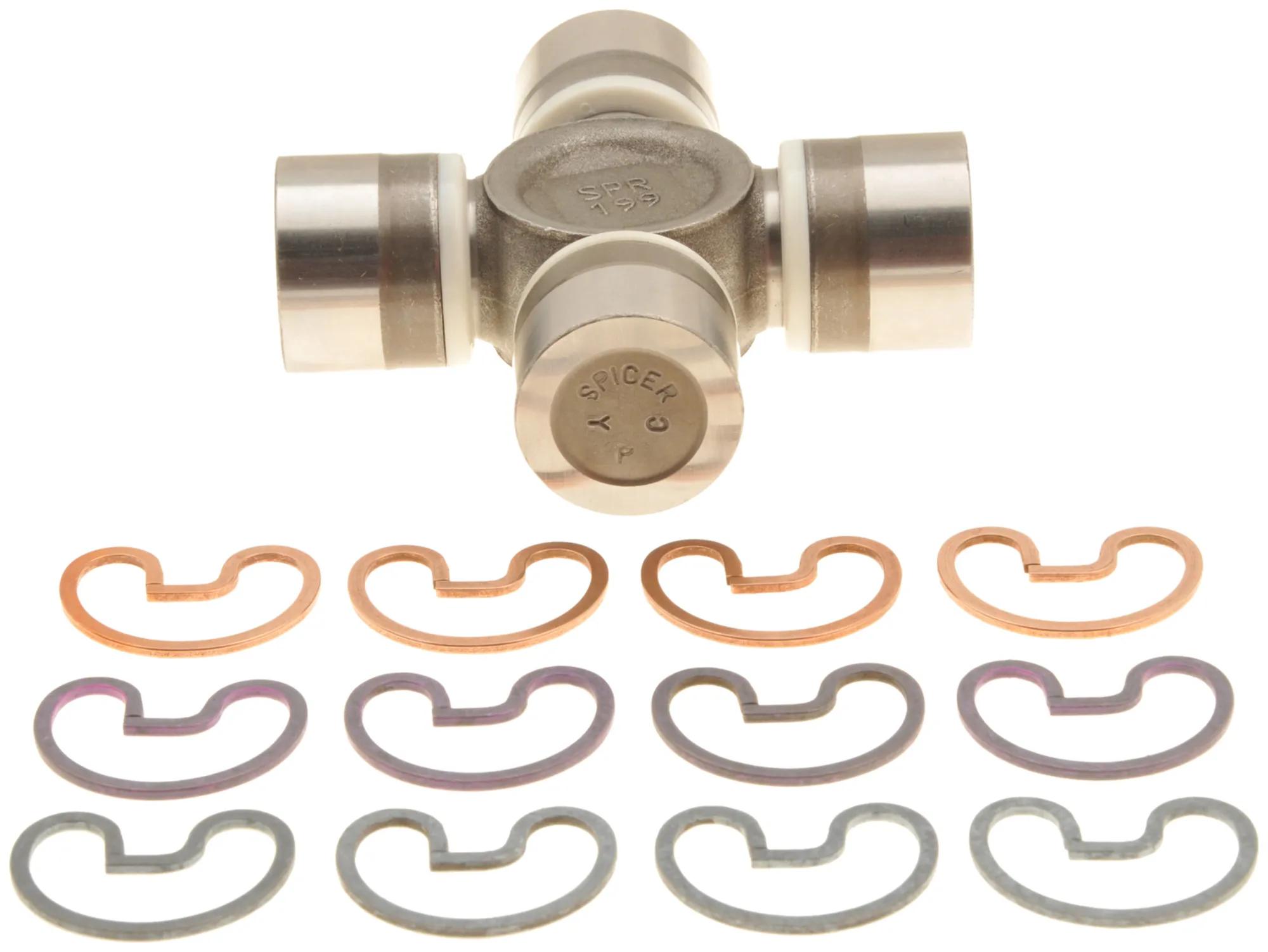

Spicer Universal Joint - 1350/SPL30 Series, OSR Style, Steel, 1.188 in Bearing Cap Diameter, Non-Greasable
#SPI5-1350X
Product Overview
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, providing longer life, increased bearing capacity, and lower maintenance costs. Designed for durability and reliability, this 1350/SPL30 series universal joint features a solid cold-formed journal cross, heat-treated bearing cups, and multi-lip seals to keep grease in and contaminants out, ensuring maximum retention in a wide range of environments.Universal Joint, OSR Style, Round Bearing Cap, Steel, 1.188 in Bearing Cap Dia, No Greaseable, 1350/SPL30, 3.625 in Length
Features & Benefits
Features & Benefits
SPI5-1350X - Features Documents - A
SPI5-1350X - Features Documents - B
SPI5-1350X - Features Documents - C
SPI5-1350X - Features Documents - D
SPI5-1350X - Features Documents - E
SPI5-1350X - Features Documents - F
SPI5-1350X - Features Documents - G
SPI5-1350X - Features Documents - H
SPI5-1350X - Features Documents - I
SPI5-1350X - Features Documents - J
SPI5-1350X - Features Documents - K
SPI5-1350X - Features Documents - L
SPI5-1350X - Features Documents - M
SPI5-1350X - Features Documents - N
SPI5-1350X - Features Documents - O
SPI5-1350X - Features Documents - P
SPI5-1350X - Features Documents - Q
SPI5-1350X - Features Documents - R
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Specifications
| Diamètre de chapeau de roulement | 1.188 po |
| Bearing Cap Type | Rond |
| Bearing Cap Type (B) | OSR : Bague d’arrêt extérieure |
| Bearing Cap Type (A) | OSR : Bague d’arrêt extérieure |
| Graissable | Non |
| Style de joint en U | OSR |
| Longueur | 3.625 po |
| Matériel | Acier |
| Matériau du joint d'étanchéité | Joint à lèvre multiple |
| Séries | 1350/SPL30 |
| Snap Ring (2) | 3-5/8 po |
| Snap Ring (1) | 3-5/8 po |
| Snap Ring Included | Yes |
| Type | Style OSR |
| Code VMRS | 024002046 |
| Poids | 1,65 lb (0,75 kg) |
| Product Category | Joint universel |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 5799X |
| SPI5-799X |
| SPL301X |
| SPISPL30-1X |
| CP1350X |
| 5-282X |
| 5-296X |
| 5-723X |
| 5-799X |
| 5009484 |
| 5012578 |
| 5019187 |
| 5627X |
| BL331 |
| SPL30-1X |
| 5-1350X |
| 5-86X |
