Spicer Universal Joint - 1480/SPL55 Series, OSR Style, Steel, 1.375 in Bearing Cap Diameter, Non-Greasable
#SPISPL55X
Product Overview
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, providing longer life, increased bearing capacity, and lower maintenance costs. Designed for durability and reliability, these universal joints ensure you can hit the road or trail with confidence.Universal Joint, OSR Style, Round Bearing Cap, Steel, 1.375 in Bearing Cap Dia, No Greaseable, 1480/SPL55, 4.188 in Length
Features & Benefits
Features & Benefits
SPISPL55X - Features Documents - A
SPISPL55X - Features Documents - B
SPISPL55X - Features Documents - C
SPISPL55X - Features Documents - D
SPISPL55X - Features Documents - E
SPISPL55X - Features Documents - F
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

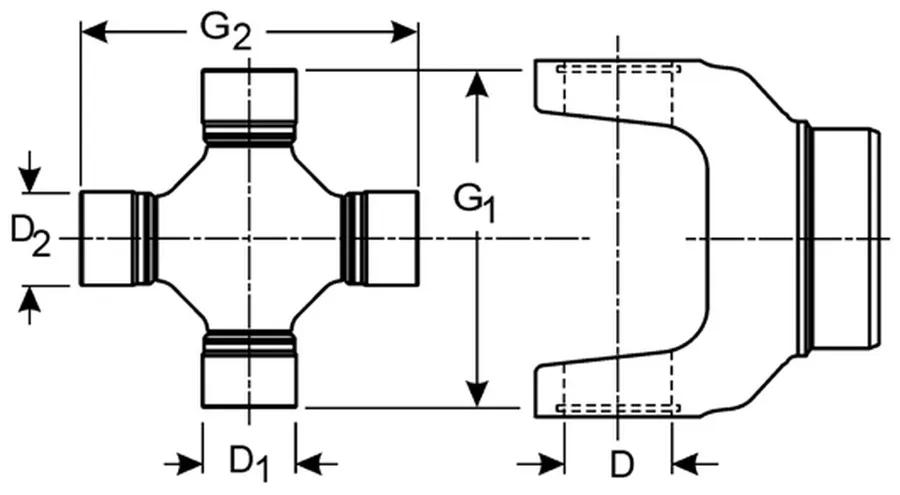

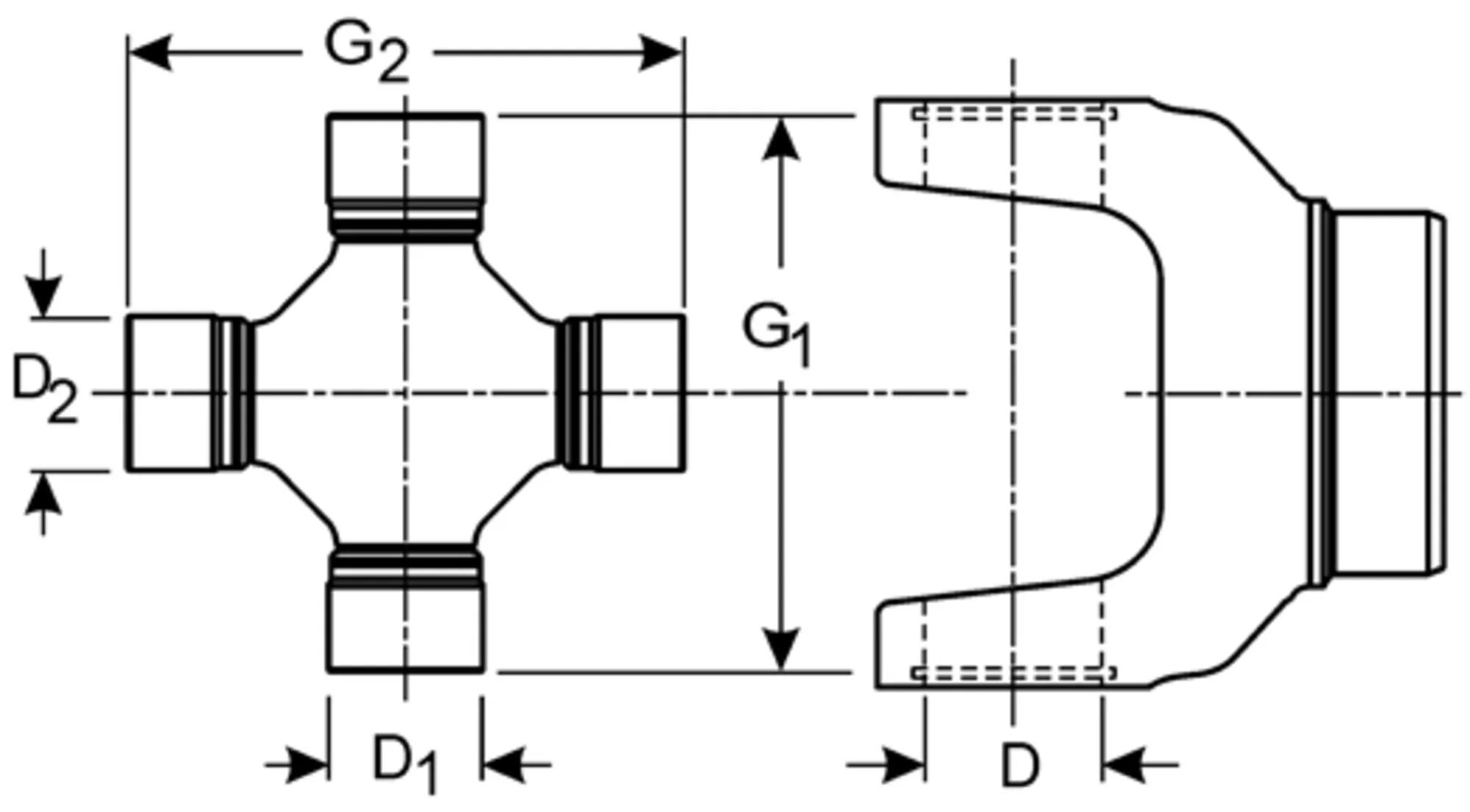

Specifications
| Diamètre de chapeau de roulement | 1.375 po |
| Diamètre du chapeau de palier (1) | 1.375 |
| Bearing Cap Type | OSR: Outside Snap Ring |
| Longueur transversale (po) | 4-3/16 po & 4-3/16 po |
| Graissable | Non |
| Longueur | 4.188 po |
| Matériel | Acier |
| Matériau du joint d'étanchéité | Joint à lèvres multiples |
| Séries | 1480/SPL55 |
| Snap Ring (2) | 1-1/2 in |
| Snap Ring (1) | 4-3/16 in |
| Snap Ring Included | Yes |
| Type | Style OSR |
| VMRS Code | 024002046 |
| Weight | 2.5 lb (1.13 kg) |
| Product Category | Joint universel |
| Quantity | 1 |
Interchanges & Equivalent parts:
| DSPL55X |
| ESPL55X |
| SP SPL55X |
| SP SPL55X |
| US55X |
| TWDSPL55X |
| US55XMER |
| 5-803X |
