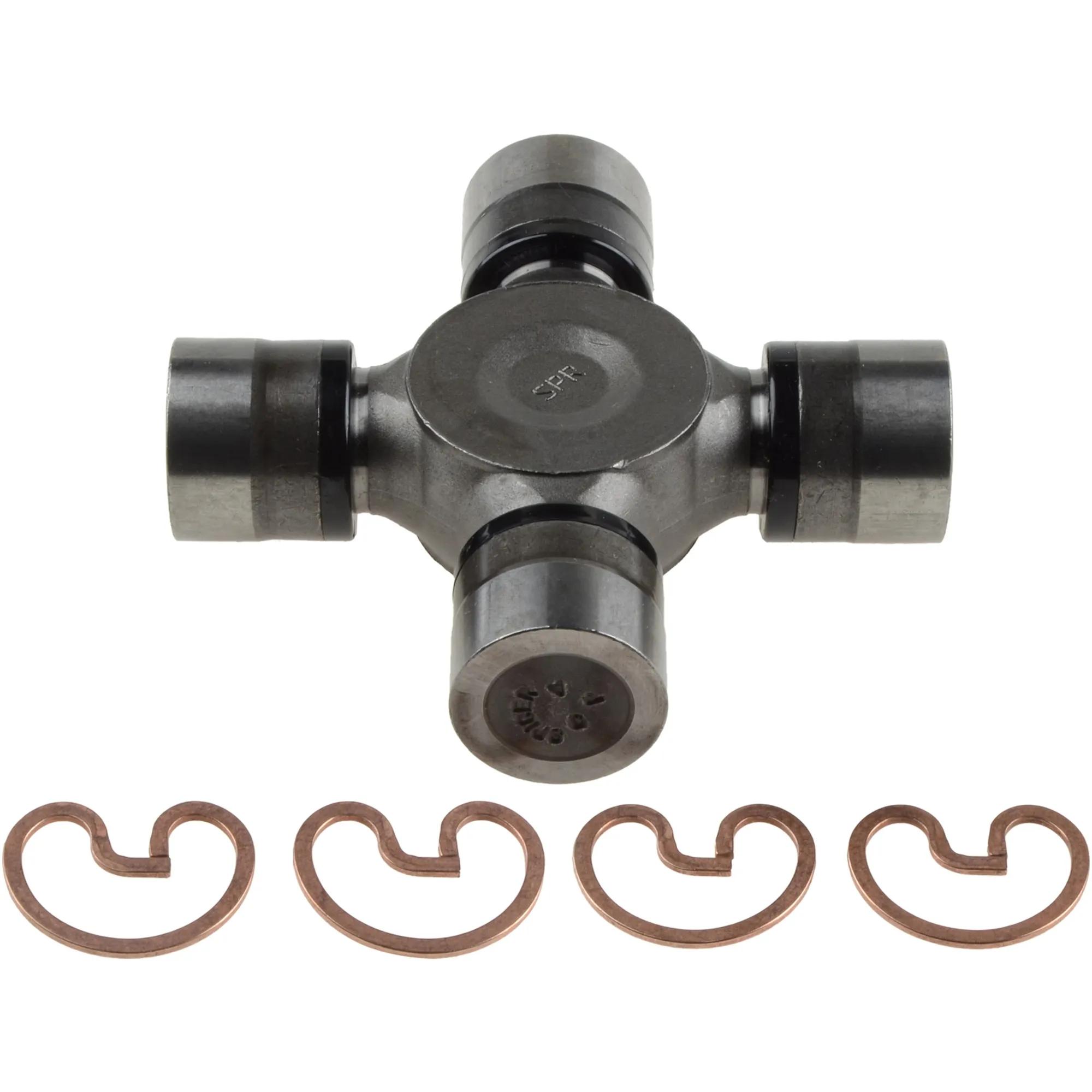

Spicer Universal Joint - 1550/SPL70 Series, OSR Style, Steel, 1.375 in Bearing Cap Diameter, Non-Greasable

#SPISPL70X

Product Overview

You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Experience longer life, increased bearing capacity, and lower maintenance costs with Spicer Life Series (SPL) universal joints.Universal Joint, OSR Style, Round Bearing Cap, Steel, 1.375 in Bearing Cap Dia, No Greaseable, 1550/SPL70, 4.964 in Length

Features & Benefits

Features & Benefits SPISPL70X - Features Documents - A SPISPL70X - Features Documents - B SPISPL70X - Features Documents - C SPISPL70X - Features Documents - D SPISPL70X - Features Documents - E SPISPL70X - Features Documents - F

Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.

Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.

Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.

Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

Specifications

Diamètre de chapeau de roulement	1.375 po
Diamètre du chapeau de palier (1)	1.375
Bearing Cap Type	OSR: Outside Snap Ring
Longueur transversale (po)	4-31/32 po & 4-31/32 po
Graissable	Non
Longueur	4.964 po
Matériel	Acier
Séries	1550/SPL70
Snap Ring (2)	2-3/16 in
Snap Ring (1)	4-31/32 in
Snap Ring Included	Yes
Type	Style OSR
Code VMRS	024002046
Poids	3.15 lb (1.43 kg)
Catégorie de produit	Joint universel
Quantité	1
