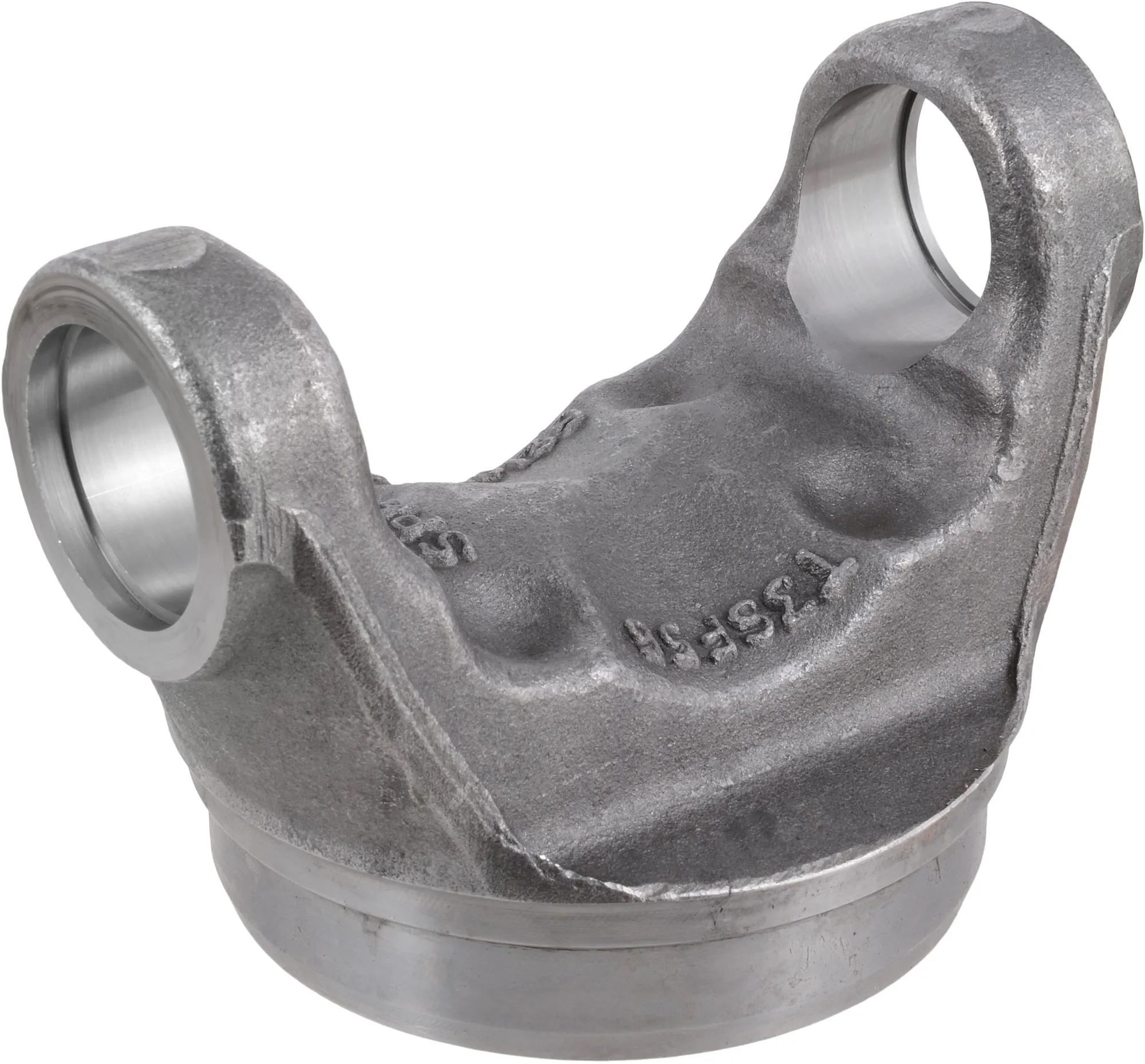

SPL70/1550 TUBE YOKE
#SPI4-28-277
Specifications
| Base To Hole Center (A) | 1-3/16 in |
| Bearing Cap Diameter | 1-3/8 in |
| Center Line to End of Hub | 3-15/16 in |
| Centerline to Point of Weld | 2-3/16 in |
| Design | SR |
| Fits Tube Wall (S=Seam W=Weld) | .083-WELDED |
| Involute Spline | No |
| Joint Angle | 22.5 deg |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 5.25 |
| Fits Tube Wall | 0.065 |
Interchanges & Equivalent parts:
| 155N-28-277 |
| 428277 |
| D428277 |
| E428277 |
| SP 4 28 277 |
| SP 428277 |
| TWD428277 |
| 4-28-277 |
