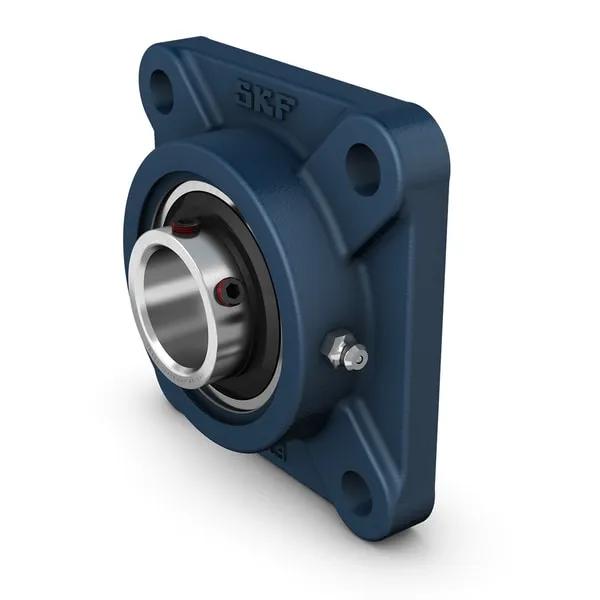

Square Flanged Ball Bearing Unit, Cylindrical, Steel Bearing, Cast Iron Housing, 50.8 mm Shaft Dia, 43.6 kN Dynamic Load, 29 kN Static Load, 3000 rpm

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.Ball Bearing Unit, Square Flanged, Cylindrical, Steel Bearing, Cast Iron Housing, 50.8 mm Shaft Dia, 15.875 mm Bolt Diameter, 55.6 mm Bearing Width, 43.6 kN Dynamic Load, 29 kN Static Load, 3000 rpm Limiting Speed, 4 Holes, 130 mm Centre Distance Between Bolt Holes, Sealing Type: Contact, Standard, 58.4 mm Width, Lubricant: Grease
