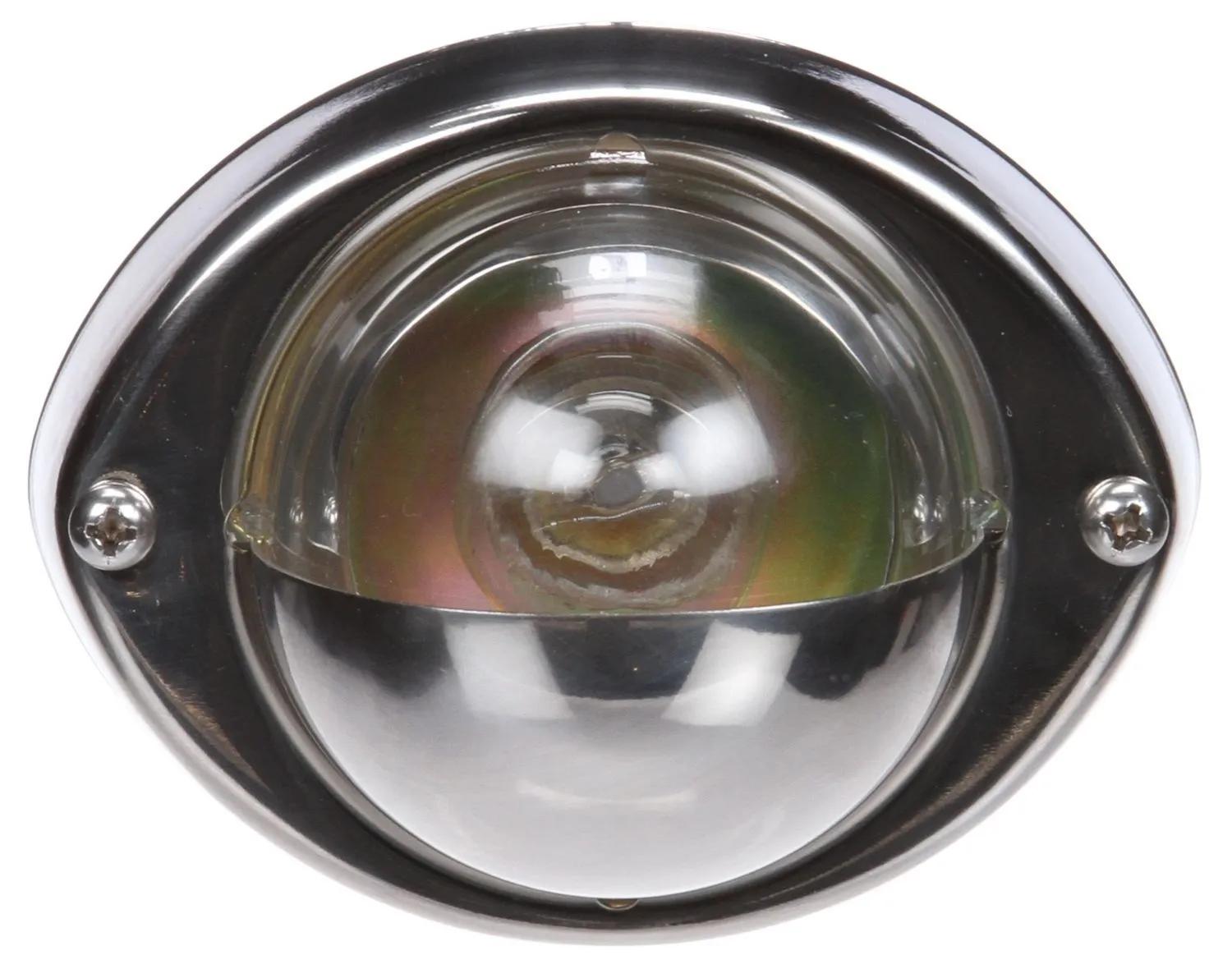

Stepwell Light, Clear, Round
#TRL26394C
Product Overview
With Ground Wire, Incandescent, 1 Bulb, Round Clear, Stepwell Light, Silver Bracket Mount, Hardwired, Stripped End, 12V
Features & Benefits
- Stainless steel housing will not rust or corrode
- Glass lens holds up to extreme temperatures
- Mounts with two # 10 screws on 1625"
- centers
- Mounting hole requires 13/16"
- diameter cutout
Specifications
| Amps | 1.43 amp |
| Color | White |
| Contents | Lamp |
| Depth | 2-19/32 in (6.58 cm) |
| Height | 1-39/64 in (4.09 cm) |
| Housing Color | Silver |
| Kit (Y/N) | No |
| Lamp Type | Stepwell |
| Length | 4-1/32 in (10.24 cm) |
| Lens Material | Glass |
| Material | Stainless Steel |
| Mount Type | Surface Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Stepwell Light |
| Series | 26 Series |
| Shape | Round |
| Switch | No |
| Technology | Incandescent |
| VMRS Code | 034-004-122 |
| Volt | 12V |
| Weight | 0.54 lb (0.24 kg) |
| Width | 3-51/64 in (9.65 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 60251 |
| 5001787003 |
| TL26394C |
| TLD26394C |
| 81201 |
| TL 26394C |
| TL 26394C |
| 60251GR0 |
| 60361GR0 |
| 26394C |
