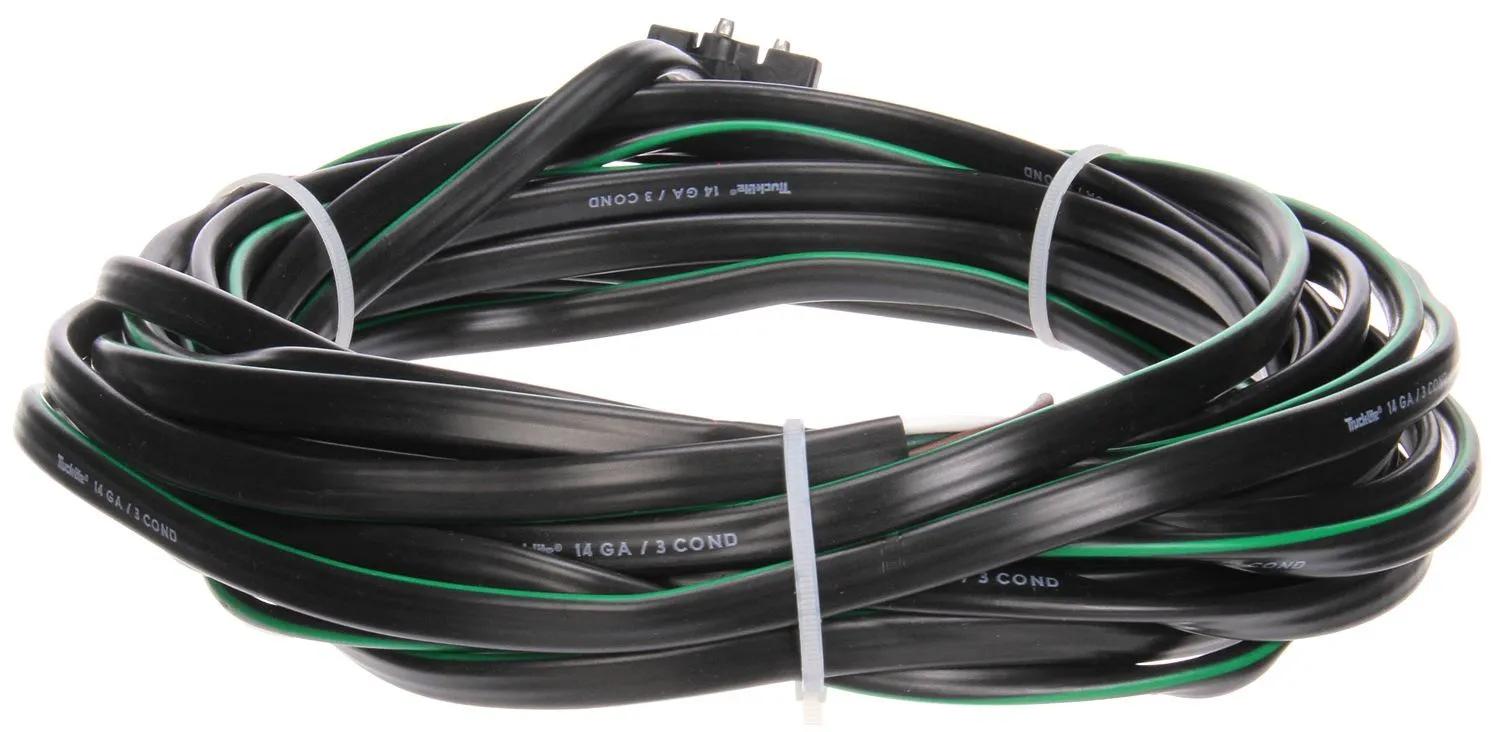

Stop/Tail/Turn Harness, 50 Series, 3 Wires, Le: 38 ft
#TRL50266
Product Overview
50 Series, 1 Plug, RH Side, 451.5 in. Turn/Tail Harness, 14 Gauge, Right Angle PL-3, Ring Terminal
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Cable Type | Flat |
| Harness Type | Turn, Tail |
| Kit (Y/N) | No |
| Length | 38 ft (11.58 m) |
| Number of Plugs | 1 |
| Number Of Wires | 3 |
| # of Contacts | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | Ring Terminal |
| Position | Right Hand Side |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-002-036 |
| Volt | 12V & 24V |
| Weight | 2 lb (0.91 kg) |
| Wire Color | Brown, White, Yellow |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 1011220 |
| 34003009 |
| 50266 |
| 841350266 |
| 93800028 |
| TL50266 |
| TLD50266 |
| Q517139 |
| E845026600 |
| TRU50266 |
| 8413-50266 |
| LIT50266 |
| TL 50266 |
| TL 50266 |
