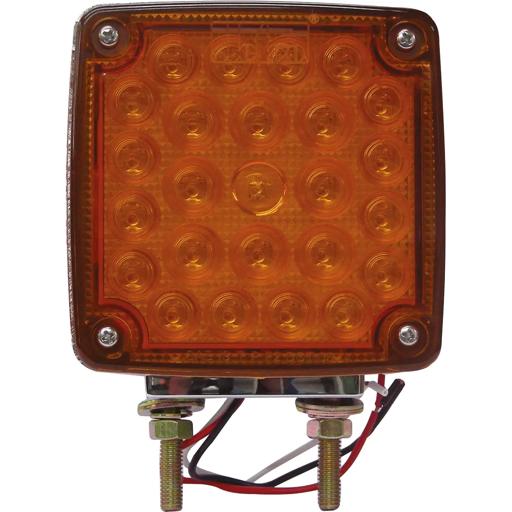

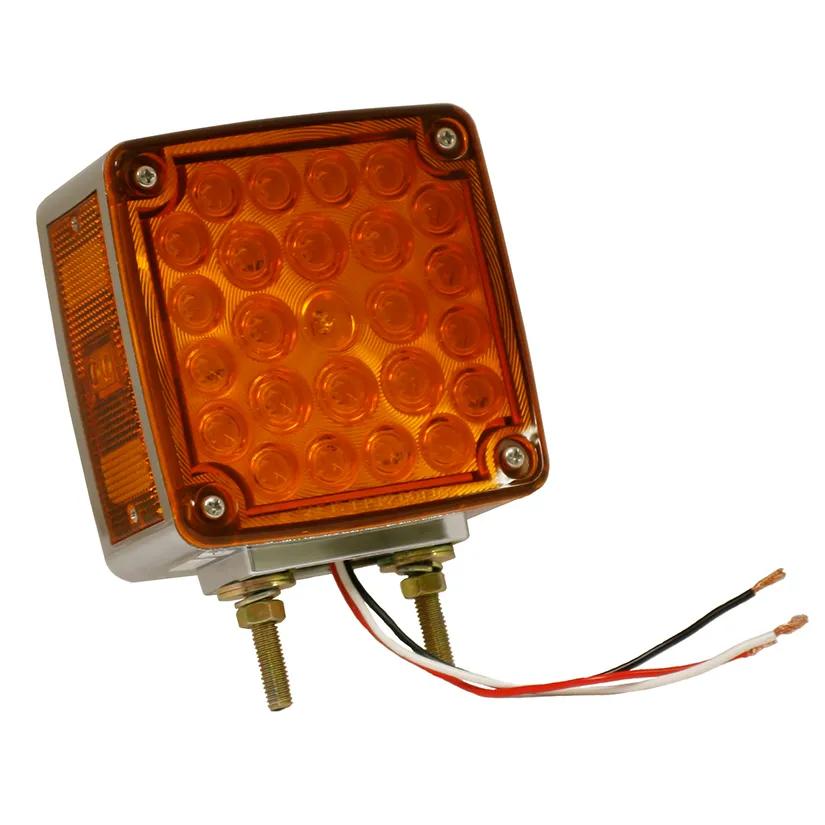

Stop/Tail/Turn Light, Double-Face Hi Count® LED, Red & Amber, Acrylic Lens, Square, Ring Terminal
#GROG5540
Product Overview
White finish with acrylic lens and ABS housing. Female pin terminations accept all popular plug-in connectors. Lower amp draw allows for use of more lamps and provides greater stopping distance.Stop Tail Turn Light, Double-Face, LED Bulb, Ring Terminal Connection Type, Stud Mounting, Chrome Housing, Red/Yellow Lens, Red, Amber Light Output, Acrylic Lens, ABS Housing, 0.19 to 78 A Current Rating, A, I, T, P, P2 Light Function, Hi Count®, Square, FMVSS 108 Standards, 12 V, 2 Years Warranty
Features & Benefits
- Diodes for bright illumination
- Attractive design with multiple diodes
- Includes reflex reflector for added safety
- Clearly labeled wiring instructions for hassle-free setup
- 25 diodes on either front or back with two diodes in the side marker
- 2-stud mounting bolts
- Attached three-wire harness
Specifications
| Bulb Type | LED |
| Connection Type | Ring Terminal |
| Finish | Chrome Plated |
| Lens Color | Red & Amber |
| Material | ABS/Acrylic |
| Mounting Type | Stud Mount |
| Shape | Square |
| Size | 4-1/2 in |
| Standards | FMVSS 108 |
| Type | Double-Face Stop/Tail/Turn Light |
| VMRS Code | 034-002-059 |
| Voltage Rating | 12V |
| Warranty | 2 Years |
| Candlepower | 50 |
| Current Rating | 0.19 amp to 0.78 amp |
| Light Function | A, I, T, P, P2 |
| Product Line | Hi Count® |
| Product Category | Stop Tail Turn Light |
Interchanges & Equivalent parts:
| M42333R |
| M42333Y |
| 27563 |
| 2758S1G |
| GRO G5540 |
| GROG5540 |
| ZBJDG5540 |
| 7376-G5540 |
| GRTG5540 |
| M42333R/Y |
| LL021509 |
| M42363R/Y-A |
| STL153ARDBB |
| STL153ARDBBP |
| 571LD25AR52R |
| 725256 |
| 1855D |
| 422287 |
| 422290 |
| 44349C |
| G5540 |
