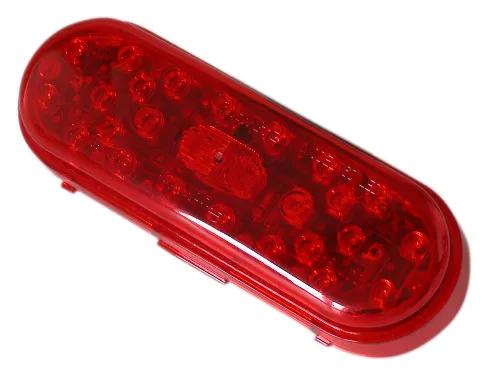

Stop/Tail/Turn Light, Red, Oval, 26 Diode, 60 Series, LED, Fit 'N Forget S.S., 12V
#TRL60250R
Product Overview
60 Series LED stop/turn/tail light in red oval design featuring 26 diodes for enhanced visibility. Constructed with polycarbonate lens and Fit 'N Forget stainless steel connection, operating at 12 volts.Stop Turn Tail Light, 26 Diode, LED Bulb, Fit 'N Forget S.S., Grommet, Polycarbonate, Red, 2.32 in H, 0.34 in L, Light Function: P2, I6, S2, T, 60 Series, Oval, 12 V, Warranty: Limited Lifetime, 6.5 in W
Features & Benefits
- Faster illumination offers significant safety benefit for following drivers to react quicker, resulting in average 3' reaction time advantage for every 10 mph
- Less Current Draw, Faster Illumination, No Filament.
- LED technology provides longer-lasting performance
- Faster illumination enhances visibility on the road
- No filament reduces risk of breakage and maintenance
- Universal fit for a wide range of vehicle applications
Specifications
| Ampères | 0,01 A à 0,37 A |
| Type d'ampoule | DEL |
| Bougie (cp) | 26 diodes |
| Type de connexion | Fit 'N Forget S.S. |
| Contient | Feu de stop, de position et de clignotant |
| Major actuel | 0,34 amp |
| Mineure actuelle | 0,04 amp |
| Profondeur | 1-5/8 po |
| Coquille de diamant (O/N) | Non |
| Fonction | I, S, T |
| Hauteur | 2-5/16 po |
| Trousse (O/N) | Non |
| Longueur | 6-1/2 po |
| Couleur des lentilles | Rouge |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Type de fixation | Oeillet |
| Type de support | Montage à oeillet |
| Nombre de câbles | 3 |
| Fiche #1 | PL-3, Femelle |
| Quantité | 5 |
| Réfléchissant (O/N) | Non |
| Forme | Ovale |
| Standard | FMVSS 18 |
| Standards | FMVSS 18 |
| Technologie | DEL |
| Type | Feu d'arrêt/arrière/direction |
| CUP | 735111021728 |
| Code VMRS | 034-002-013 |
| Volt | 12V |
| Tension nominale | 12 V |
| Garantie | Limitée à vie |
| Poids | 0,43 lb |
| Largeur | 6-1/2 po |
| Courant nominal | 0,01 A à 0,37 A |
| Fonction d'éclairage | P2, I6, S2, T |
| Gamme de produits | Série 60 |
| Catégorie de produit | Feu d'arrêt/direction/arrière |
Interchanges & Equivalent parts:
| 60250R3 |
| 841360250R3 |
| T60250R3 |
| HT50601783 |
| TL60250R3 |
| TLD60250R3 |
| TRU60250R |
| 6050 |
| G6002 |
| HB9019C |
| HB9025R |
| 1000-STT72RL |
| 127-63002 |
| 20448979 |
| 21056299 |
| 60250R-TL |
| 6464 |
| 81139 |
| 81710 |
| 820R-2 |
| 8413-60250R |
| LED2238-13R |
| LED2238-63R |
| LED960R |
| LIT60250R |
| M60100R |
| RC STT72RL |
| T60-RRHA-1 |
| T60-RRVA-1 |
| TL 60250R |
| TL 60250R |
| TL-60250R |
| TL60250R |
| TLD60250R |
| TLT 60250R |
| UB-LED2238R |
| 420R |
| 420R-3 |
| 539623 |
| 6464X |
| GRT53962 |
| GRTG6002 |
| LED60R |
| LED60R60 |
| LED60Y |
| LL012202 |
| M420R |
| M420R2 |
| M63100R |
| M63322R |
| PTL6056R |
| STT72RL |
| TKL60250R |
| WA22565R |
| WA53874 |
| TRL60250R3 |
| 310596 |
| P310510 |
| TGG6002 |
| M60100R3 |
| 2238CB12R16C |
| 17670 |
| 53962-3 |
