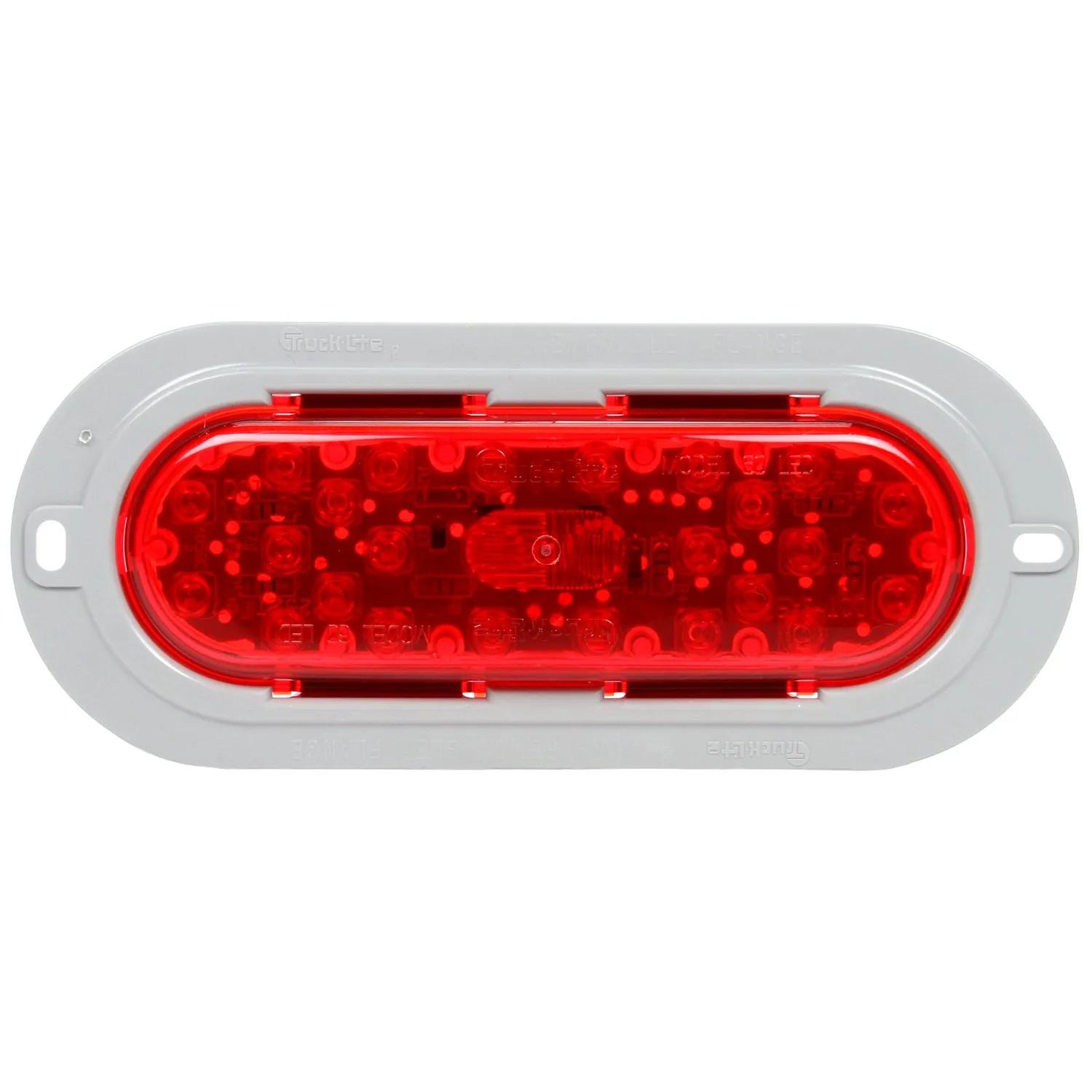

Stop/Tail/Turn Light, Red, Oval
#TRL60052R
Product Overview
60 Series, LED, Red, Oval, 26 Diode, Stop/Turn/Tail, Gray Flange Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit
Features & Benefits
- Universal fit for versatile applications
- Faster illumination for enhanced visibility
- No filament design reduces the risk of breakage
- LED technology ensures long-lasting performance
- Less current draw for improved energy efficiency
- Sealed construction protects against moisture and debris
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.34 amp |
| Current Minor | 0.04 amp |
| Depth | 1-5/8 in (4.14 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-5/16 in (8.41 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 7-7/8 in (20.02 cm) |
| Lens Material | Polycarbonate |
| Material | ABS |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | PL-3, Female |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 7-7/8 in (20.02 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 4192732 |
| 5259266830 |
| 60052R |
| 53592 |
| 65091R |
| 841360052R |
| 705201920 |
| 94890137 |
| V423KR2 |
| HT50601786 |
| TL60052R |
| TLD60052R |
| TRU60052R |
| LED8777RX |
| 60052R1 |
| 60100 |
| 60102 |
| 60200 |
| 60202 |
| 61100 |
| 61102 |
| 61200 |
| 8413-60052R |
| LIT60052R |
| TL 60052R |
| TL 60052R |
| V423KR |
| 53592GR0 |
| GRT53592 |
| GRT53972 |
| TKL60052R |
| 66830 |
| 812400 |
