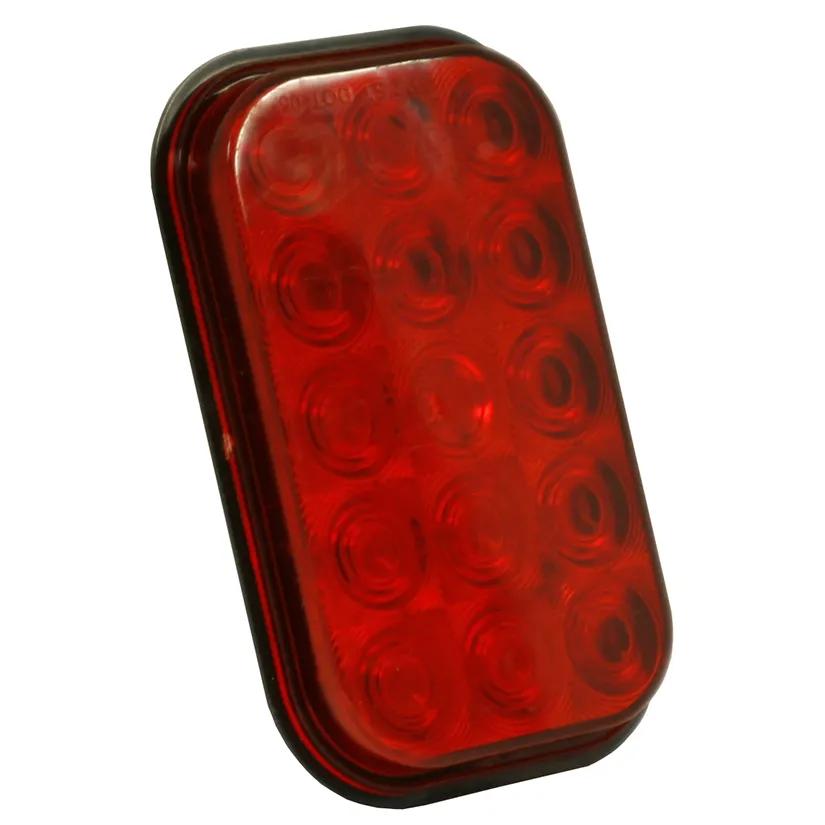

Stop/Tail/Turn Light, Red, Rectangular
#GROG4502
Product Overview
Vertical Or Horizontal Mount, Hermetically Sealed, Standard Femal Pin For Easy Retrofits, Potted Circuit Board, LED Instant On
Features & Benefits
- Vertical or horizontal mount
- LED instant-on feature provides early stop warning for trailing motorists
- 15 Diodes
- Hermetically sealed polycarbonate lens and body
- Meets photometric requirements for front, park and turn
- Potted for total circuit-board protection against vibration and corrosion
- Standard female pin connection provides easy retrofits
Specifications
| Amps | 0.07 amp to 0.5 amp |
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Contient | Stop/Tail/Turn Light |
| Major actuel | 0.25 amp |
| Mineure actuelle | 0.01 amp |
| Profondeur | 1-7/16 in (3.66 cm) |
| Coquille de diamant (O/N) | Yes |
| Fonction | I, P2, S, T |
| Hauteur | 5-5/16 in (13.49 cm) |
| Trousse (O/N) | No |
| Longueur | 5-19/64 in (13.46 cm) |
| Matériau de la lentille | Acrylic |
| Type de support | Grommet Mount |
| Nombre de câbles | 3 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | PL-3, Female |
| Réfléchissant (O/N) | No |
| Séries | 45 Series |
| Forme | Rectangular |
| Standard | FMVSS 108 |
| Technologie | LED |
| Type | Stop/Tail/Turn Light |
| Volt | 12V |
| Largeur | 3-13/32 in (8.66 cm) |
| Calibre de(s) fil(s) | 18 ga |
Interchanges & Equivalent parts:
| 45258R |
| M42201R |
| M42213R |
| 4550 |
| HB9018R |
| 45072R |
| 45251R |
| 45262R |
| 45272R |
| 4550S1G |
| G4502GR0 |
| GRO G4502 |
| GROG4502 |
| ZBJDG4502 |
| 7376-G4502 |
| LED4060-24R |
| TKL4550 |
| 850R-1 |
| 850R-1P |
| STL33RB |
| STL33RBP |
| STL35RBP |
| 725397 |
| 725399 |
| 422309 |
| 422311 |
| G4502 |
| 5864C |
| 5964C |
| 5968C |
| 5969C |
| 40241R |
