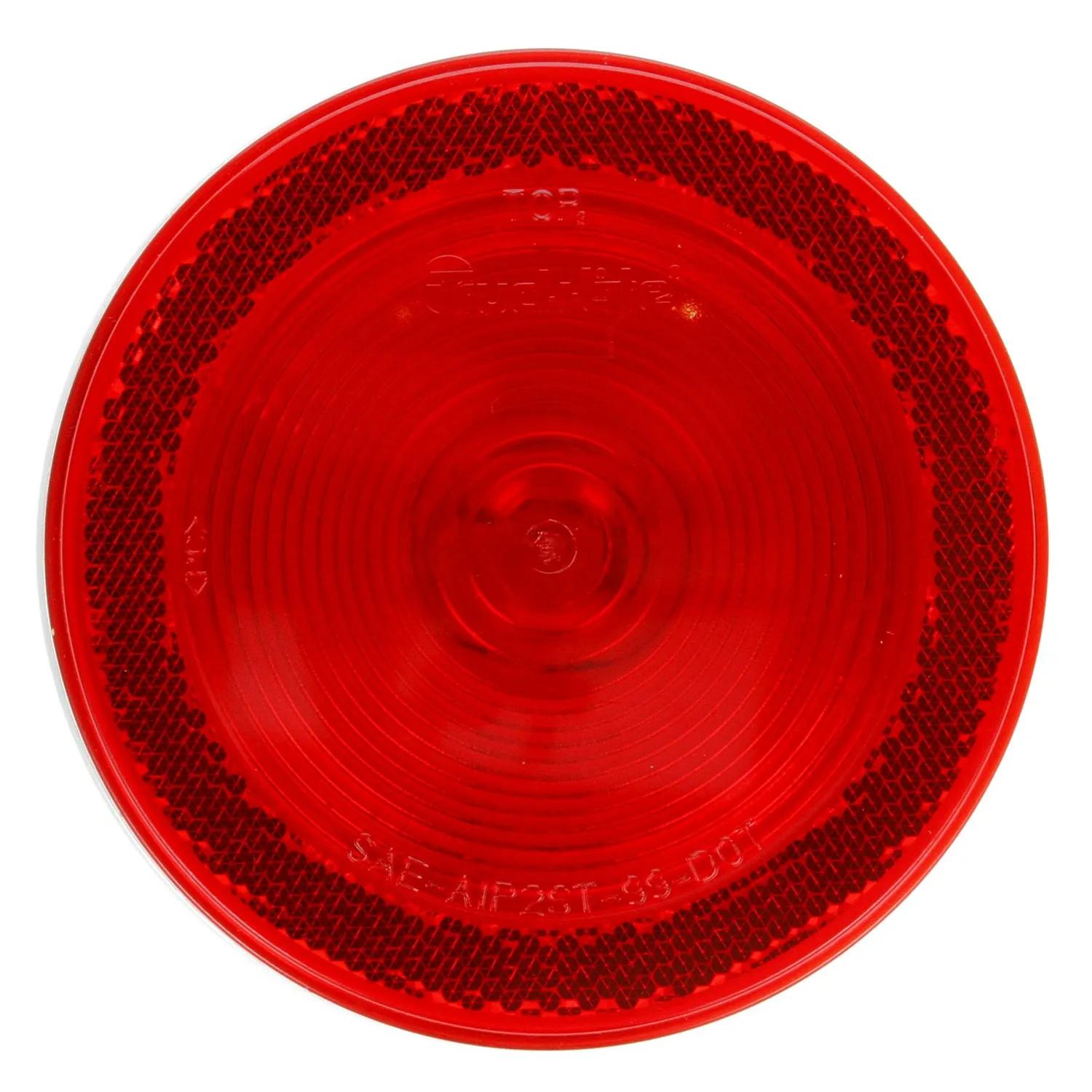

Stop/Tail/Turn Light, Red, Round
Product Overview
Specifications
| Amps | 0.48 amp to 2.1 amp |
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Double Contact |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-7/64 in (5.36 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94993 |
| Function | A, I, P2, S, T |
| Height | 4-5/16 in (10.95 cm) |
| Housing Color | Black |
| Includes | Gasket |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 3 |
| Lamp Type | Sealed |
| Length | 4-19/64 in (10.92 cm) |
| Lens Height | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4-5/16 in (10.95 cm) |
| Material | PVC |
| Mounting Type | Grommet |
| Mount Type | Gel-Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3 |
| Plug Side Two | Stripped End |
| Product Type | Stop/Tail/Turn Light |
| Reflectorized (Y/N) | Yes |
| Regulations | FMVSS 108 |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12 V |
| Weight | 0.58 lb (0.26 kg) |
| Width | 4-5/16 in (10.95 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
5120298001, 4220380, 102790, 52672, 427KR, 12013, 46002202, 878070254, 910121, 77040243, 91740, 841340015R, 40015R, 705104, 70510499, 67000, 810000326, HT50602553, TL40015R, TLD40015R, TLP27064, TRU40015R, MTL04001500R, F0HS13404AA, F311006, 12367746, 132257, G1075700, 40015R, TL40015R, MTL04001500R, 40015R, 40015R3, 8413-40015R, LIT40015R, LT41KR, MTL04001500R, TL 40015R, TL 40015R, TL-40015R, TL40015R, TLD40015R, TRU40015R, 427KR, GRT52672, GRT91740, KTR5400R, TKL40015R, G1075700, TL40015R, MTL04001500R, 40015R, TRU40015R, 67000, 52672, F311006, F0HS13404AA, 46002202, 5120298001, 427KR, 4220380, 40015R, HT50602553, G1075700, MTL04001500R, TL40015R, TLP27064, TLD40015R, 102790, 12367746, 132257, 910121, 841340015R, 878070254, 12013, 705104, 70510499, 810000326, 77040243, 40015R, G1075700, 91740, 40015R3, TLD40015R, TRU40015R, MTL04001500R, TL-40015R, TL 40015R, TL 40015R, TL40015R, 8413-40015R, LIT40015R, LT41KR, KTR5400R, GRT91740, TKL40015R, GRT52672, 427KR
