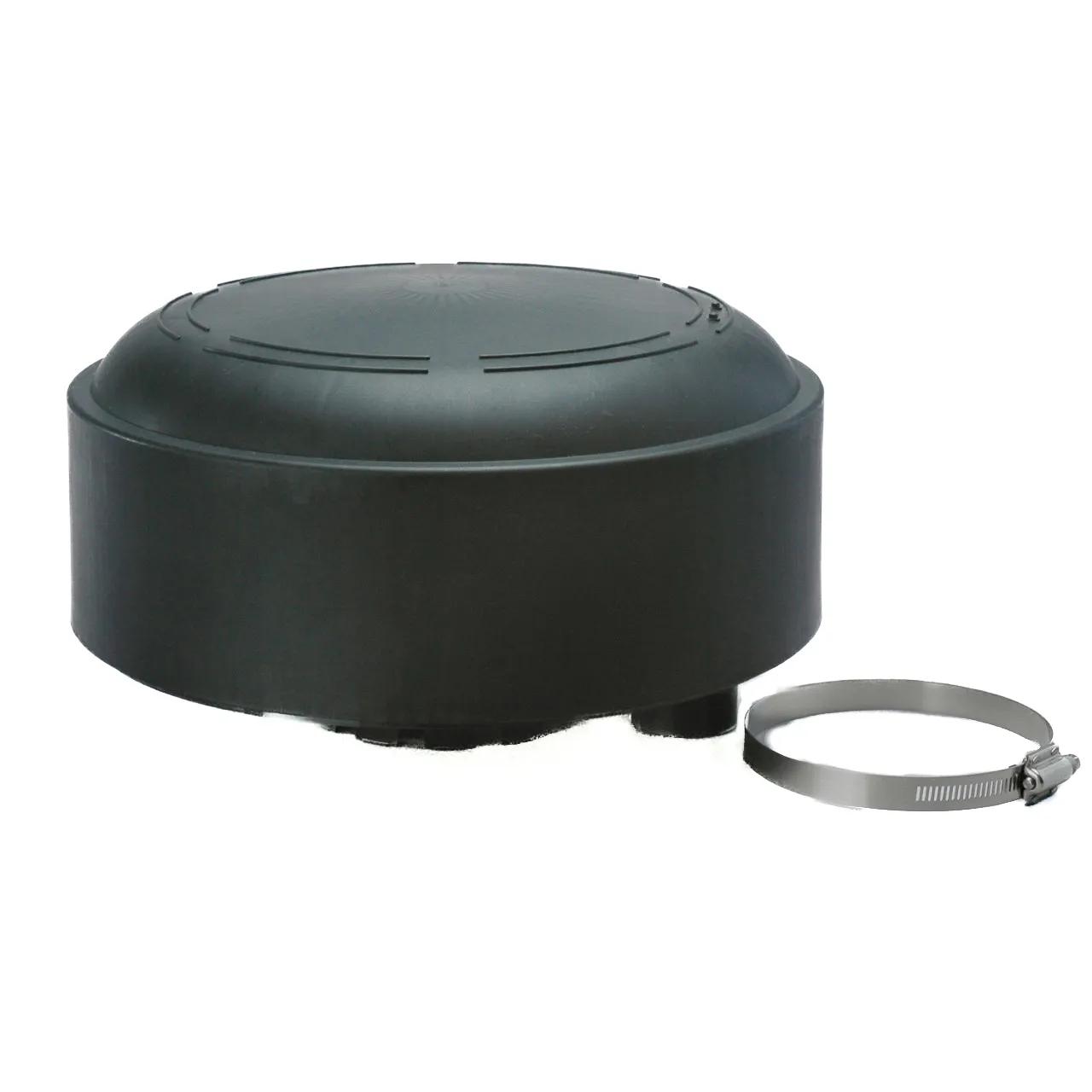

STRATACAP AIR CLEANER
#DONH002700
Features & Benefits
- Strata Cap pre-cleaners extend primary air filter life, boost system efficiency and extend engine life in heavy dust environments
- The scavenged Strata Cap pre-cleaner removes up to 96% of incoming contaminant per ISO 5011/SAE J726
- Offers the highest efficiency rating of any Donaldson self-contained pre-cleaner
Specifications
| Diameter | 14 in (355.6 mm) |
| Diameter Range | 13 to 13.99 in |
| Efficiency | 96 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Height | 8 in (203.2 mm) |
| Outer Diameter | 5.08 in (129 mm) |
| Rated Flow High Range | 600 cfm (17 m³/min) |
| Restriction HR | 5,99 in H2O (152 mm H2O) |
| Restriction LR | 0,98 in H2O (24,9 mm H2O) |
Interchanges & Equivalent parts:
| H002700 |
