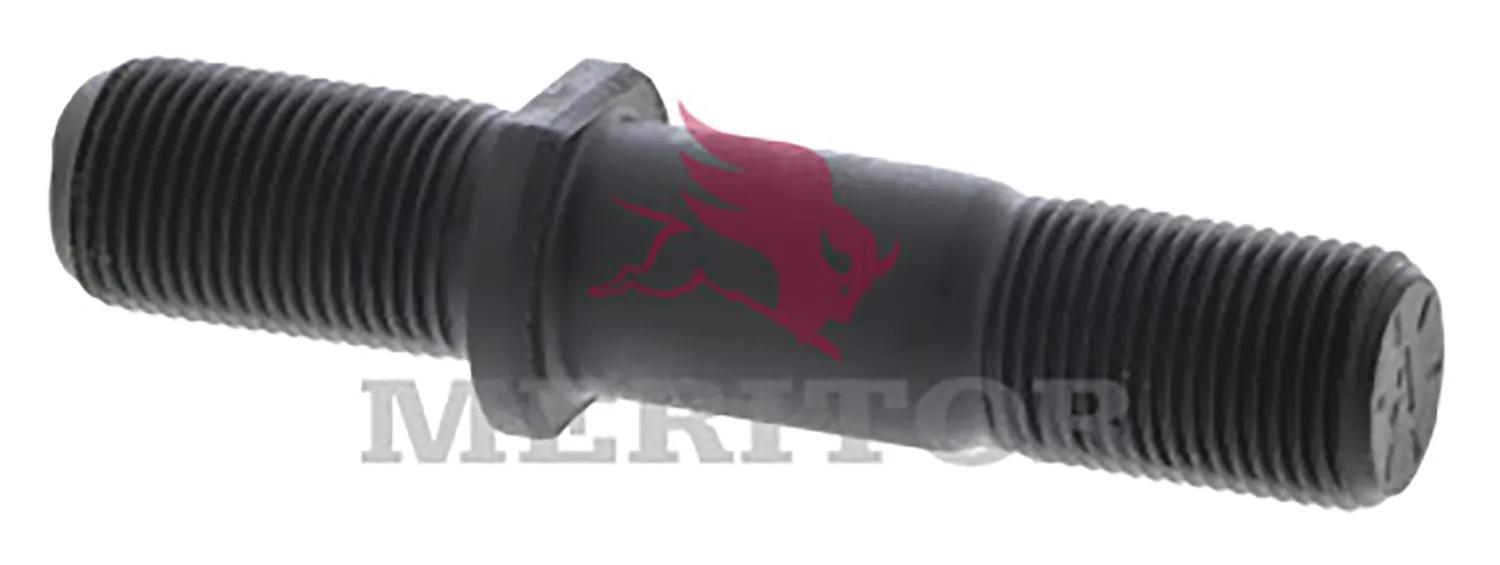

Stud, Overall Length: 3-31/32 in, LH
Product Overview
Specifications
| Application | For Aluminum Hubs |
| Body Diameter | 25/32 in (1.99 cm) |
| Collar Across Clip (in.) | 15/16 in (2.39 cm) |
| Collar Diameter (in.) | 1-1/8 in (2.86 cm) |
| Collar Style | Clipped |
| Collar Length | 7/32 in (0.56 cm) |
| Diameter | 25/32 in (1.99 cm) |
| Height | 3-29/64 in (8.78 cm) |
| Hub End Thread Diameter (in.) | 3/4-16 |
| Length | 3-31/32 in (10.09 cm) |
| Quantity | 10 |
| Right or Left Hand Threads | LH |
| Serration | Serrated |
| Type | Shoulder |
| Weight | 5.16 lbs (2.35 kg) |
| Wheel End Thread | 3/4-16 |
| Width | 5-3/32 in (12.94 cm) |
Interchanges & Equivalent parts:
13-1004L, 50-1006L, E-5561L, M53, U73X1569, W43, X1569, 1541004L, 20X53, 3946410, 501006L, 610045, 67230, 8235-R005561L, 9628 R005561 L, ATIR005561L, KB5561L, MERR005561L, NL5207, OK3991, R005561L-RI, TDA R005561L, TDAR005561L, TP832L, TWDR005561L, 13991, 18AX65, 244627, 301110-4L, 475718, 534773, 863494, M-53, TUAA1119A, W-43, WA1235, WE5561L, WEB139913, X-1569, E-5561L, U73X1569, X1569, W43, 13-1004L, M53, 50-1006L, 1541004L, KB5561L, 9628 R005561 L, 610045, OK3991, R005561L-RI, TWDR005561L, TDAR005561L, 3946410, NL5207, 501006L, MERR005561L, TP832L, TDA R005561L, ATIR005561L, 20X53, 8235-R005561L, 67230, X-1569, 244627, WE5561L, 18AX65, WA1235, W-43, 534773, M-53, 863494, 13991, 475718, TUAA1119A, 301110-4L, WEB139913, WA1235, 180202
