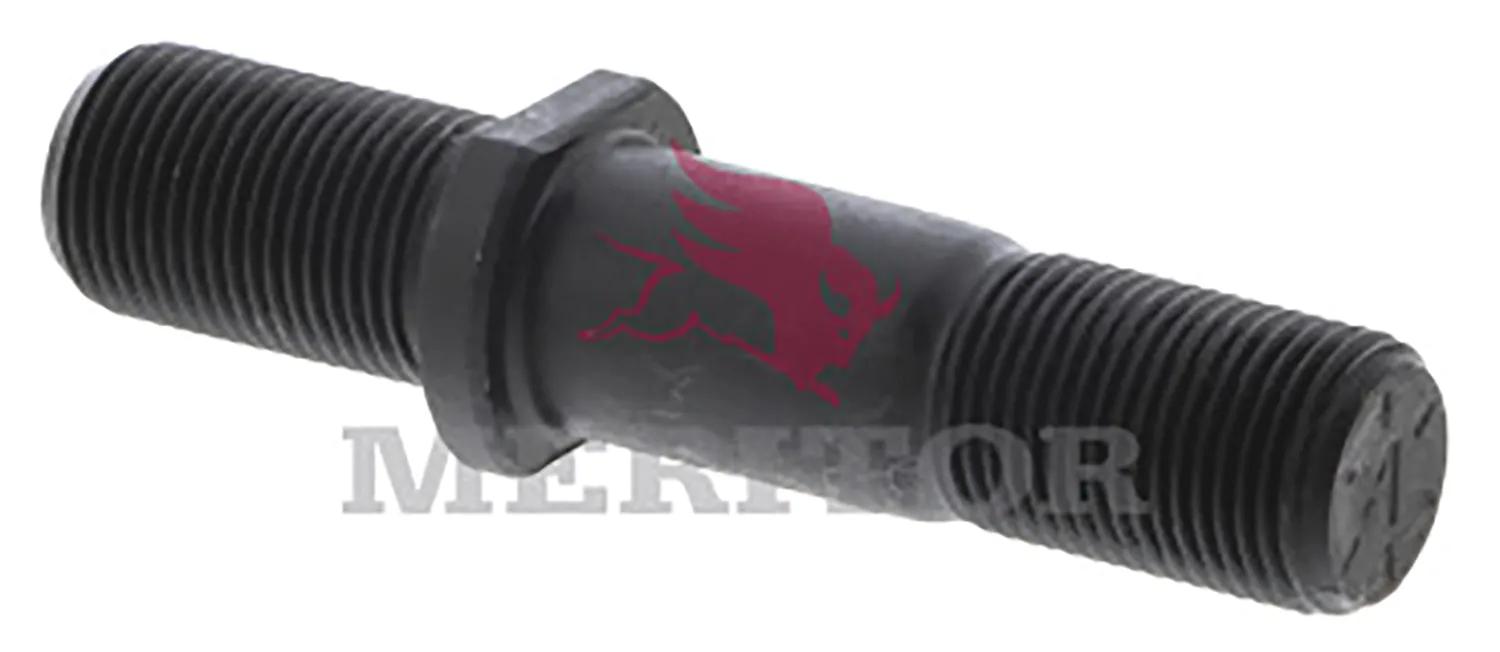

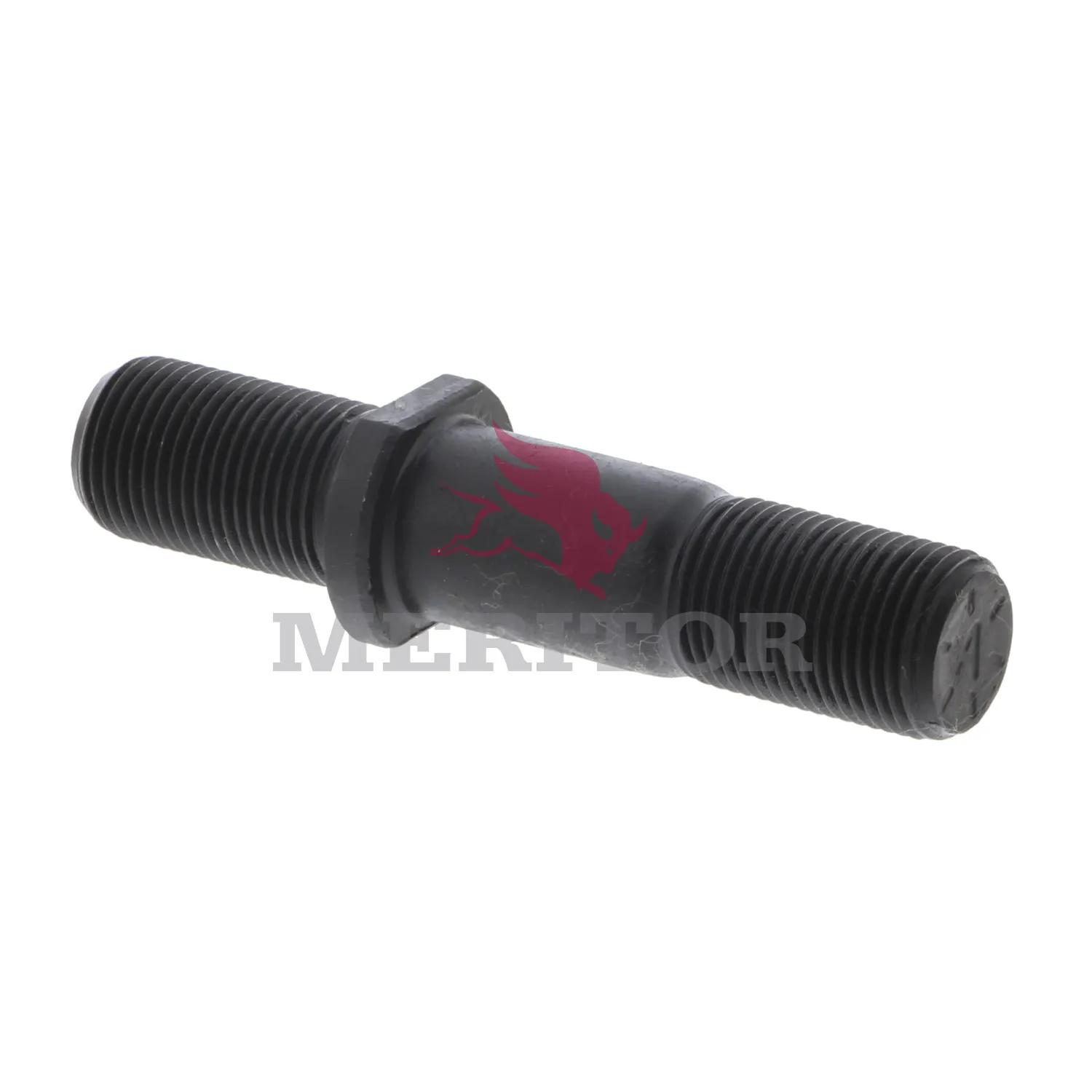

Stud, Overall Length: 3-31/32 in, RH
#ROCR005561R
Product Overview
We Offer a Wide Variety of Wheel Attaching Hardware Sure to Meet Your Fleets Ever Changing Needs.
Features & Benefits
- Engineered for ease of maintenance, extended uptime, and increased environmental impact
- Compatible with superfast gear ratios for downspeeding and OEM wheel ends and axles
- Supports a wide range of axle configurations for customization and OEM packaging flexibility
- Proven robust and lightweight design helps improve efficiency and lower fuel consumption
Specifications
| Body Diameter | 25/32 in (1.98 cm) |
| Collar Across Clip (in.) | 15/16 in (2.39 cm) |
| Collar Diameter (in.) | 1-1/8 in (2.86 cm) |
| Collar Style | Clipped |
| Collar Length | 7/32 in (0.56 cm) |
| Height | 3-29/64 in (8.78 cm) |
| Hub End Thread Diameter (in.) | 3/4-16 |
| Length | 3-31/32 in (10.08 cm) |
| Package Quantity | 10 |
| Right or Left Hand Threads | RH |
| Serration | Serrated |
| Type | Shoulder |
| Wheel End Thread | 3/4-16 |
Interchanges & Equivalent parts:
| 13-1004R |
| 50-1006R |
| E-5561R |
| E5561R |
| M52 |
| U73X1568 |
| W42 |
| X1568 |
| 3946406 |
| 501006R |
| 67229 |
| 8235-R005561R |
| 9628 R005561 R |
| ATIR005561R |
| KB5561R |
| NL5206 |
| OK3990 |
| R005561R-RI |
| TDA R005561R |
| TDAR005561R |
| TWDR005561R |
| 13991 |
| 1541004R |
| 18AX64 |
| 244626 |
| 301110-4R |
| 475719 |
| 534772 |
| 610044 |
| 6722967230 |
| 863493 |
| M-52 |
| TP832R |
| TUAA1118A |
| W-42 |
| WA1234 |
| WE5561R |
| WEB139902 |
| X-1568 |
| 180201 |
| R005561L |
