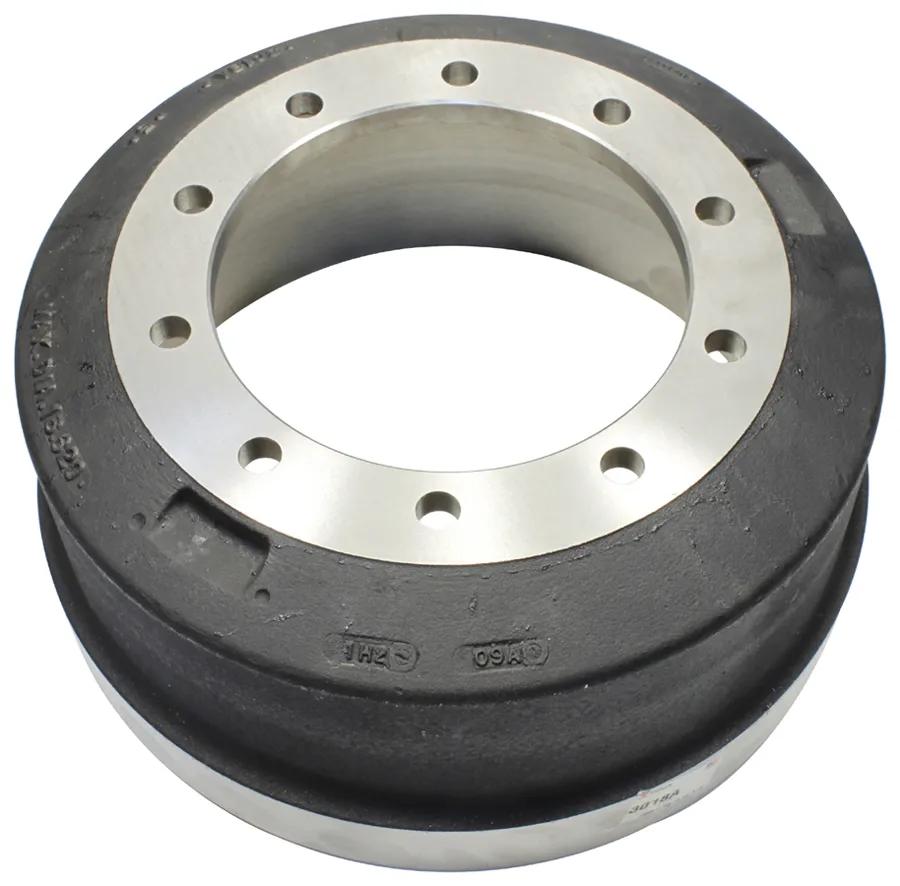

Brake Drum, 16-1/2 in x 7 in, 10 holes, (113 lb)
#GUN3018A
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
Aftermarket Status | Active |
Axle Location | Trailer Axle |
Balanced or Unbalanced | Unbalanced |
Bolt Circle Diameter | 11.25 |
Bolt Circle Diameter (in.) | .81 in. |
Bolt Hole Size | 0.81 |
Brake Size | 16.50x7.00 |
Brake Surface Diameter | 16.50 in. |
Brake Surface Width | 7.50 in. |
Brake Surface Width (E) | 7.5 |
Drum Mount | Inboard |
Drum Type | ABA |
Dust Shield Recess Depth (C) | 0.78 |
Dust Shield Recess Diameter (B) | 17.64 |
Finished Weight | 113 lb |
Inside Finished Diameter (O) | 12.76 |
Maximum Wear Diameter | 16.62 |
Mounting Flange Diameter (F) | 13.5 |
Mounting Flange Thickness (L) | 0.69 |
Number of Bolt Holes | 10 |
Outside Sidewall Diameter (M) | 17.76 |
Overall Depth | 8.74 in. |
Overall Depth (G) | 8.74 |
Overall Diameter (A) | 18.88 |
Packaging | Individual / Bulk |
Pilot Diameter | 9.50 in. |
Sidewall Offset (N) | 1.4 |
Spoke, Disc or Spoke/Disc | Spoke/Disc |
Squealer Band Width (K) | 2.28 |
Wheel Type | Spoke/Disc |
