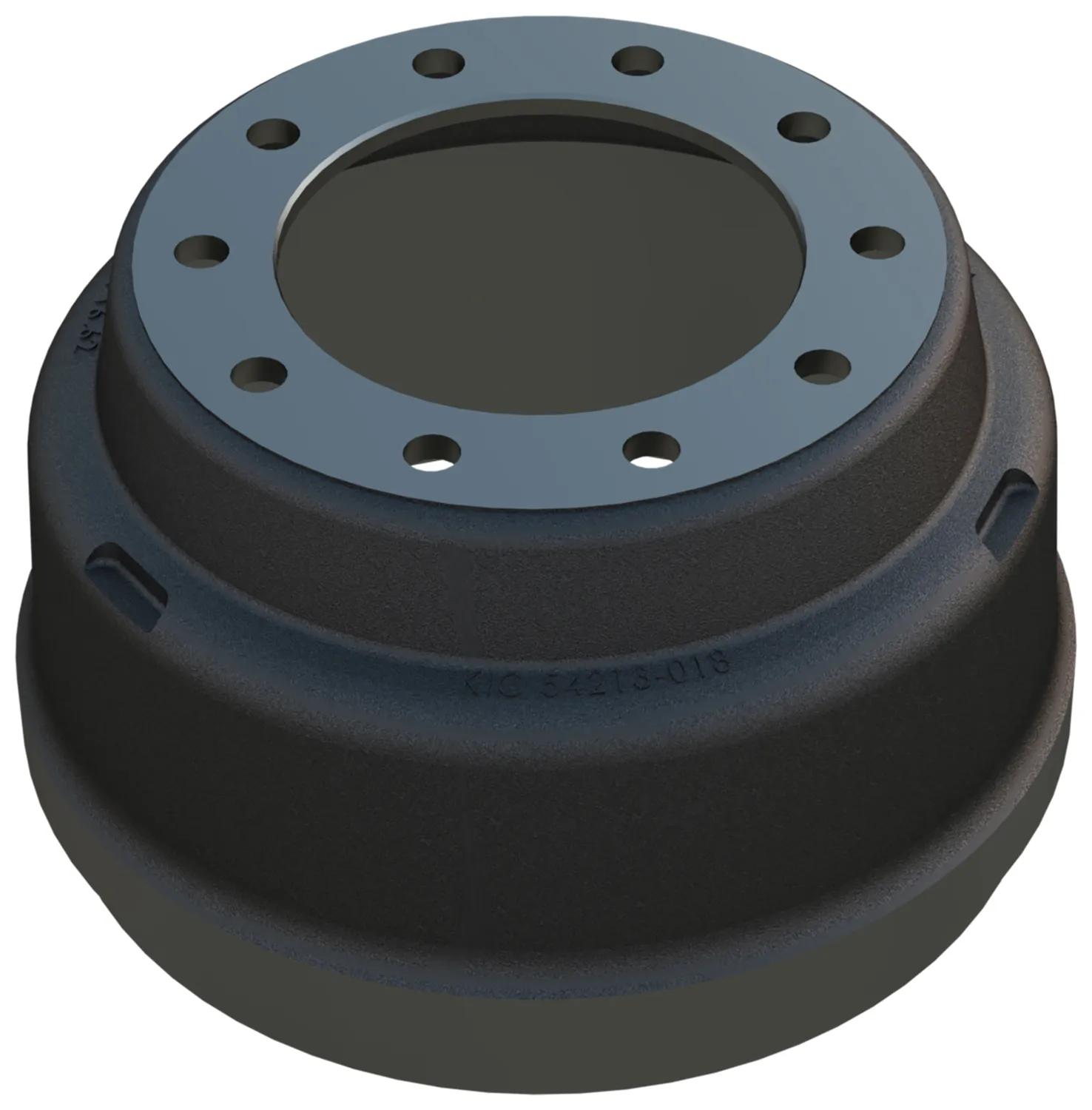

Brake Drum, 16-1/2 in x 7 in, 10 holes, (114 lb)

#KIC54213-018

Specifications

Back Plate Thickness	1/2 in
Bolt Circle Diameter	11-1/4 in
Bolt Hole (Number)	10
Brake Shoe Width	7 in
Brake Size	16-1/2 in x 7 in
Brake Surface Diameter	16-1/2 in
Brake Surface Flat	6 in (15.24 cm)
Brake Surface Width	7-13/32 in
Drum Mounting	Outboard
Drum Mount Type	Outboard
Drum Type	BEA
Dust Shield Recess Depth (C)	41/64 in
Dust Shield Recess Diameter (B)	17-7/8 in
Hole Size	1 in
Maximum Diameter	16-5/8 in
Overall Depth	11-3/16 in
Overall Diameter	18-11/16 in
Pilot Diameter	8-25/32 in (22.31 cm)
Sidewall Offset (N)	3-55/64 in
Squealer Band Width (K)	2 in
Type	Q
VMRS Code	013-017-006
Weight	111 to 115 lbs
Weight (lbs)	52.32 kg (114 lb)
Width	7 in
