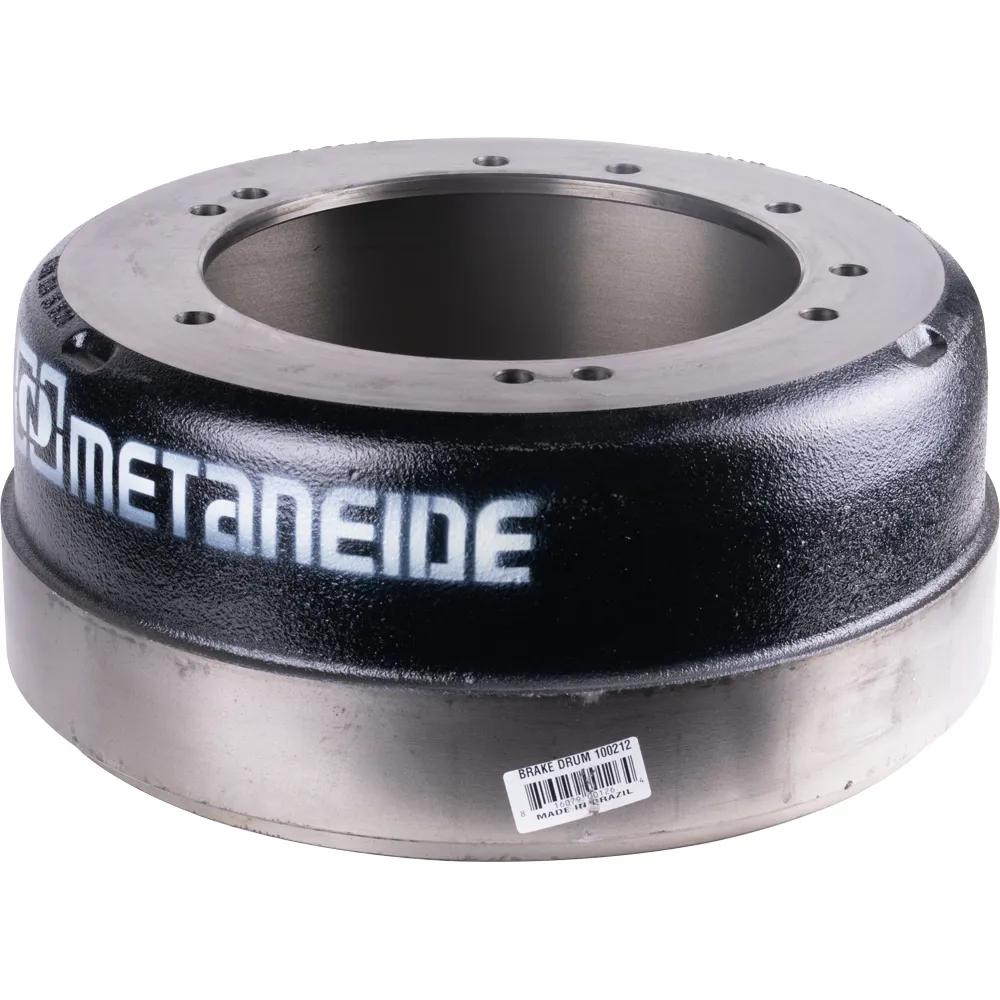

Tambour de frein, 16-1/2 po x 7 po, 6 holes, (108 lb)
#DRMX60481
Sommaire du produit
Ce tambour de frein 16.5 x 7 pouces est conçu pour les essieux arrière Mack et les camions. Il dispose de 6 trous de boulons, d'un design interne et d'une construction en fonte durable pour des performances de freinage fiables.
Caractéristiques et avantages
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
Spécifications
| Application | Mack Rear Axles. Truck |
| Back Plate Thickness | 13/32 in (1.04 cm) |
| Bolt Circle Diameter | 12-3/4 in (32.39 cm) |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-19/64 in (18.54 cm) |
| Drum Mounting | Inboard |
| Drum Type | AAA |
| Dust Shield Recess Depth (C) | 21/32 in (1.67 cm) |
| Dust Shield Recess Diameter (B) | 17-1/2 in (44.45 cm) |
| Hole Size | 21/32 in (1.67 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 8-13/16 in (22.39 cm) |
| Diamètre total | 18-7/8 in (47.95 cm) |
| Diamètre du pilote | 11 in (27.94 cm) |
| Largeur de bande sonore (K) | 2-3/32 in (5.32 cm) |
| Type | Cast |
| Code VMRS | 013-017-006 |
| Poids | 106 to 110 lbs |
| Poids (lb) | 49.57 kg (108 lb) |
| Largeur | 7 in (17.78 cm) |
Interchanges et pièces équivalentes:
| U00X60481S |
| 100212 |
| 120743 |
| 122600 |
| 2765 |
| 68897 |
| 68897F |
| 8656 |
| 8656X |
| U00X60481 |
| X60481S |
| M10982 |
| M10982E |
| 13120743002 |
