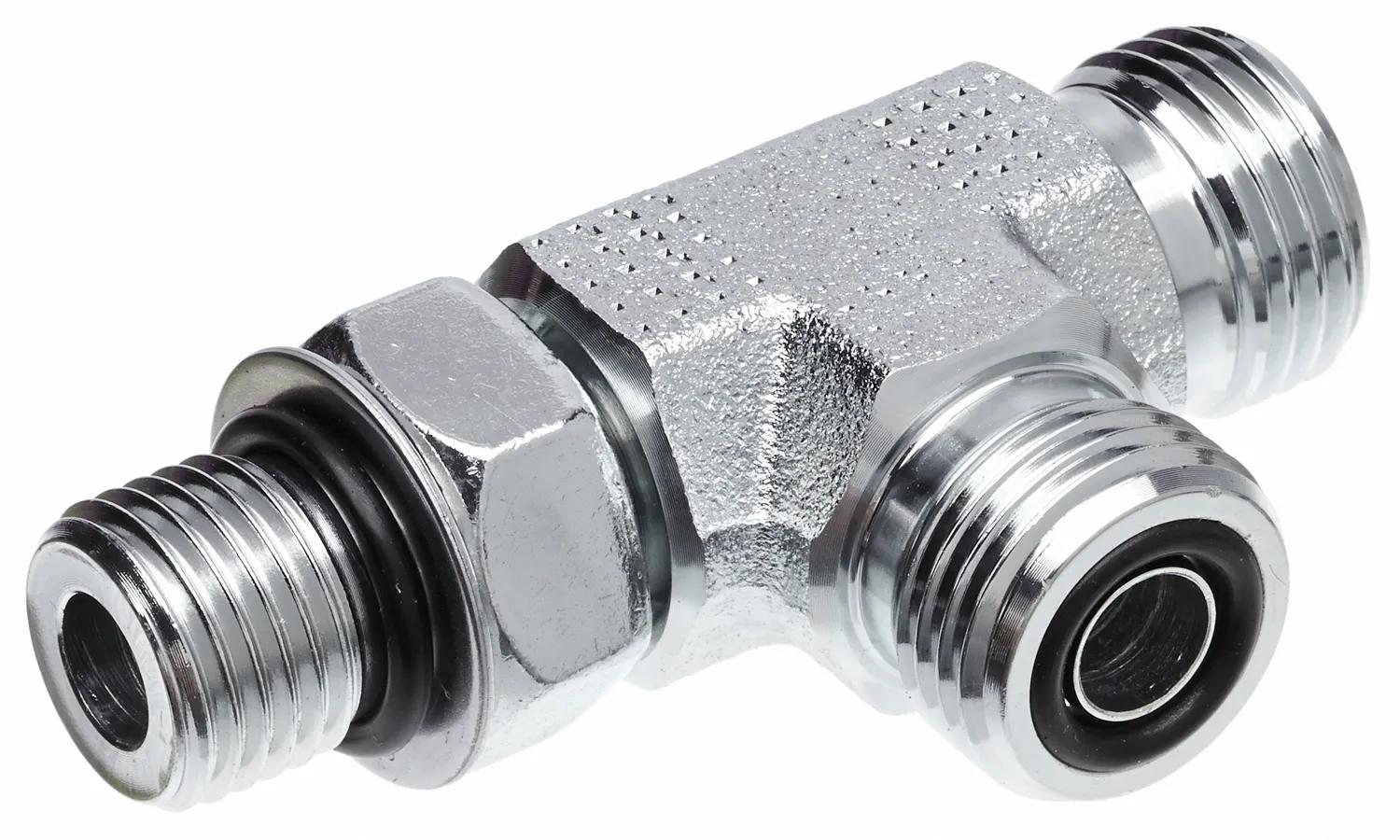

Tee Fitting, 8MFFOR-8MB-8MFFOR
#GATG60821-0808
Product Overview
Gates SAE to SAE Adapter Line Offers Full Coverage w/ Sizes From 1/8 in. to 2 in. in the Most Popular Thread Configurations.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- A Problem Solver When Required Coupling Thread Styles Might Not Be Available. Caps & Plugs Included.
Specifications
| Type d'adaptateur | SAE à SAE |
| Height | 9 po (22,86 cm) |
| Industrial Description | 8MFFOR-8MB-8MFFOR |
| Length | 9-1/4 po (23,5 cm) |
| Note | Pour une utilisation jusqu'à une pression de service maximale SAE 100R2 |
| OEM Part # | 8MFFOR-8MB-8MFFOR/G60821-0808 |
| Product Number | 725931465 |
| Thread | 13/16 po-16 |
| Type | Joint torique mâle à face plate vers bossage de joint torique mâle vers joint torique mâle à face plate - T |
| Width | 9-1/4 po (23,5 cm) |
Interchanges & Equivalent parts:
| G60821-0808 |
| 725931465 |
