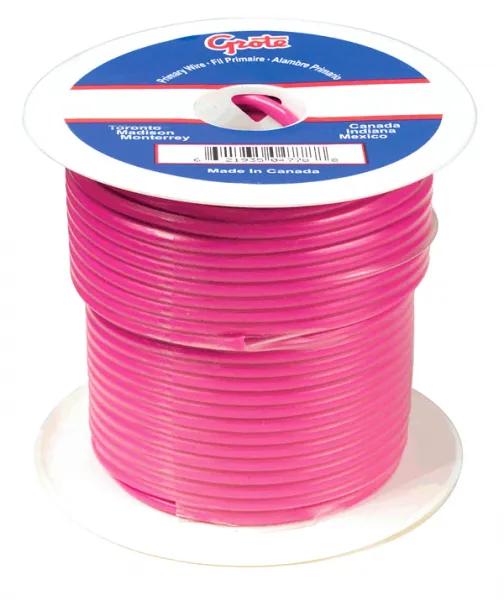

Thermoplastic Wire, General Purpose, Pink, Copper Conductor, PVC Insulation, PVC Jacket
#GRO87-8514
Product Overview
Grote offers 100% pure copper general purpose thermoplastic wire. Available in over 9 colors, on spools ranging from 25 to 1000 ft, and in a variety of gauges including 6, 8, 10, 12, 14, 16, 18, 20 and 22.Thermoplastic Wire, General Purpose, Pink, Copper Conductor, PVC Insulation, PVC Jacket, 16 GA, 19 Strand, 0.103 in OD, SAE J1128, -40 to 80 °C, 60 V, Warranty: 1 Year, 500 ft Length, For Automotive, Truck, Marine
Features & Benefits
- Temperature rating -40 to 80 °C
- Available in 25, 100 ft spools, 1000 ft also available
- Single conductor PVC jacket resists grease, oil, gasoline, acids, other abrasive materials
- Meets SAE code J1128 specifications
- Used for automotive, truck, marine applications
Specifications
| Color | Pink |
| Gauge | 16 GA |
| Length | 500 ft |
| Type | General Purpose |
| VMRS Code | 053-017-003 |
| Application | Automotive, Truck, Marine |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Number of Strands | 19 |
| Outside Diameter | 0.103 in |
| Standards | SAE J1128 |
| Temperature Rating | -40 to 80 °C |
| Voltage Rating | 60 V |
| Warranty | 1 Year |
| Manufacturer Part Number | 87-8514 |
| Product Category | Thermoplastic Wire |
| Quantity | 1 |
